Main Relay (Computer/Fuel System): Locations

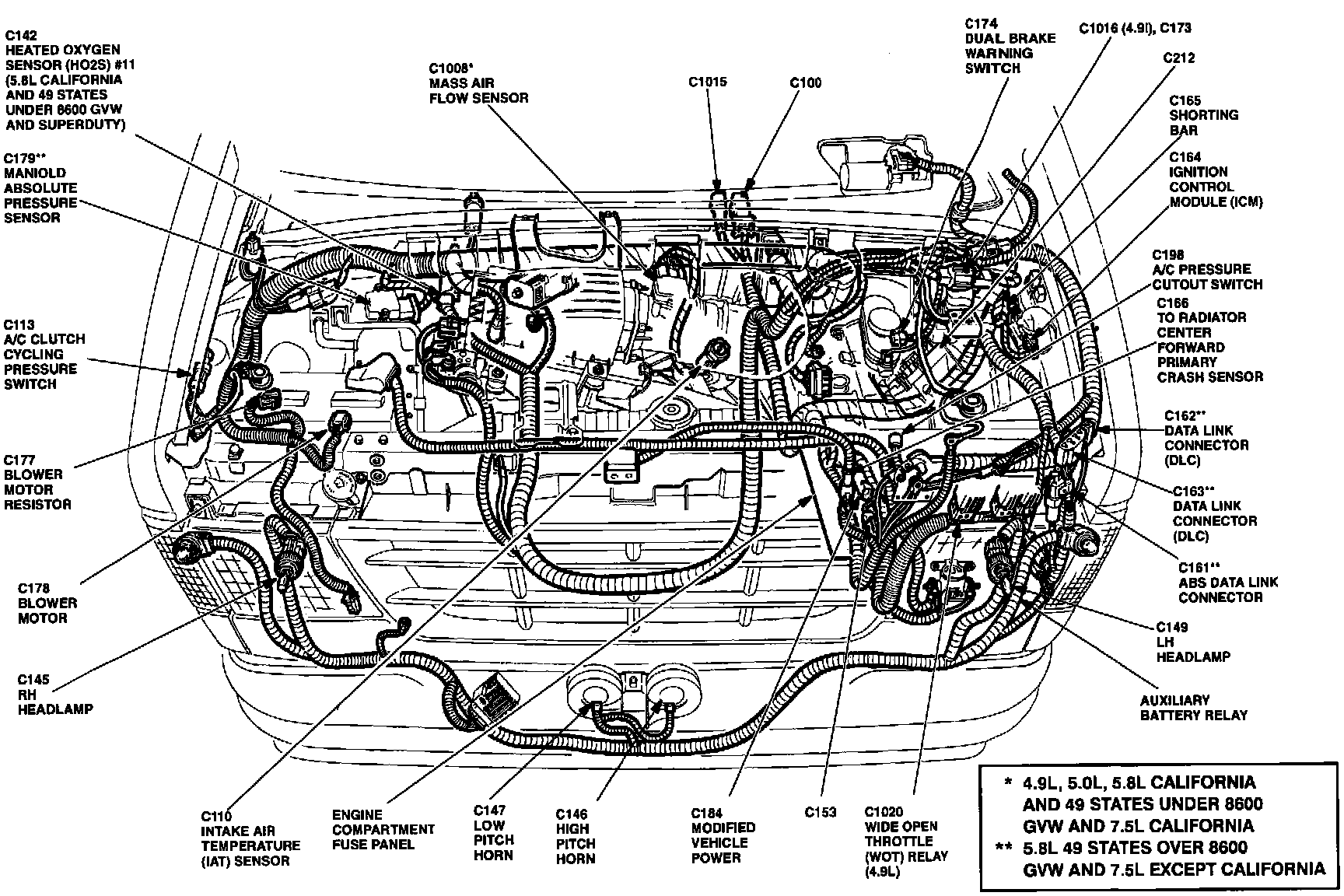

Engine Compartment View-SFI Gas (Shown) MFI Gas (Typical):

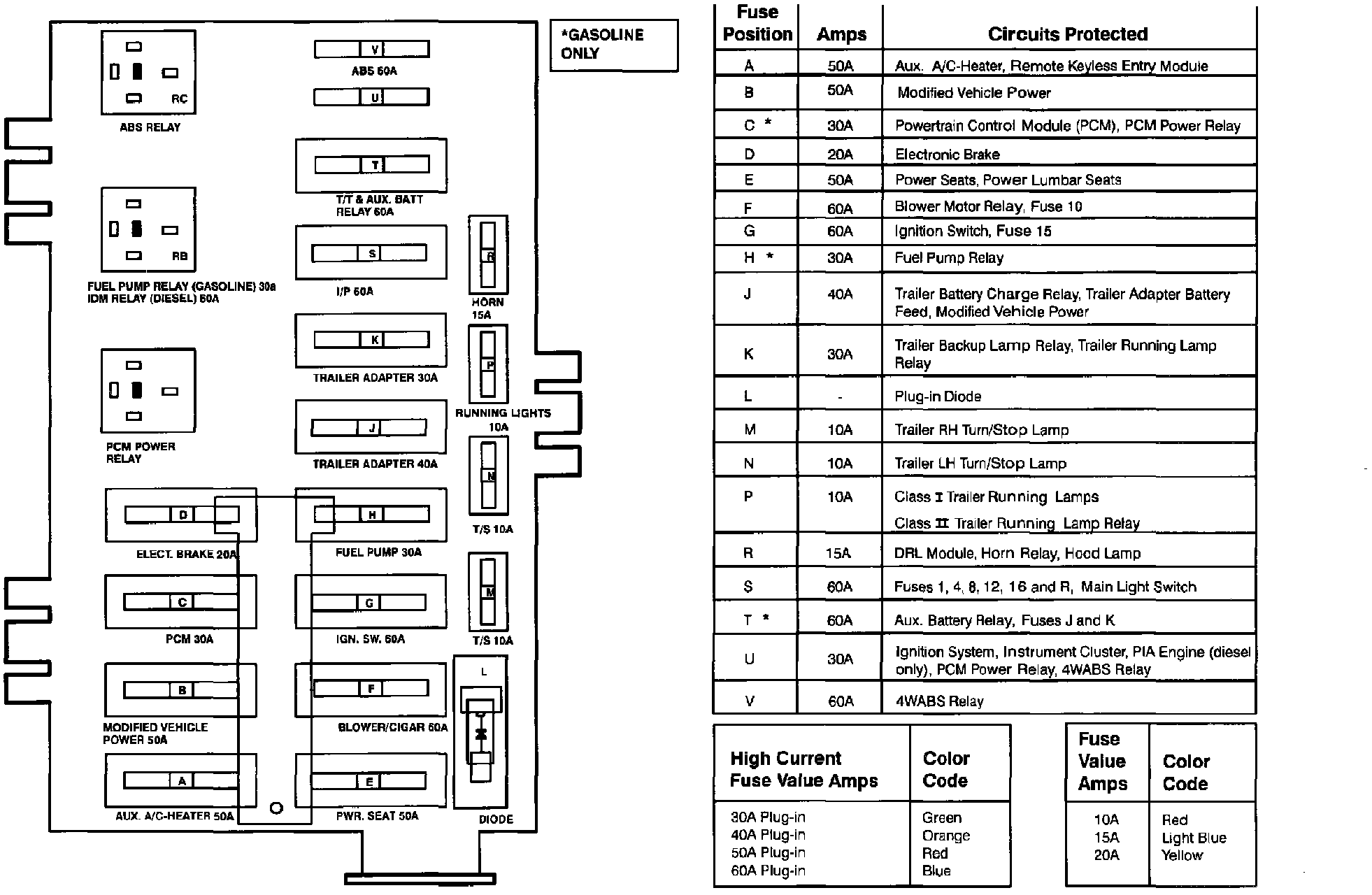

Engine Compartment Fuse Panel:





The PCM Power Relay is located in the engine compartment fuse panel, which is located at the LH side of the engine compartment.
