Pressure Feedback Exhaust Sensor: Service and Repair

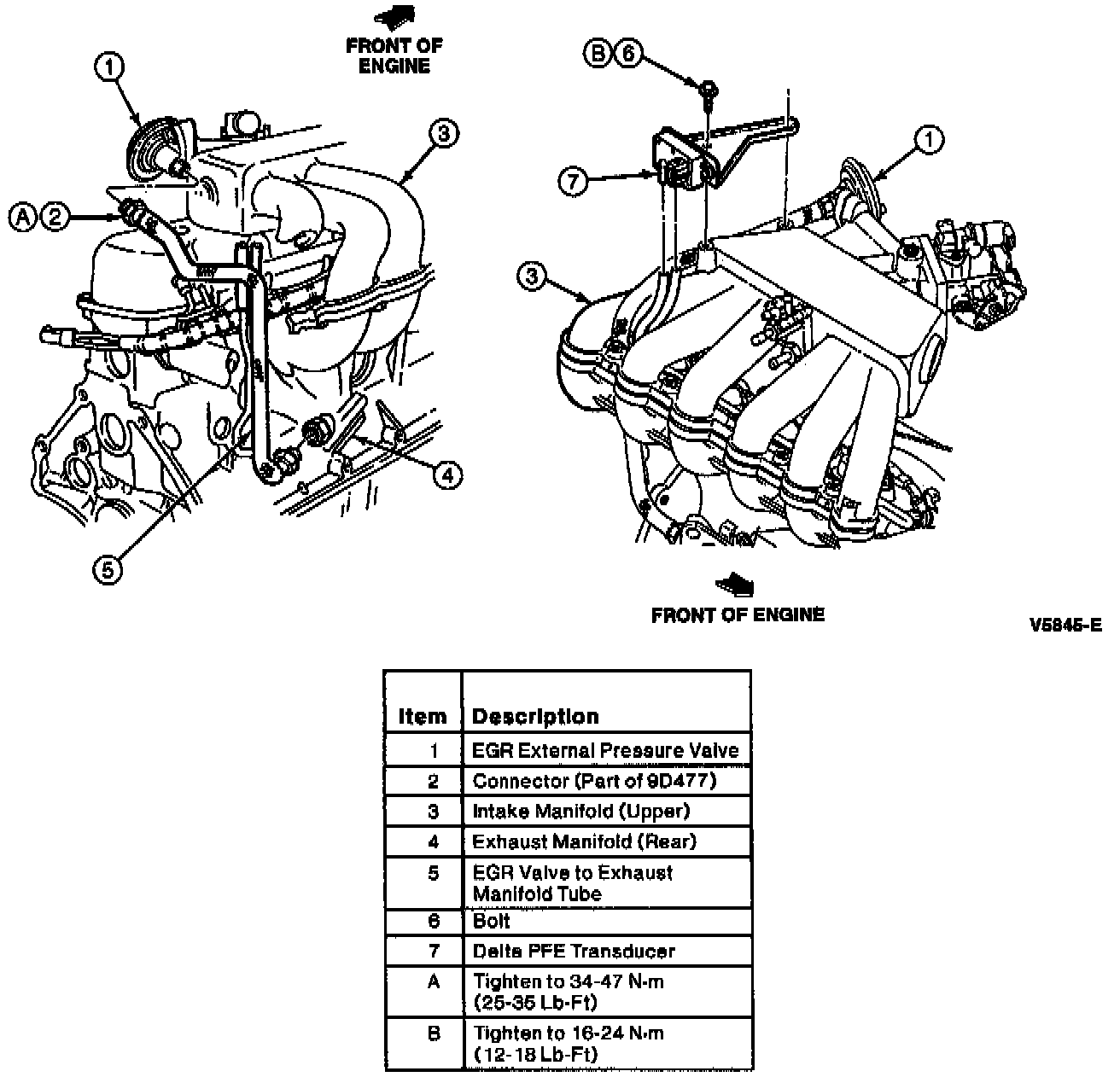

REMOVAL
1. Disconnect electrical connector from Exhaust Gas Recirculation (EGR) transducer.
2. Loosen and remove two screws retaining EGR transducer to bracket.
3. Remove two EGR tubes from EGR transducer by pulling downward while twisting gently.
4. If necessary remove two screws and or two nuts and EGR transducer bracket from intake manifold.

INSTALLATION
1. To install, follow removal procedures in reverse.
2. Tighten EGR transducer bracket to upper intake manifold retaining screws to 16-24 N.m (12-18 lb ft).
