Maintenance: Specifications

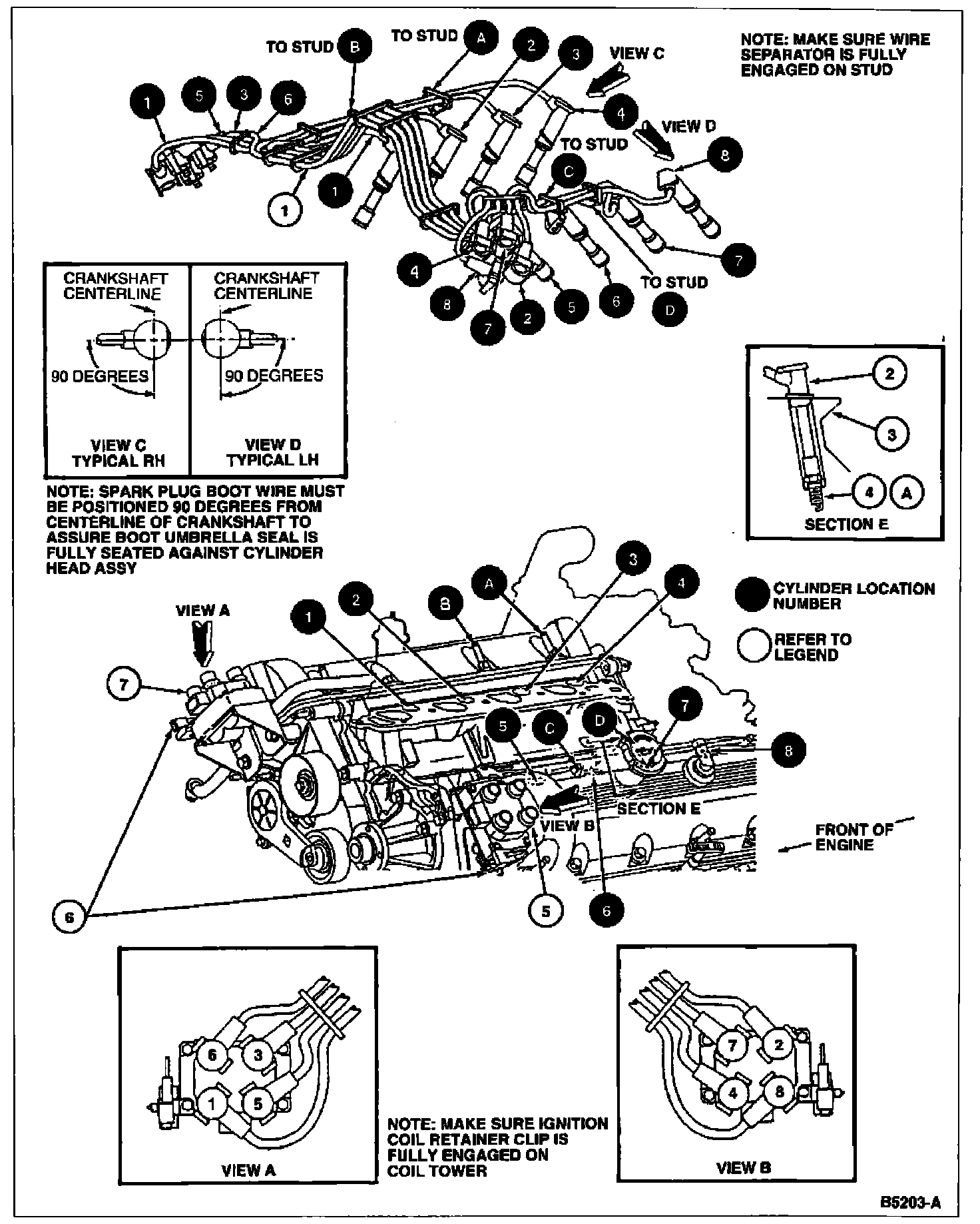

Item Description

1 Ignition Wire and Bracket
2 Ignition Wire (8 Req'd)
3 Cylinder Head
4 Spark Plug (8 Req'd)
5 LH Ignition Coil
6 Radio Ignition Interference Capacitor (2 Req'd)
7 RH Ignition Coil
A Tighten to 9-20 N-m (7-15 Lb-Ft)






Firing Order 1-3-7-2-6-5-4-8
