Power Mirror Control Module

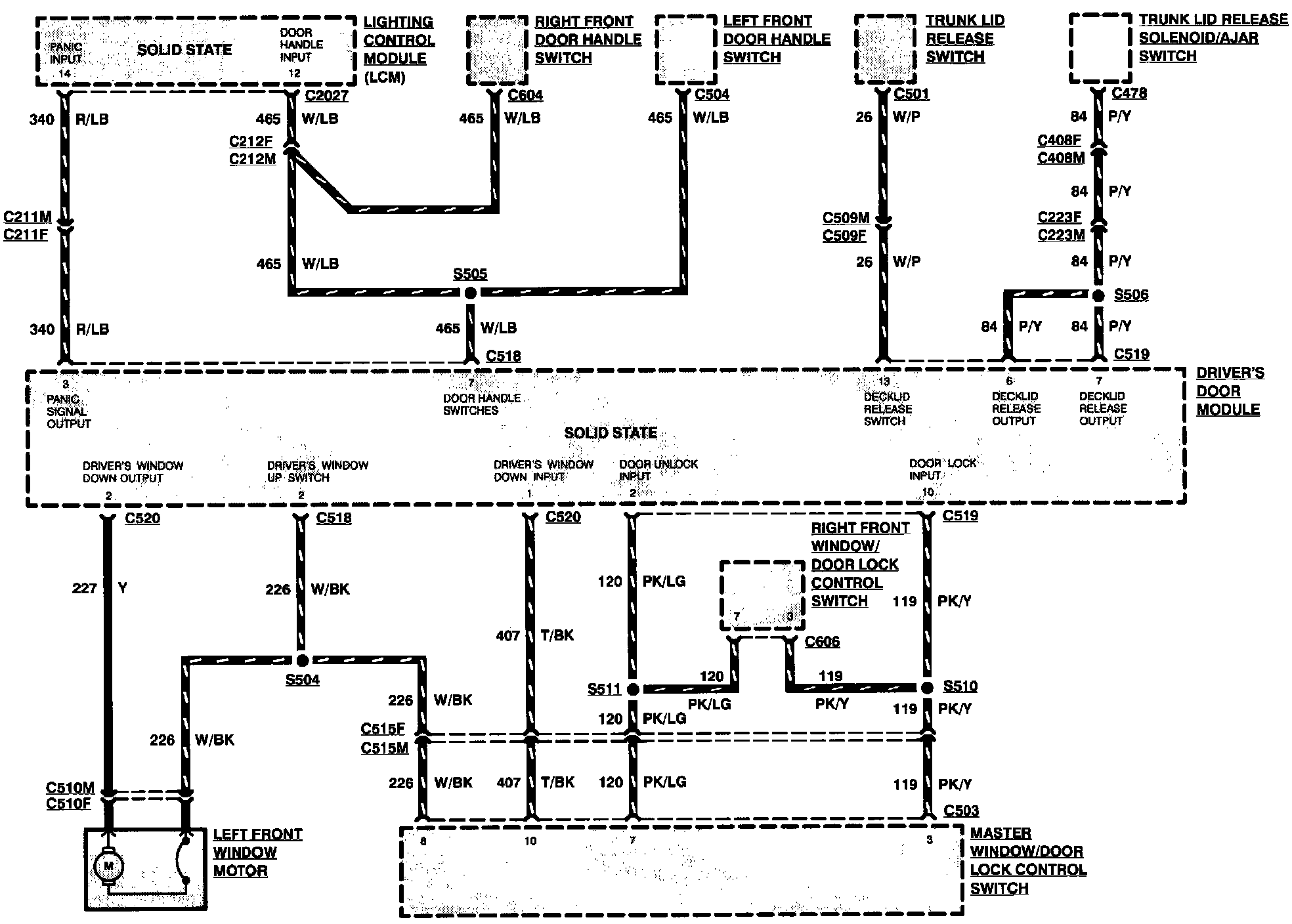

Driver's Door Module (Part 1 Of 3):

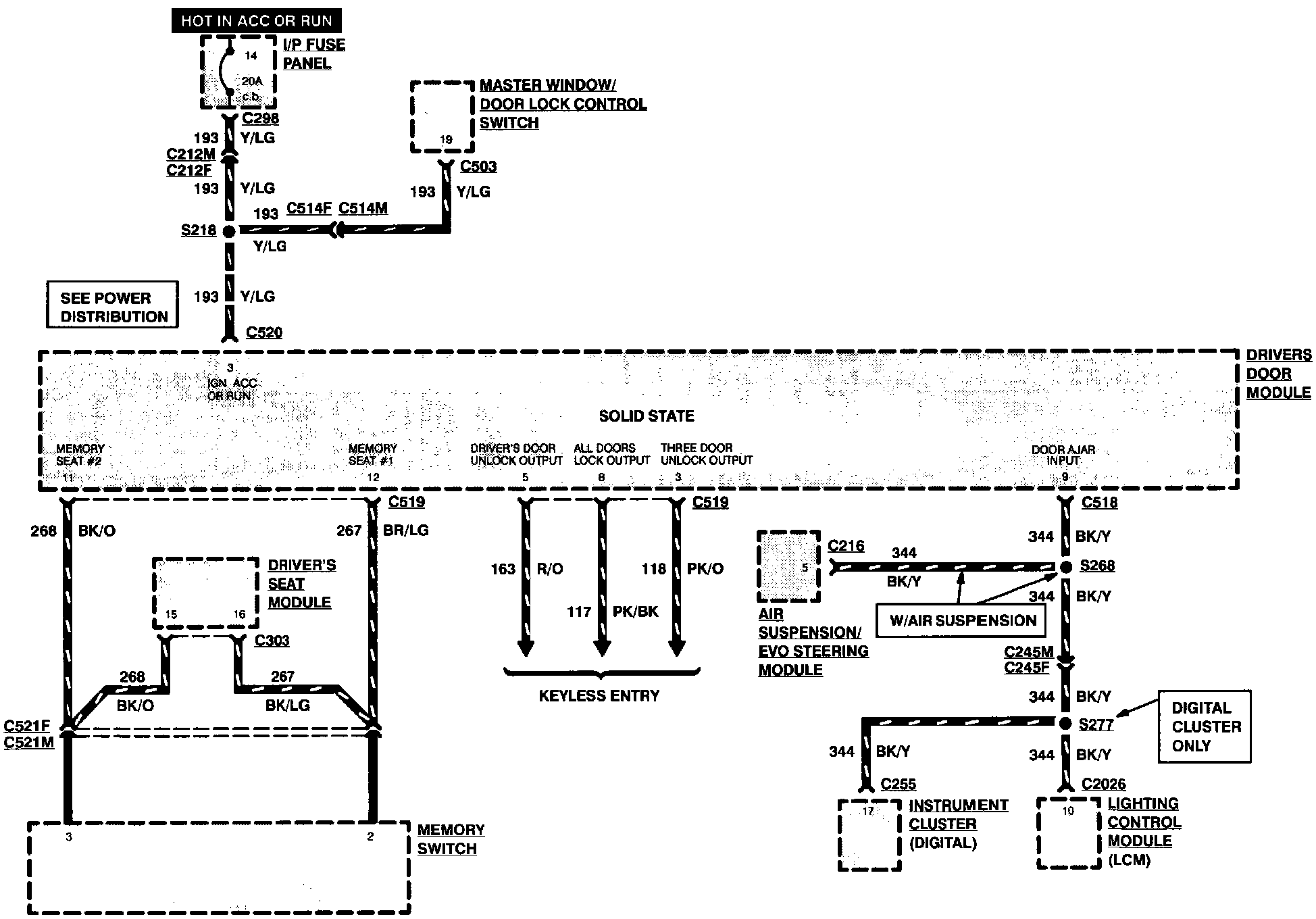

Driver's Door Module (Part 2 Of 3):

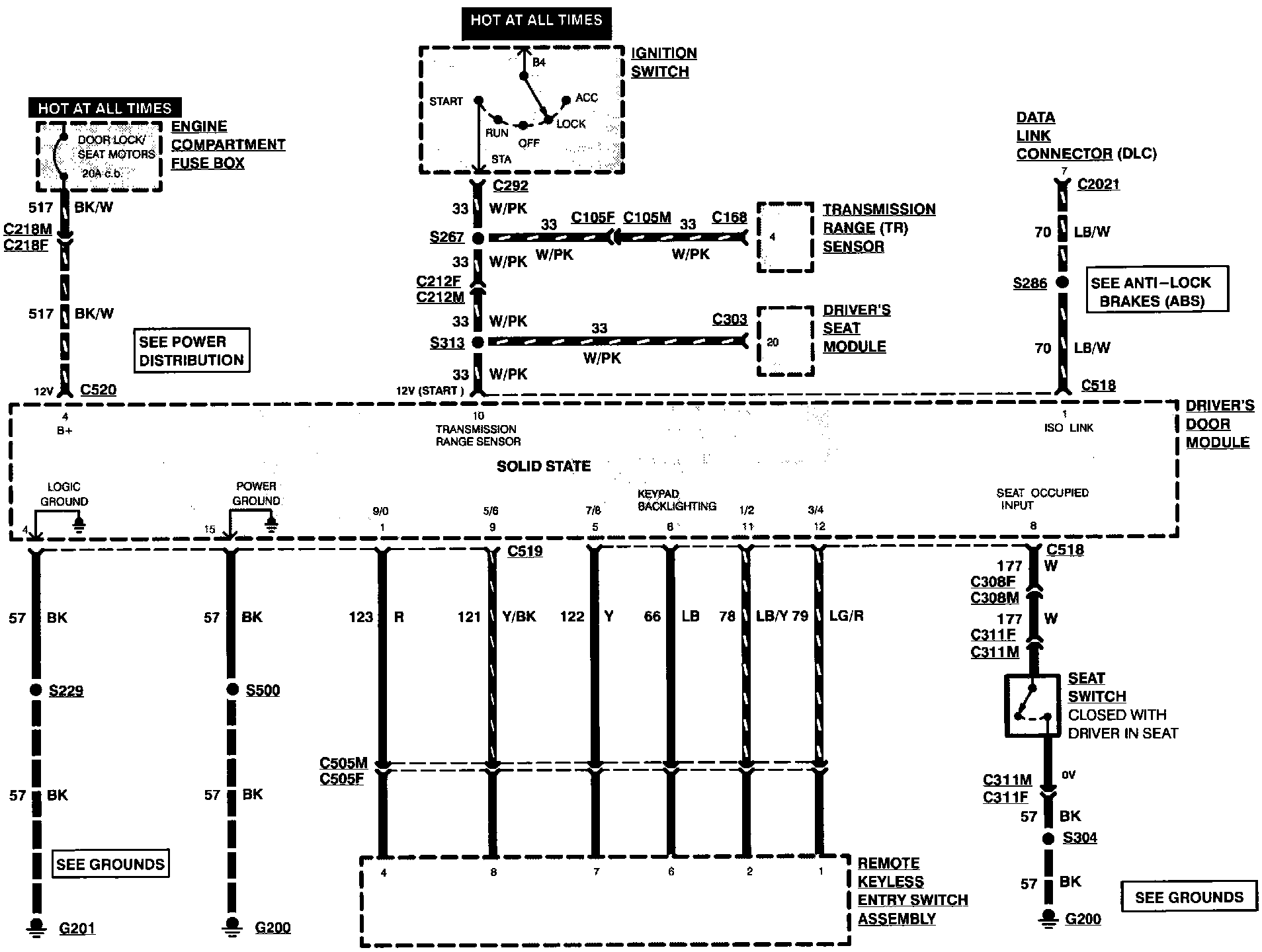

Driver's Door Module (Part 3 Of 3):
