Driver's Seat Module

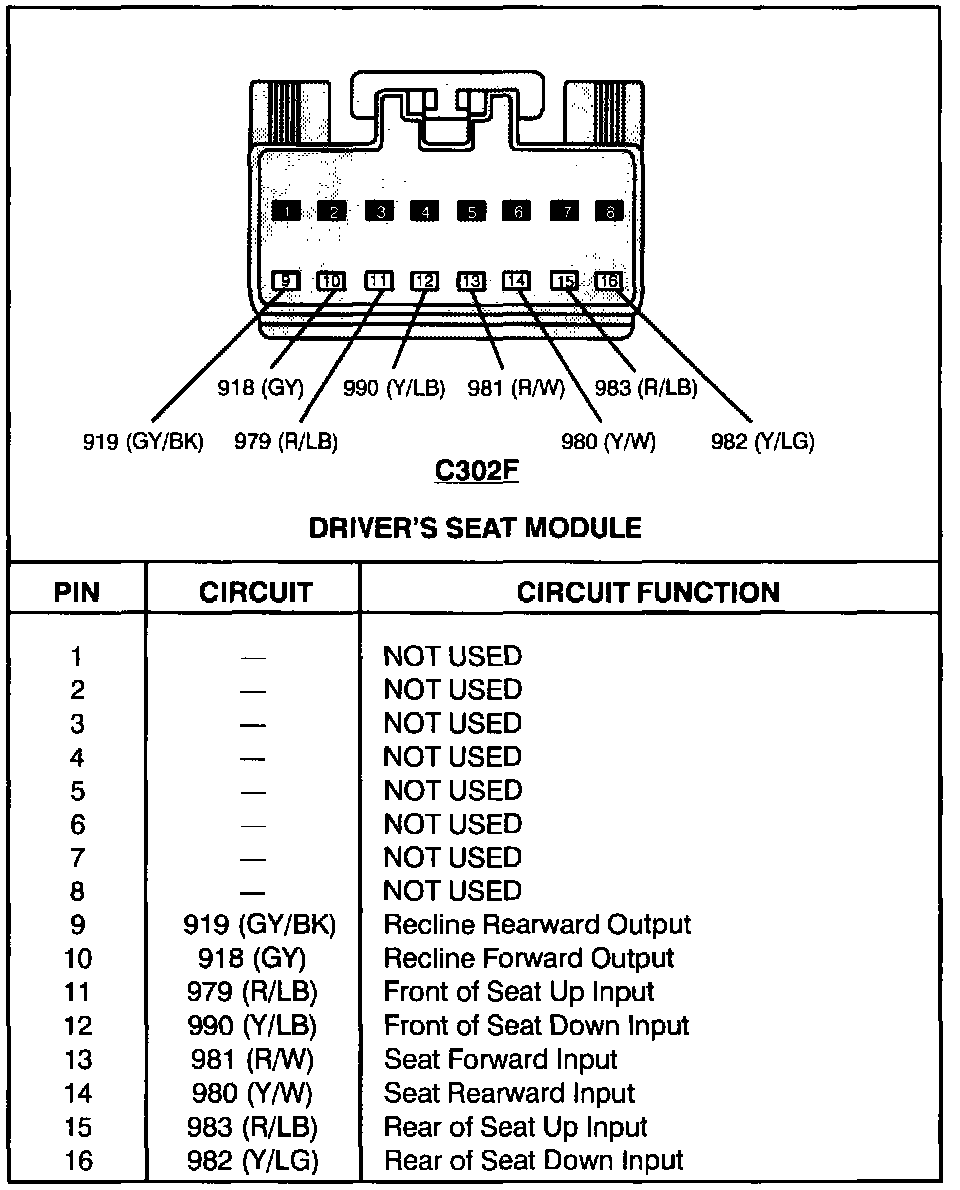

Driver's Seat Module-C302:

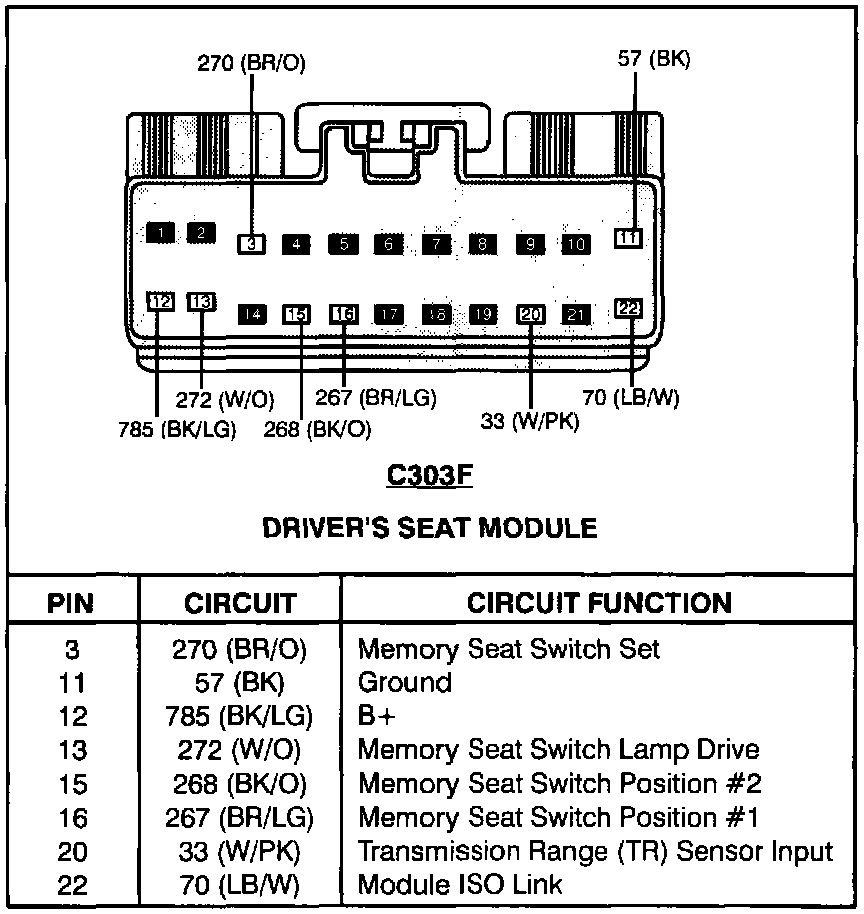

Driver's Seat Module-C303:

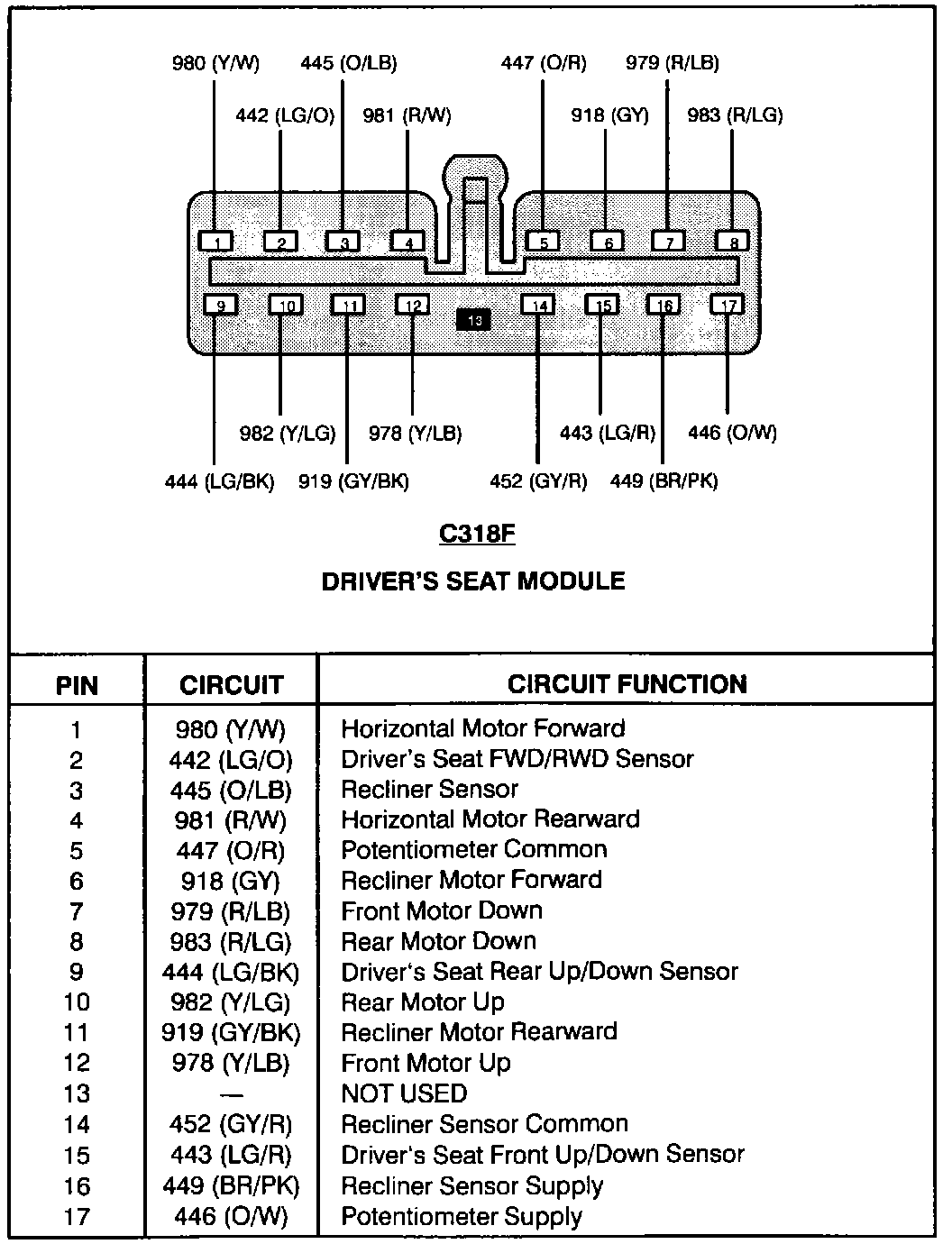

Driver's Seat Module-C318:




Driver's Seat Module-C319:
