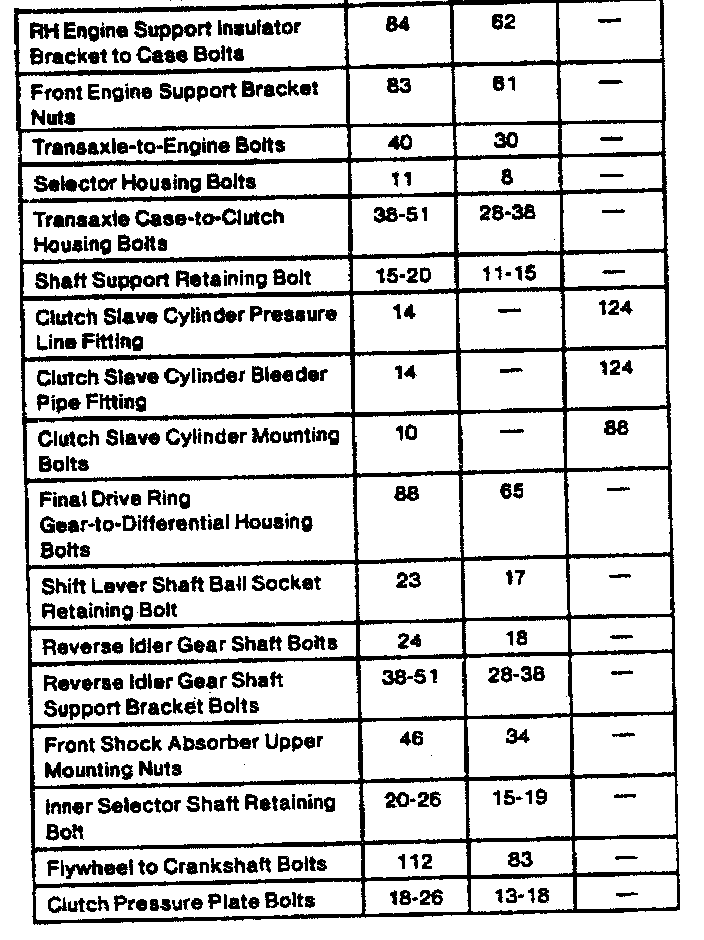

M/T Torque Data

MTX 75 5-spd M/T, Clutch System (Contour/Mystique):





MTX 75 5-spd M/T, Clutch/Pressure Plate (Contour/Mystique):





MTX 75 5-spd M/T, Clutch Control Torque (Contour/Mystique):





MTX 75 5-spd M/T, Transaxle Torque:





MTX 75 5-spd M/T, External Controls:
