A/T Technical Data

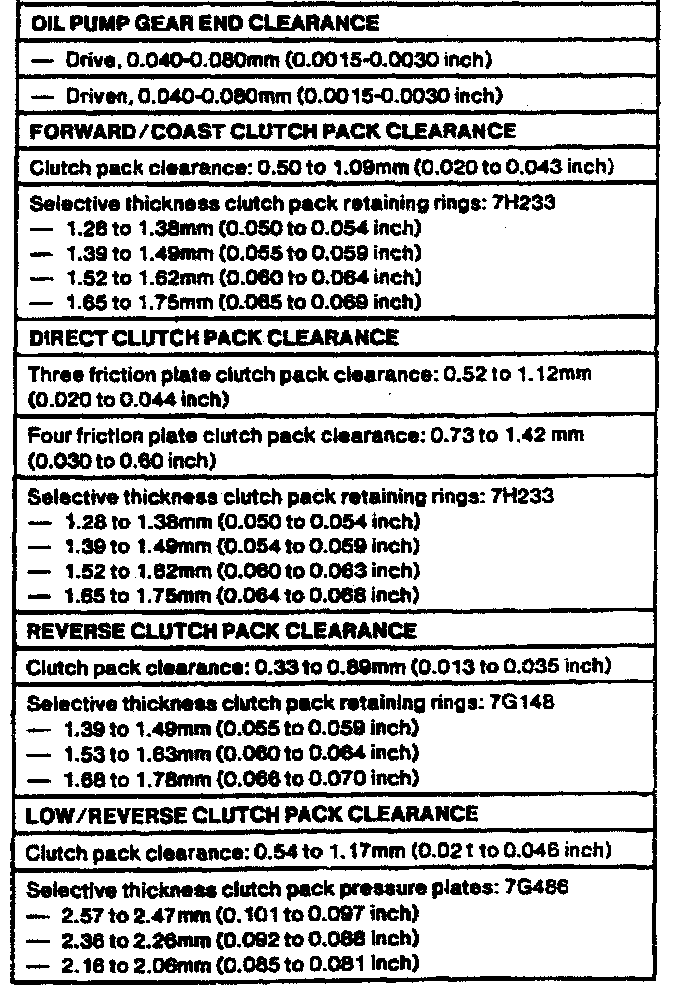

CD4E 4-spd A/T, Clearances (Contour/Mystique):

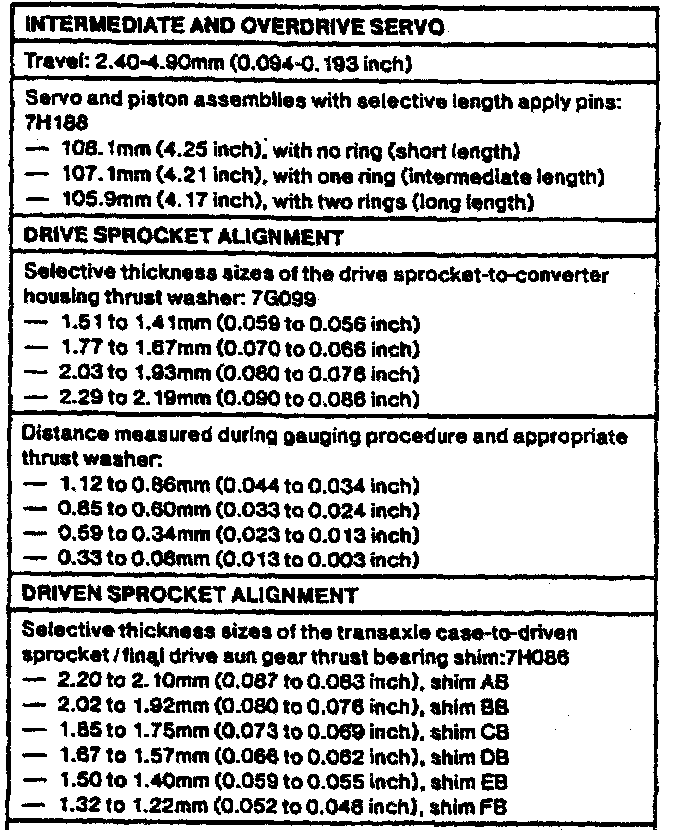

CD4E 4-spd A/T, Clearances Cont.:

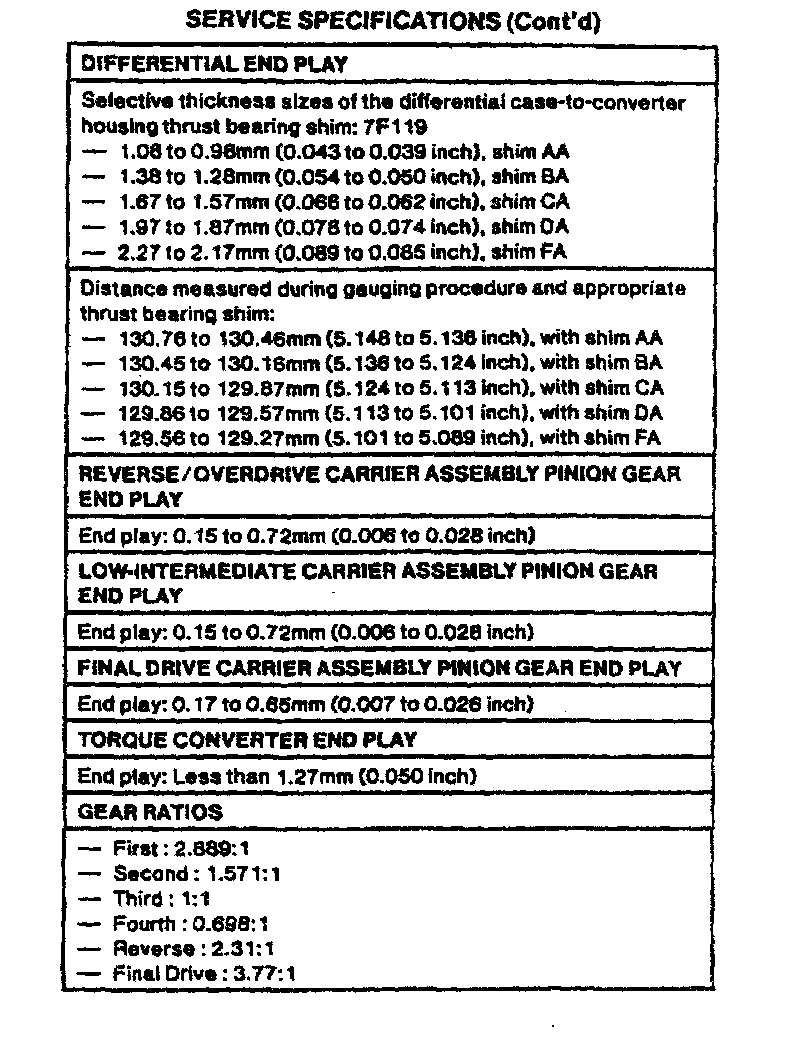

CD4E 4-spd A/T, Clearances Cont.:

CD4E 4-spd A/T, Band & Clutch Chart (Contour/Mystique):

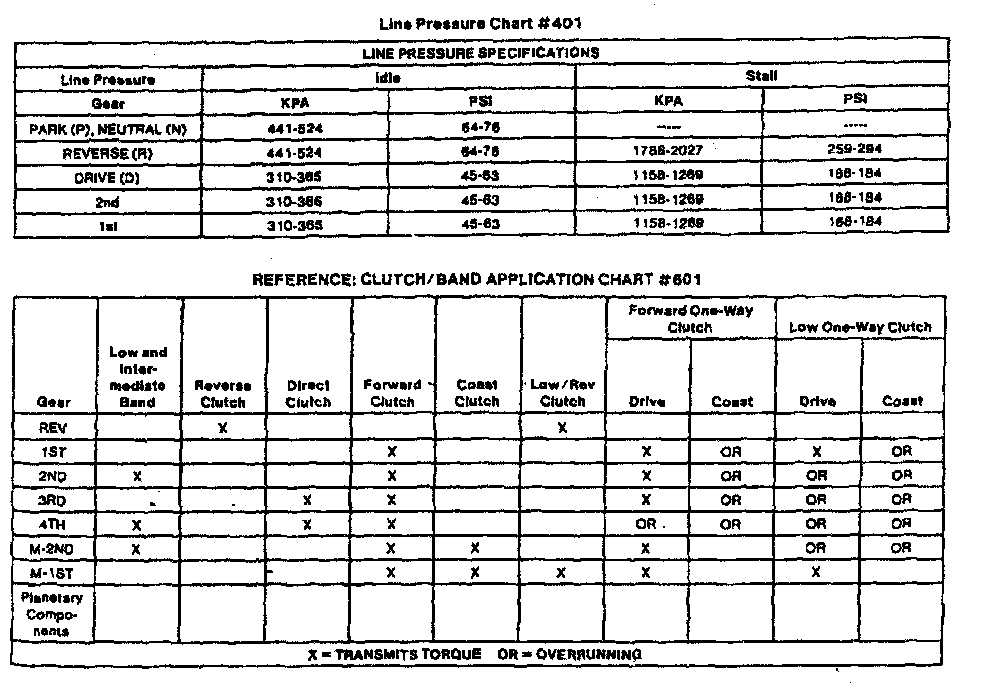

CD4E 4-spd A/T, Line Pressure Chart (Contour/Mystique):

CD4E 4-spd A/T, Stall Speed Chart (Contour/Mystique):

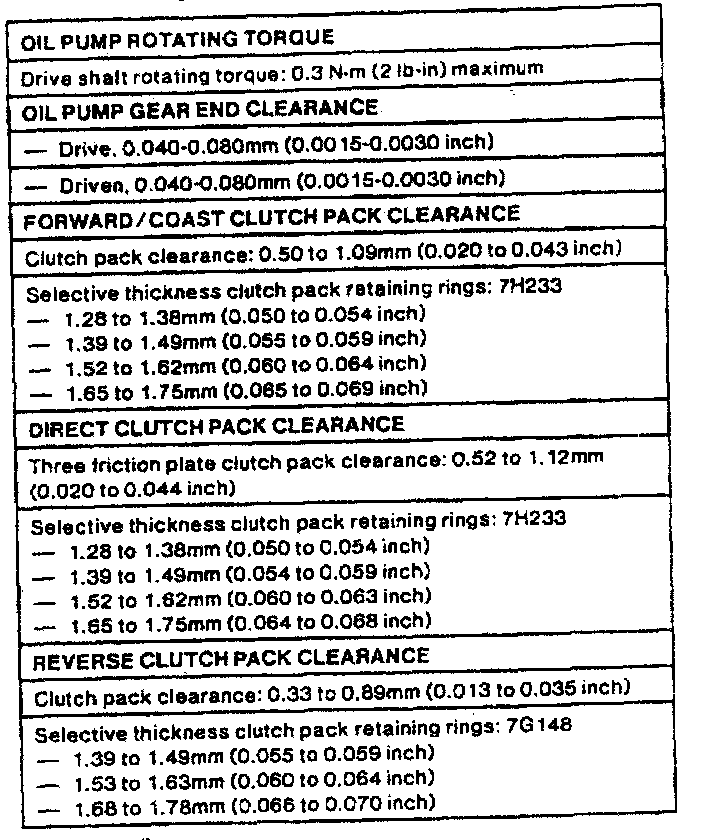

2.0L CD4E 4-spd A/T (Probe) Clearances:

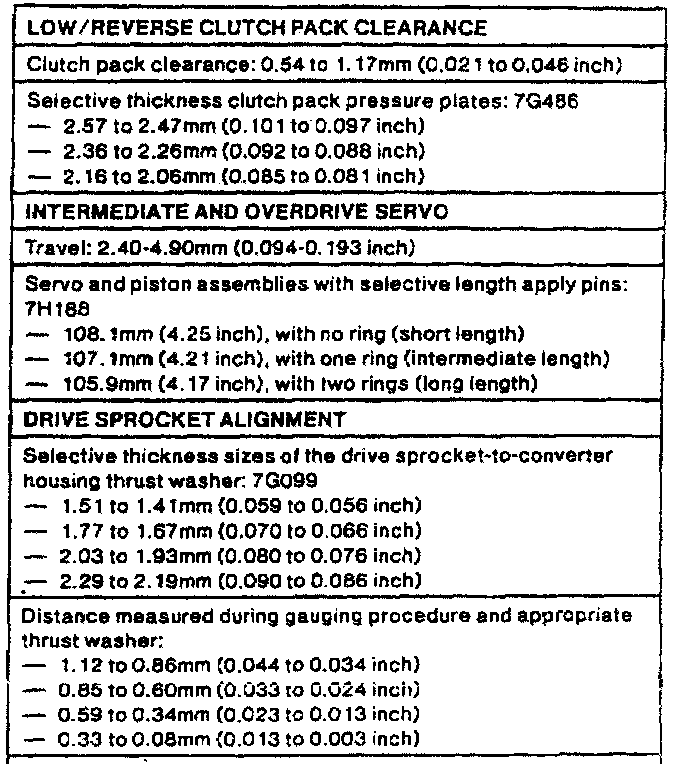

2.0L CD4E 4-spd A/T, (Probe) Clearances Cont.:

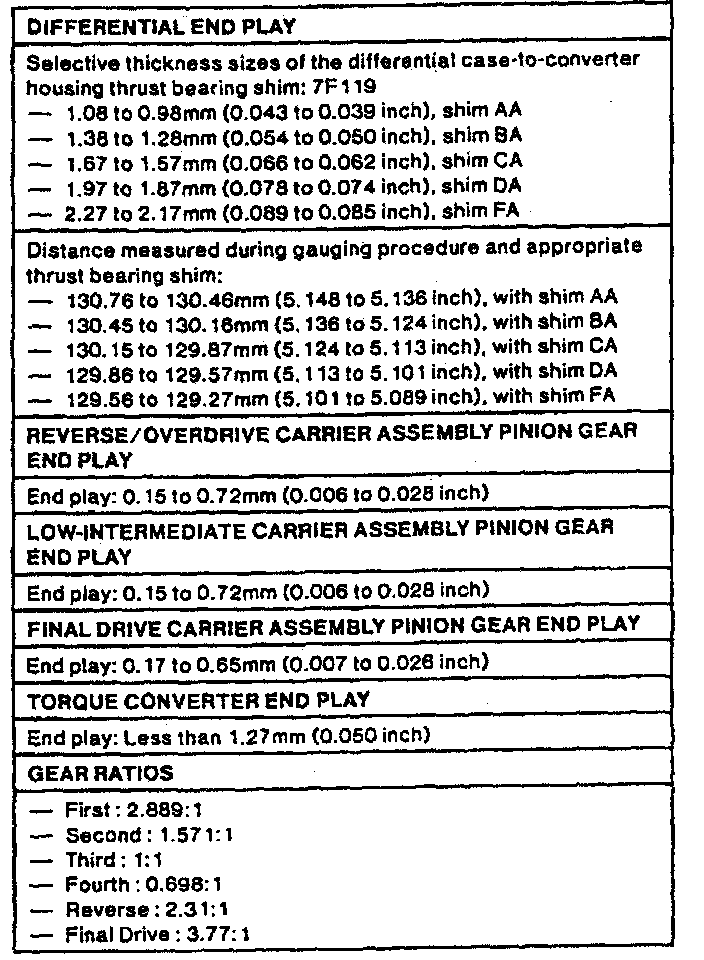

2.0L CD4E 4-spd A/T, (Probe) Clearances Cont.:

2.0L CD4E 4-spd A/T, (Probe) Line Pressure/Clutch Band Chart:
