Automatic Transmission/Transaxle

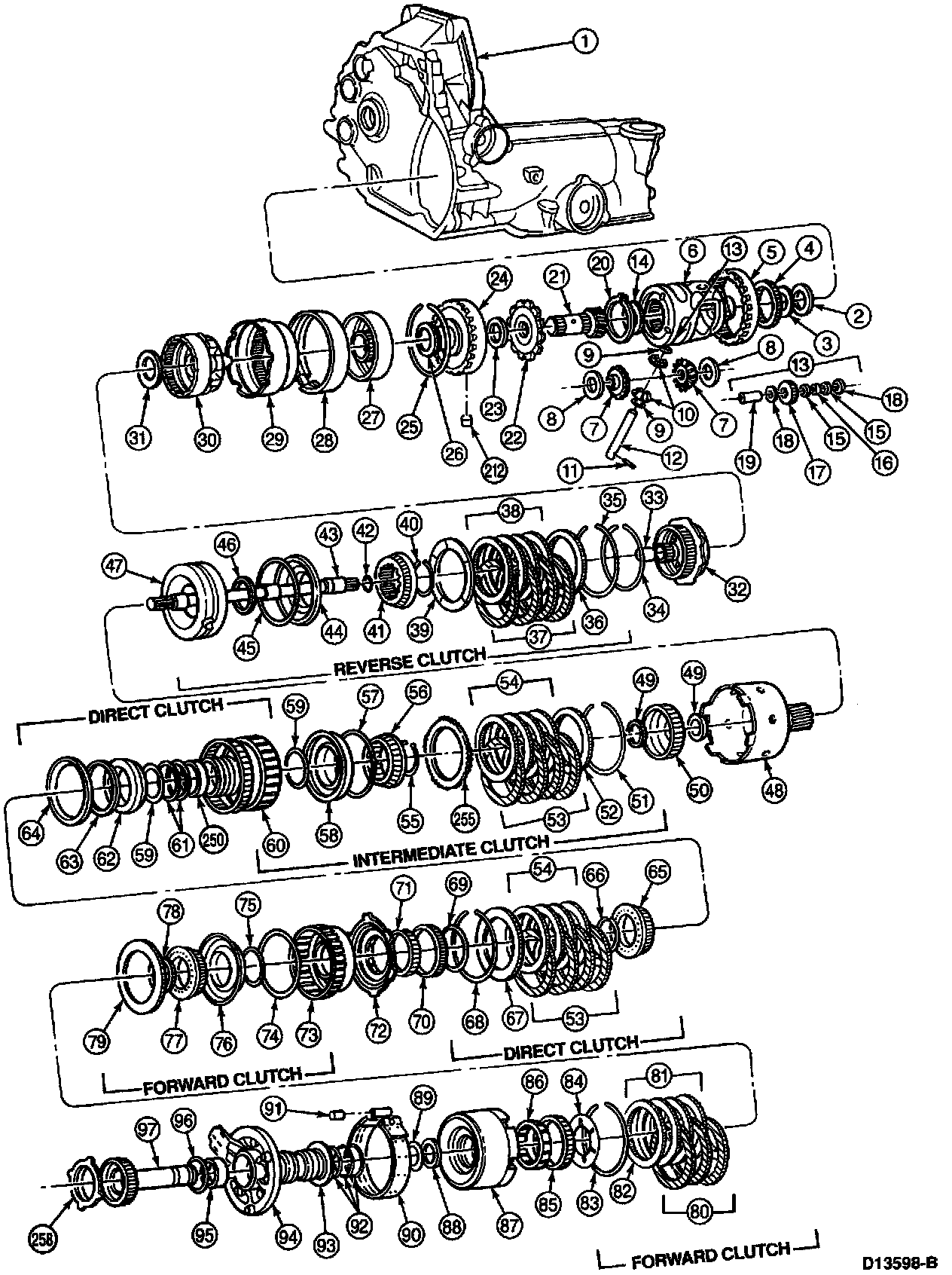

AX4S Transaxle:

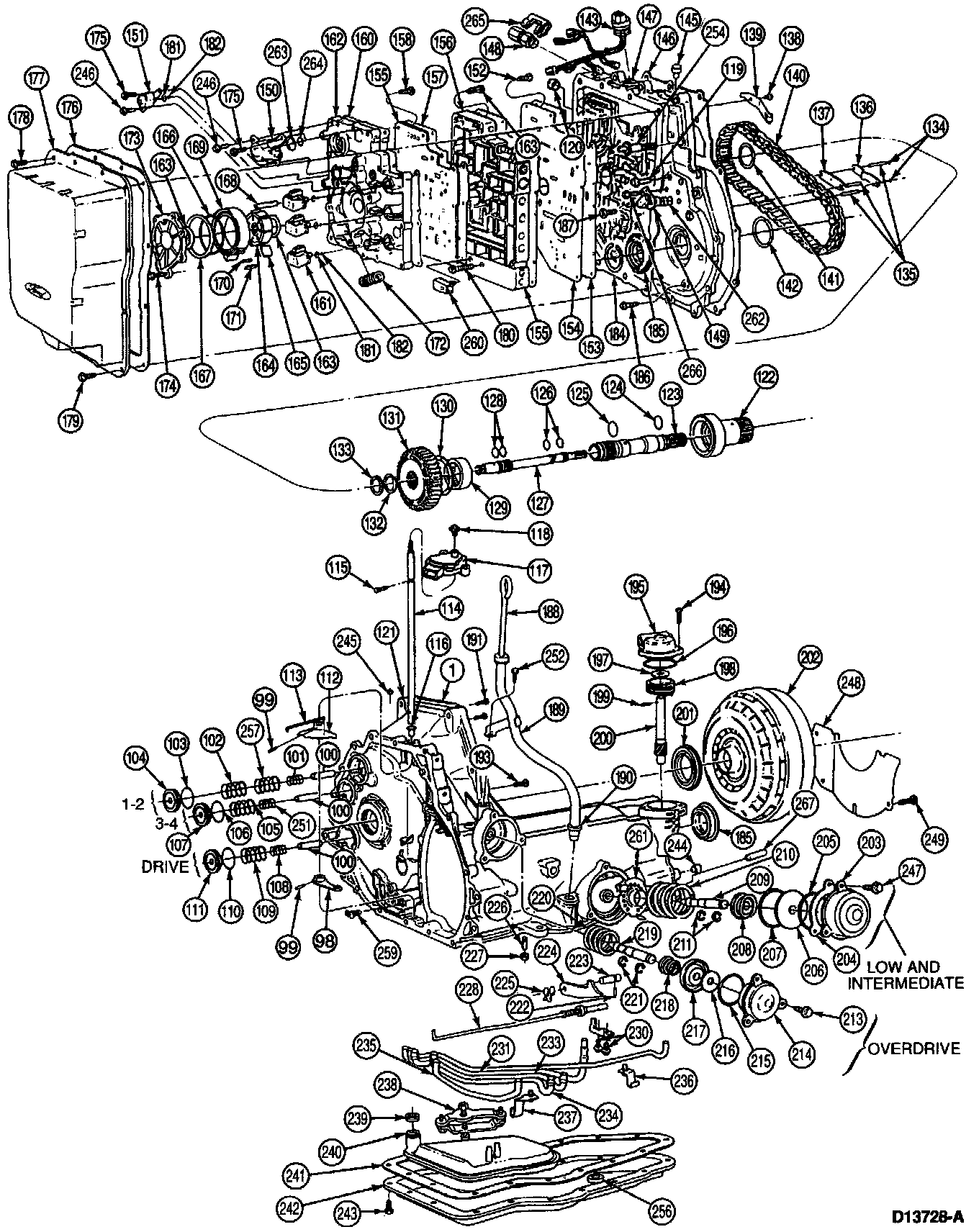

AX4S Transaxle:

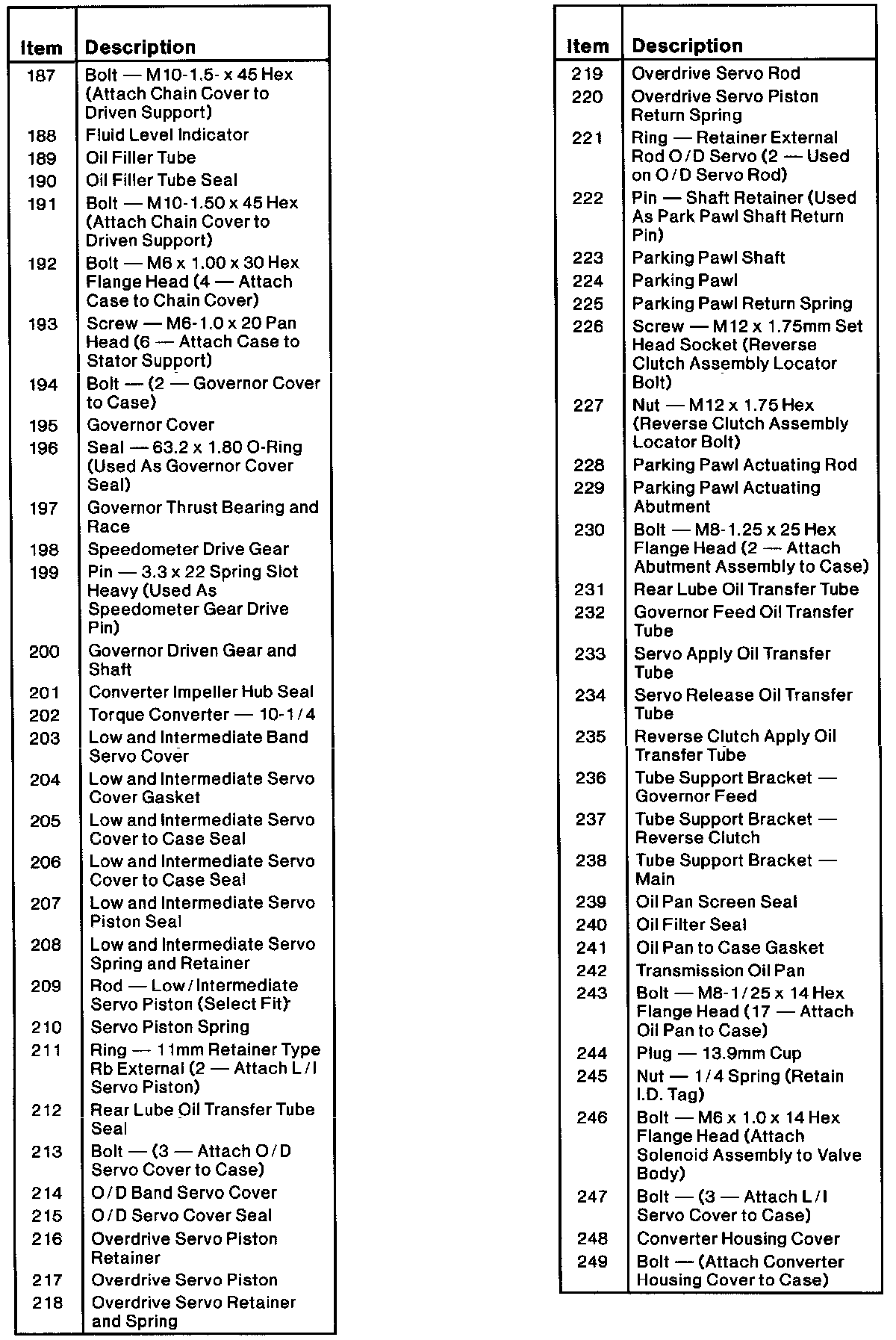

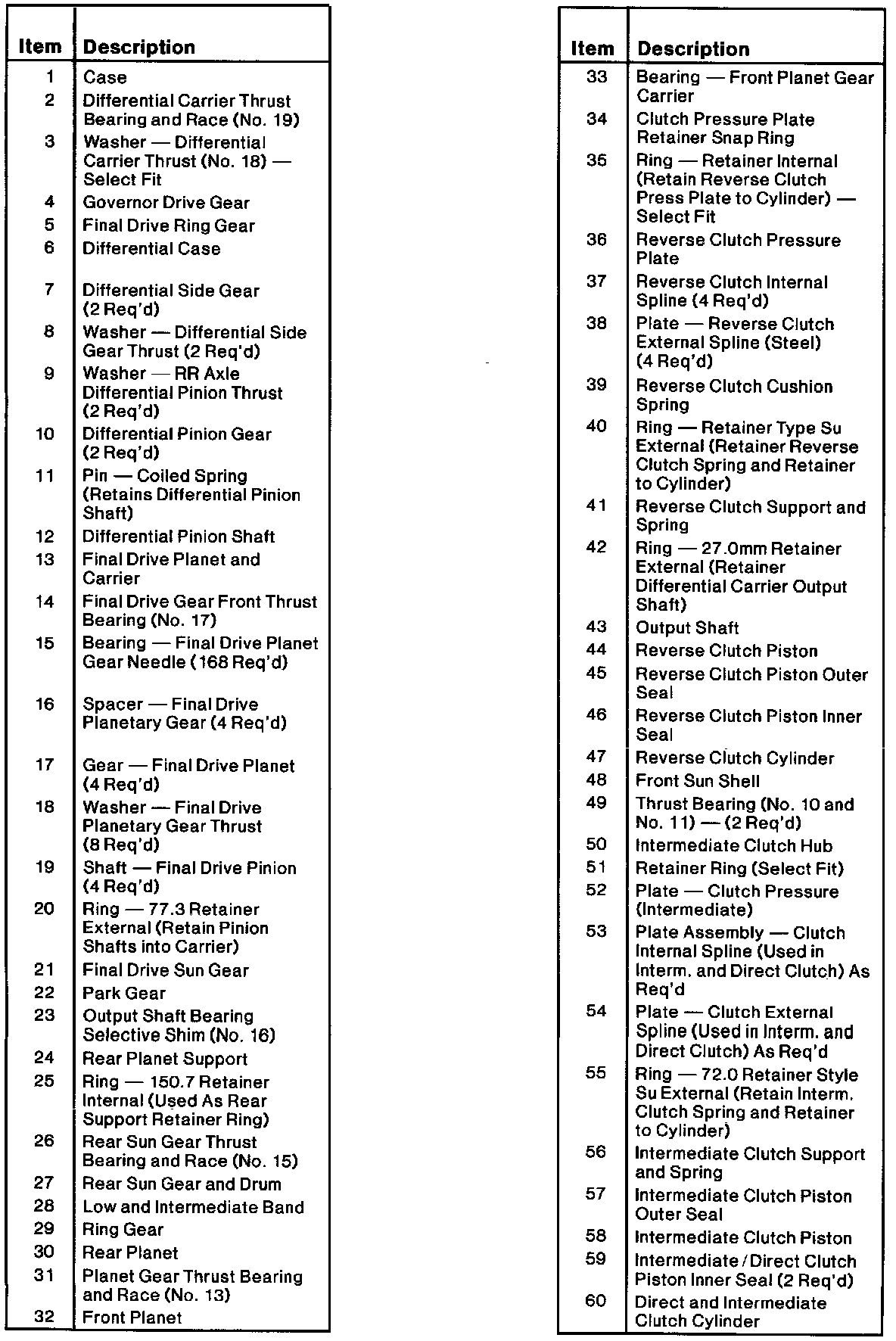

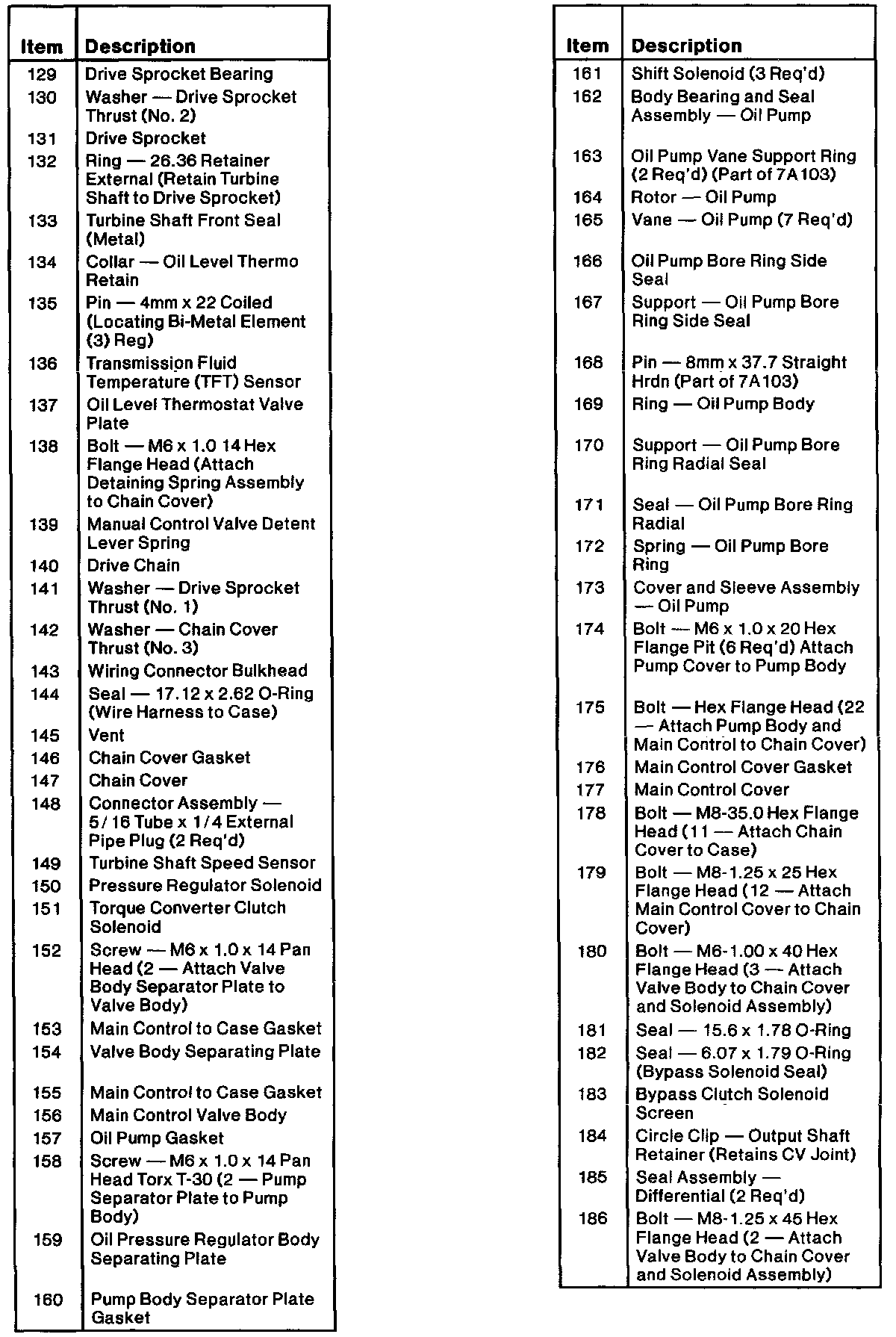

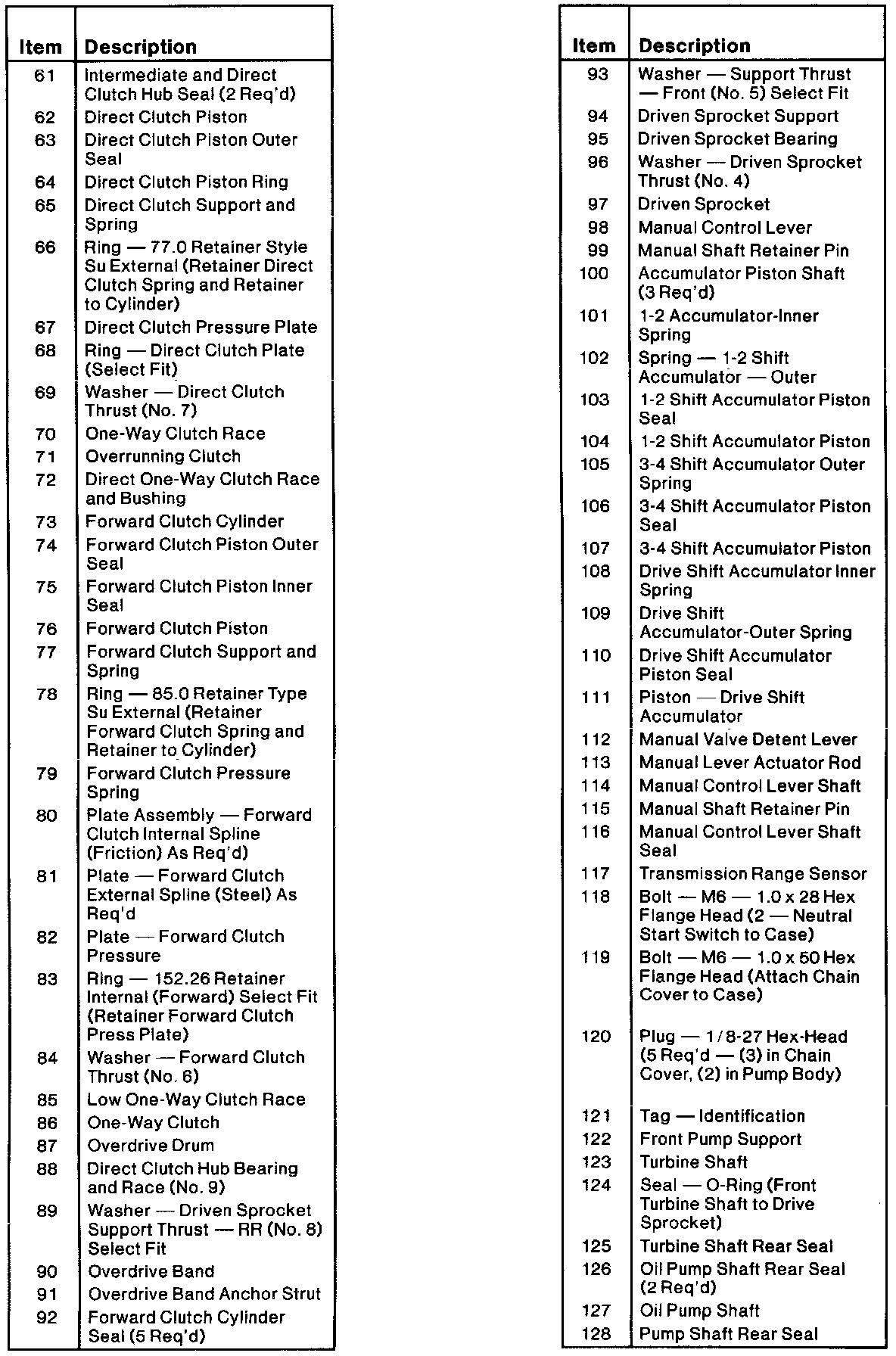

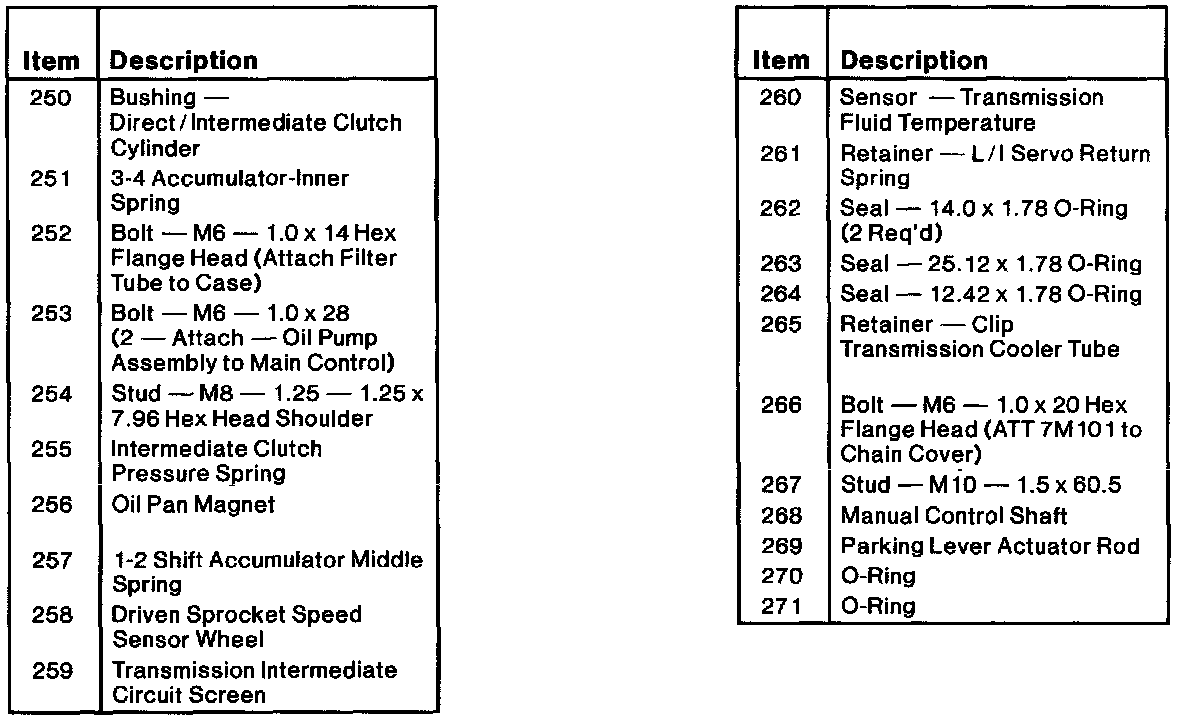

AX4S Transaxle (Legend):






AX4S Transaxle (Legend):






AX4S Transaxle (Legend):






AX4S Transaxle (Legend):







AX4S Transaxle (Legend):
