Windshield Washer Switch
>>
Windshield Wiper/Washer (Multi-Function) Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Windshield Wiper/Washer (Multi-Function) Switch

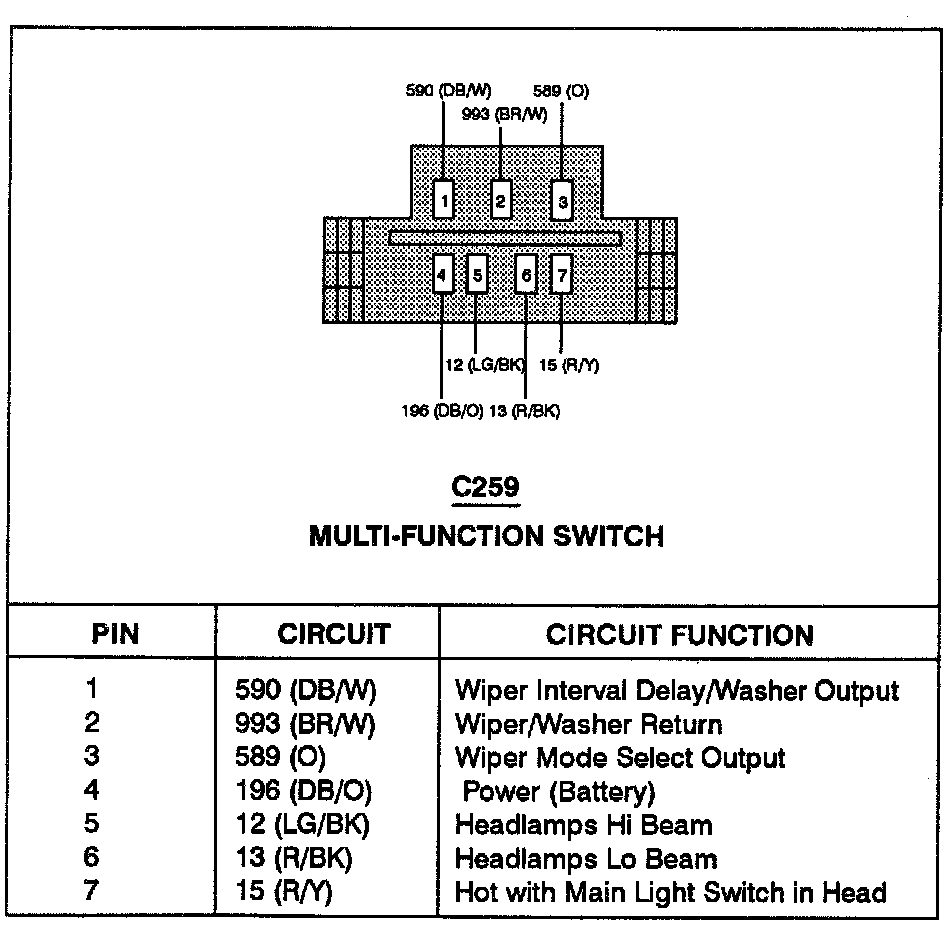

Multi-Function Switch (C259):

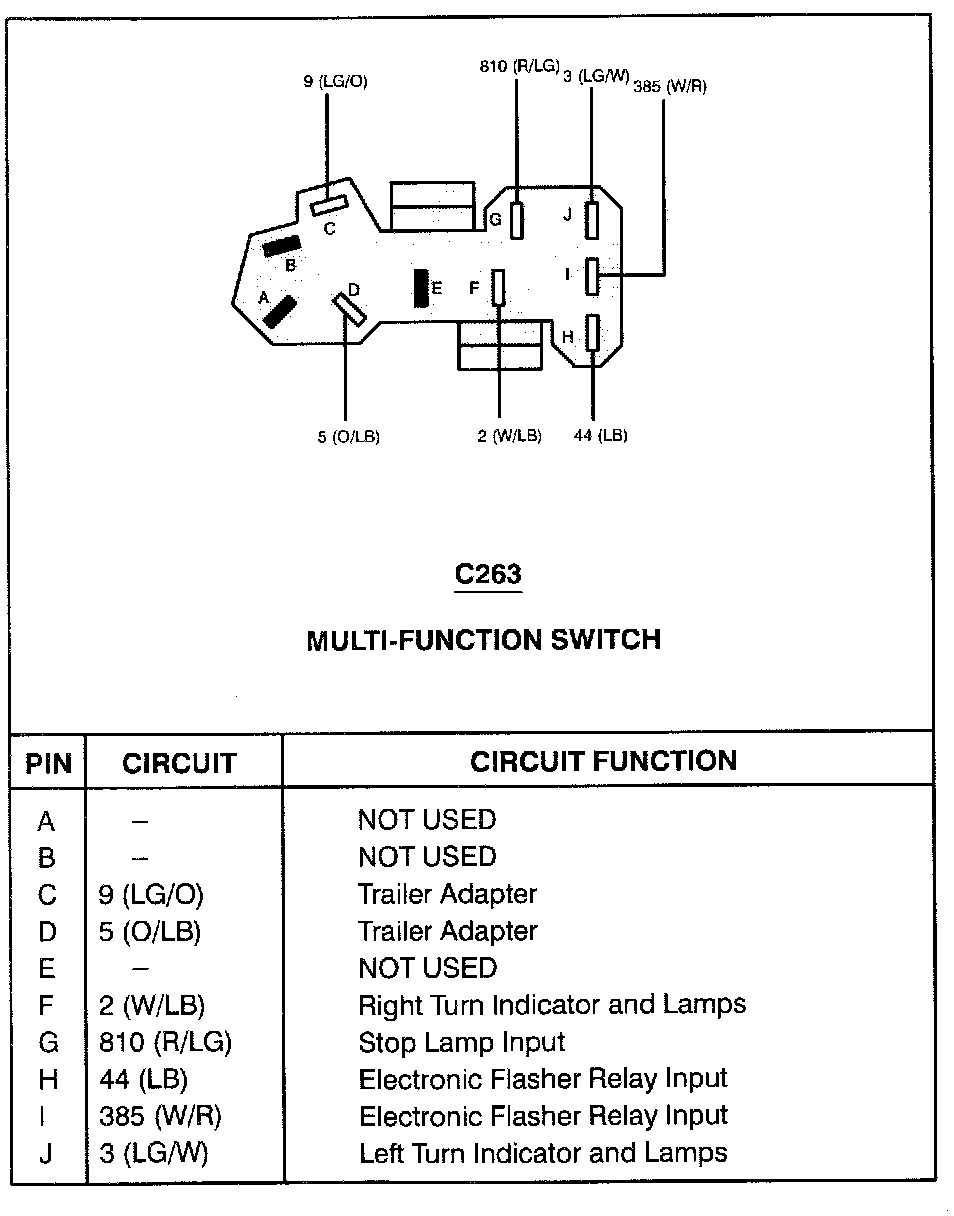

Multi-Function Switch (C263):
