Home >> Ford >> 1995 >> Thunderbird V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Integrated Control Relay Module

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

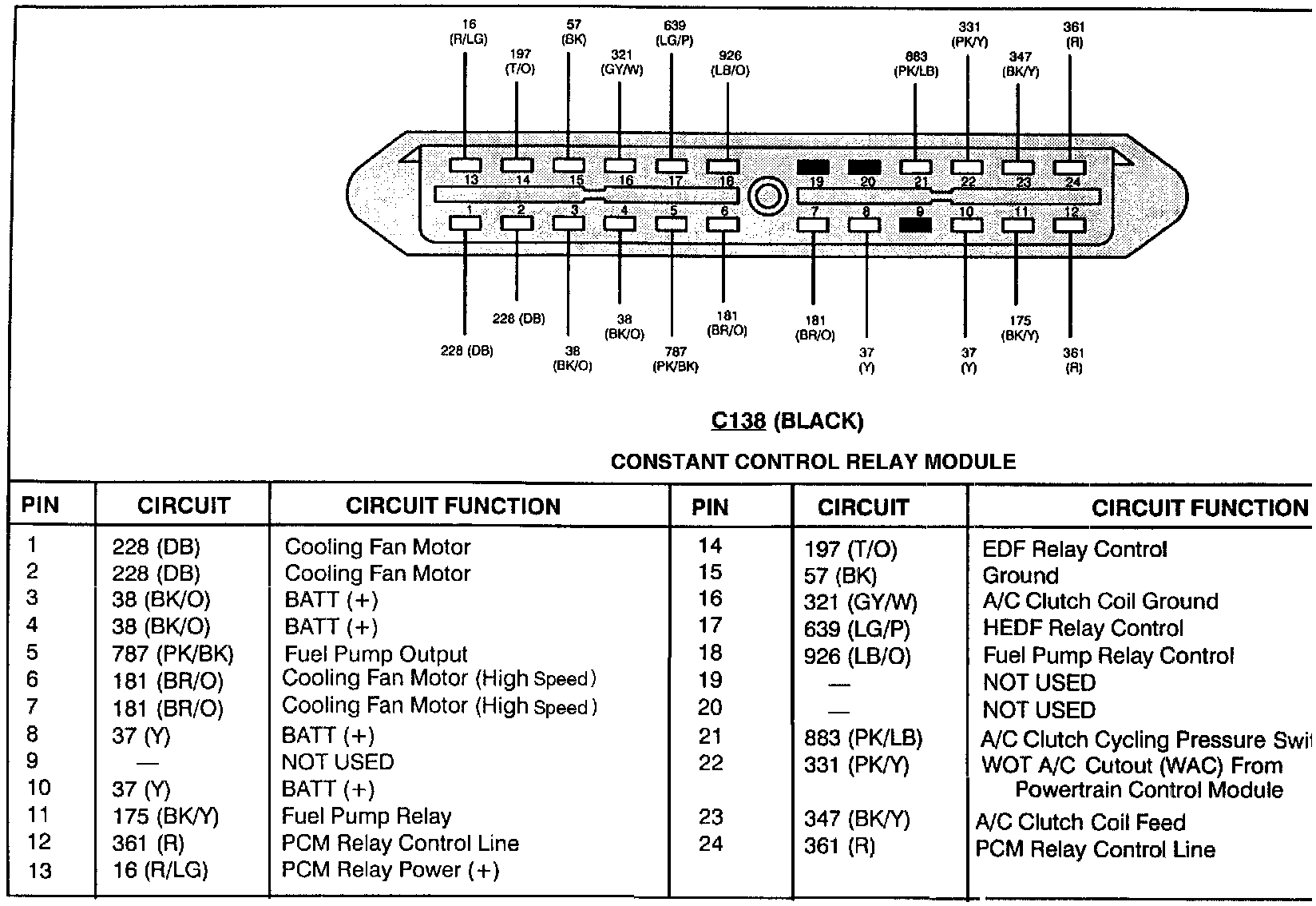

Integrated Control Relay Module

~��Constant Control Relay Module:
