Transmission Position Sensor/Switch: Testing and Inspection

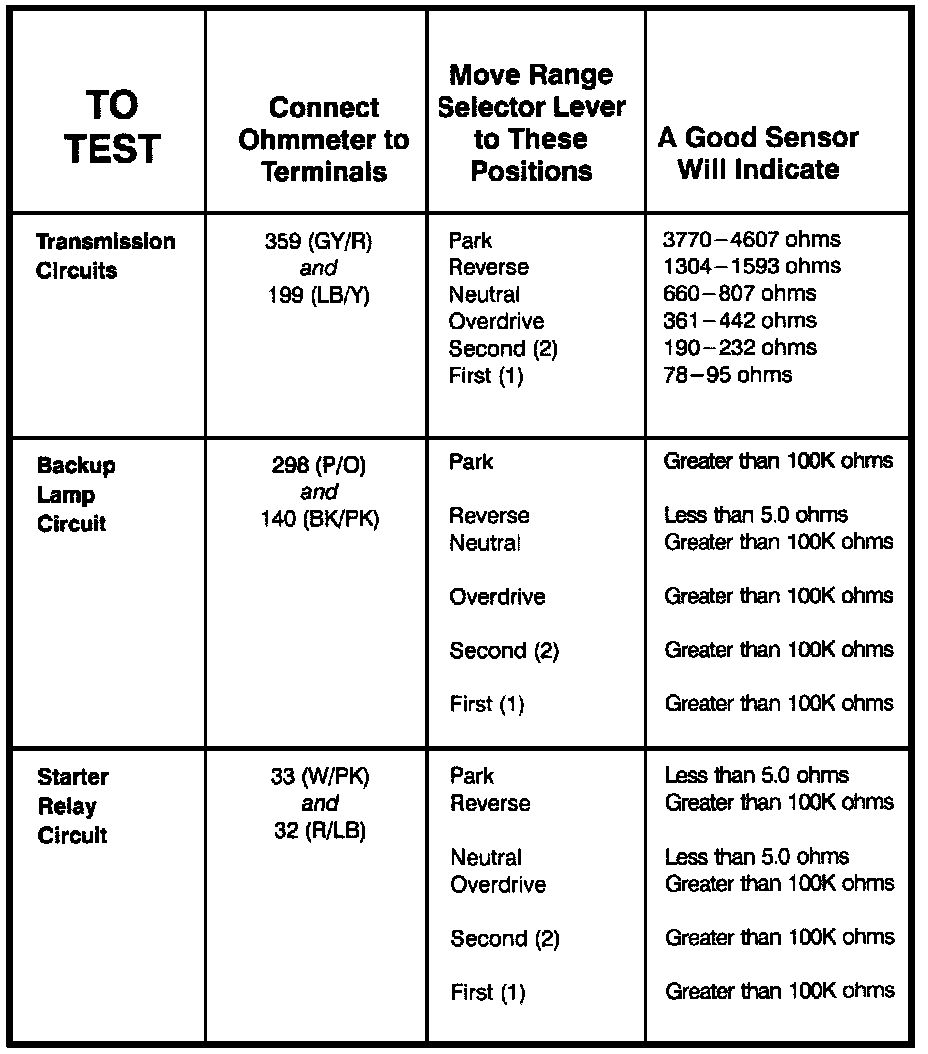

Transmission Range Sensor - Component Testing Procedure:




Transmission Range Sensor - Terminal Locations:




Transmission Range Sensor - Schematics:
