Lamp Out Module: Locations

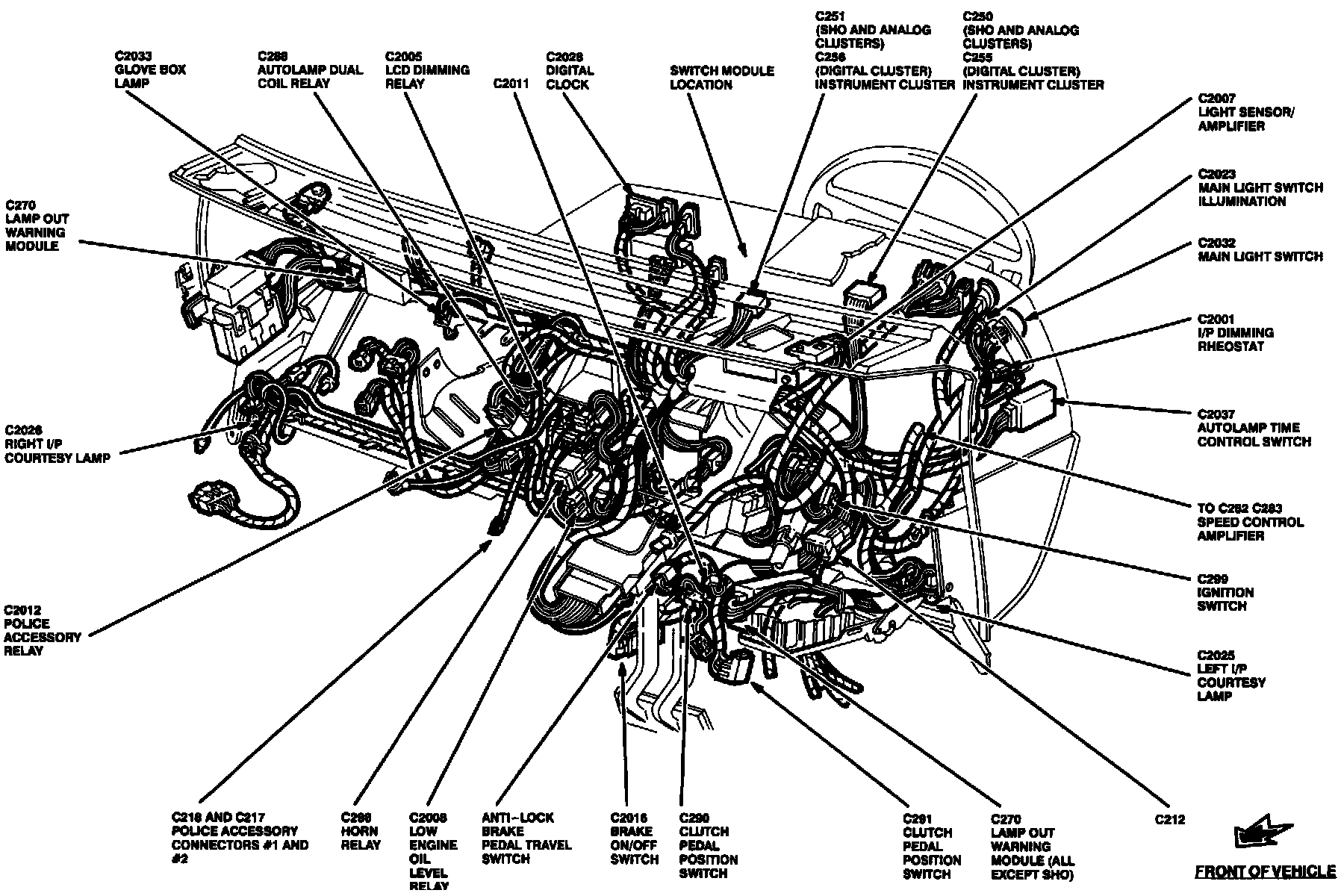

Behind Instrument Panel View:

The Lamp Out Warning Module is located behind the lower LH side of Instrument Panel (I/P), RH side of the I/P fuse panel.
