Multi-Function Switch Component Testing Procedures

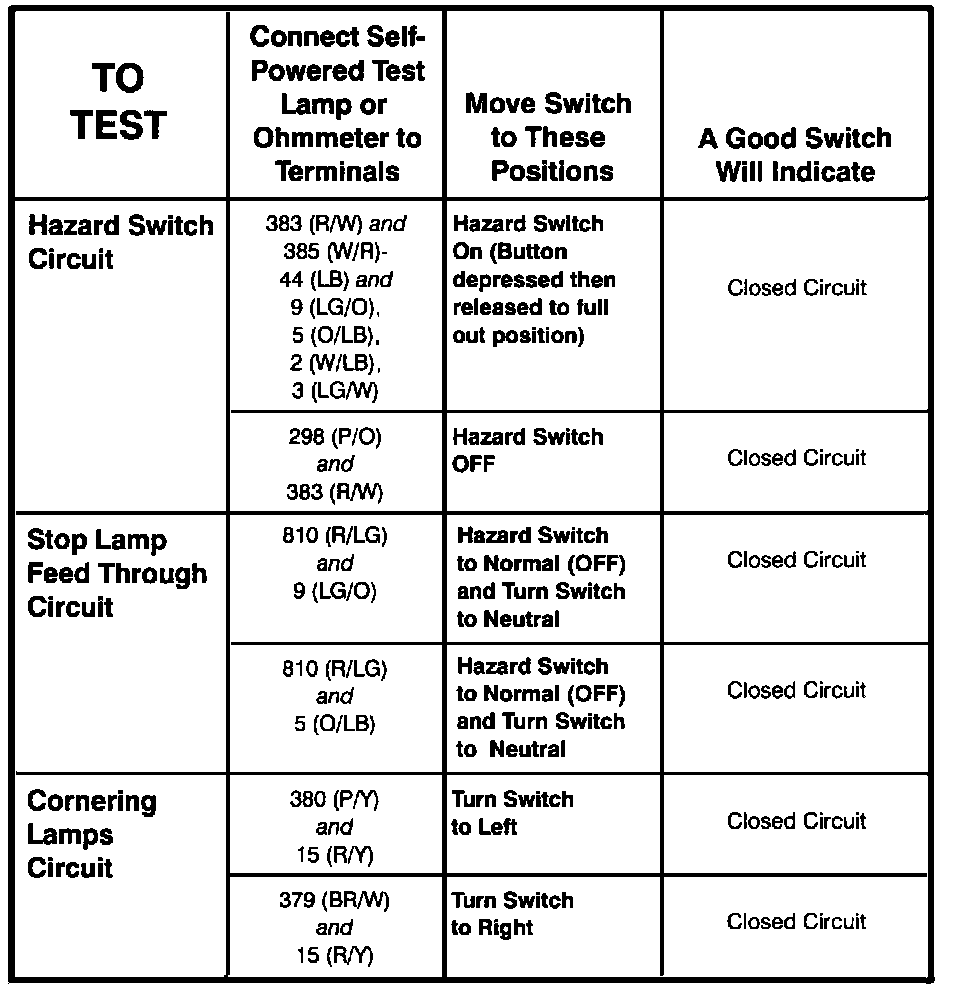

COMPONENT TESTING PROCEDURES

Component Testing Procedure:





Component Testing Procedure:





Component Testing Procedure:






TERMINAL IDENTIFICATION

Multi-Function Switch - Terminal Locations:






SCHEMATIC

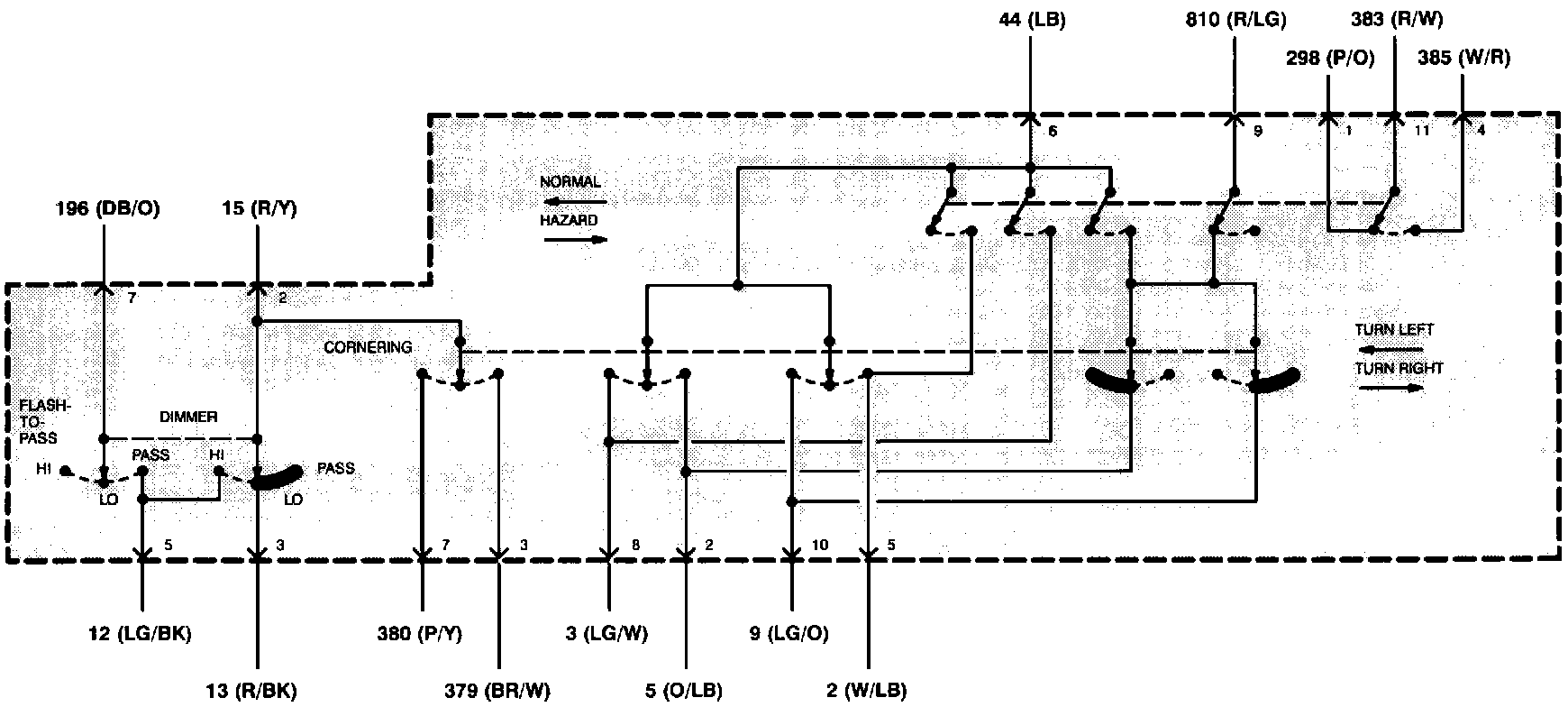

Multi-Function Switch - Schematic:





Multi-Function Switch - Schematic:
