Home >> Ford >> 1995 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Keyless Entry

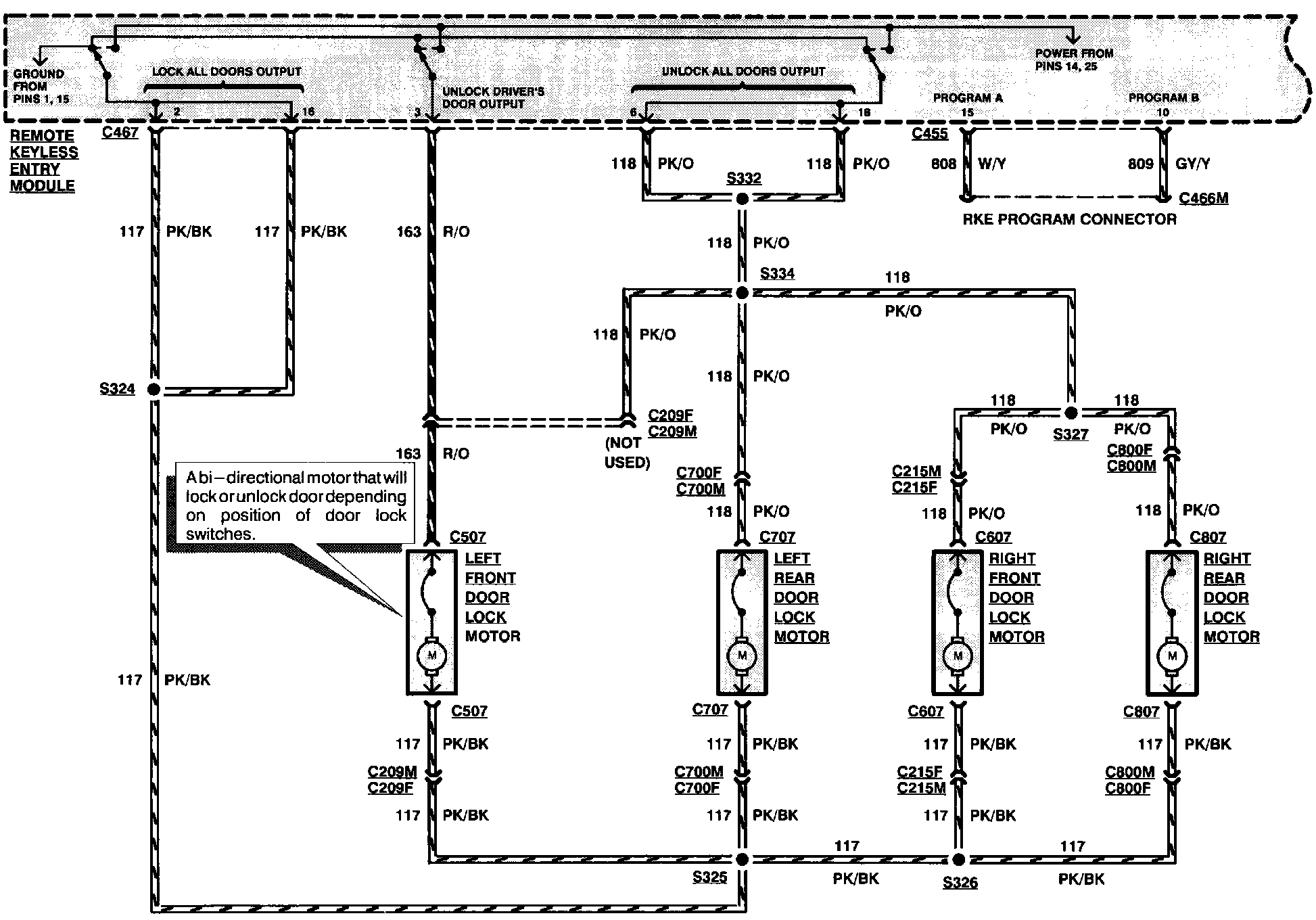

Remote Keyless Entry (Part 1 Of 5):

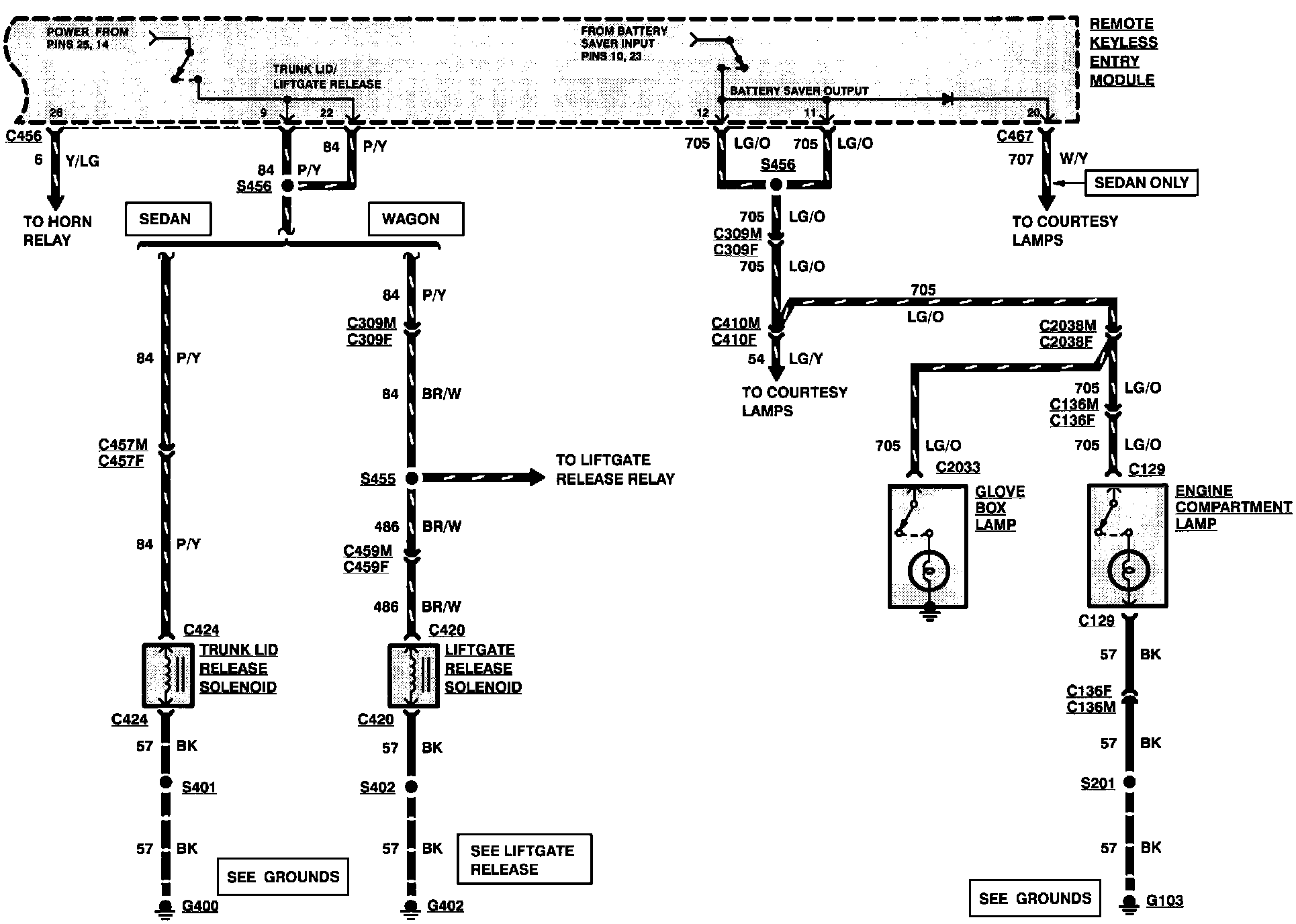

Remote Keyless Entry (Part 2 Of 5):

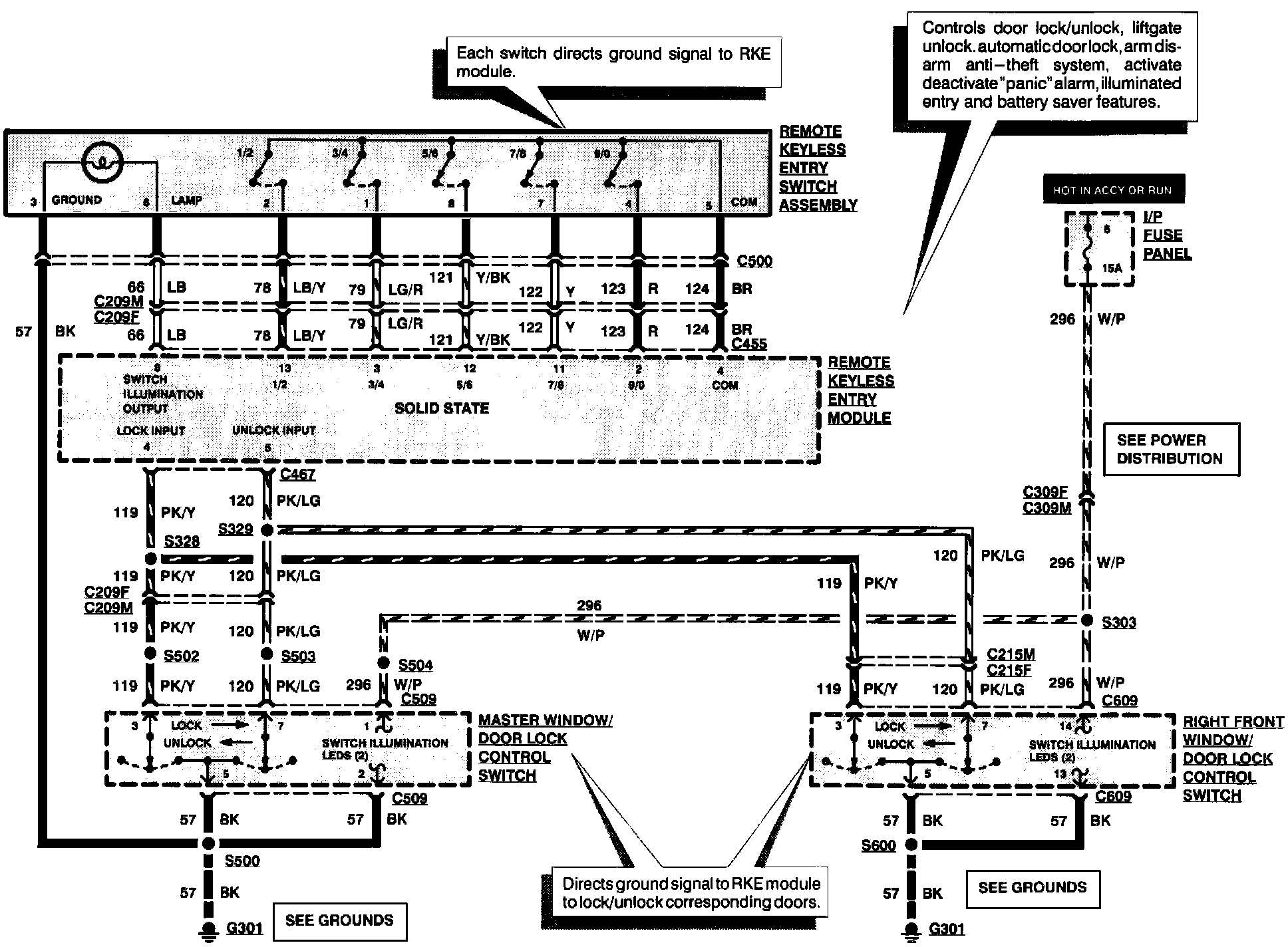

Remote Keyless Entry (Part 3 Of 5):

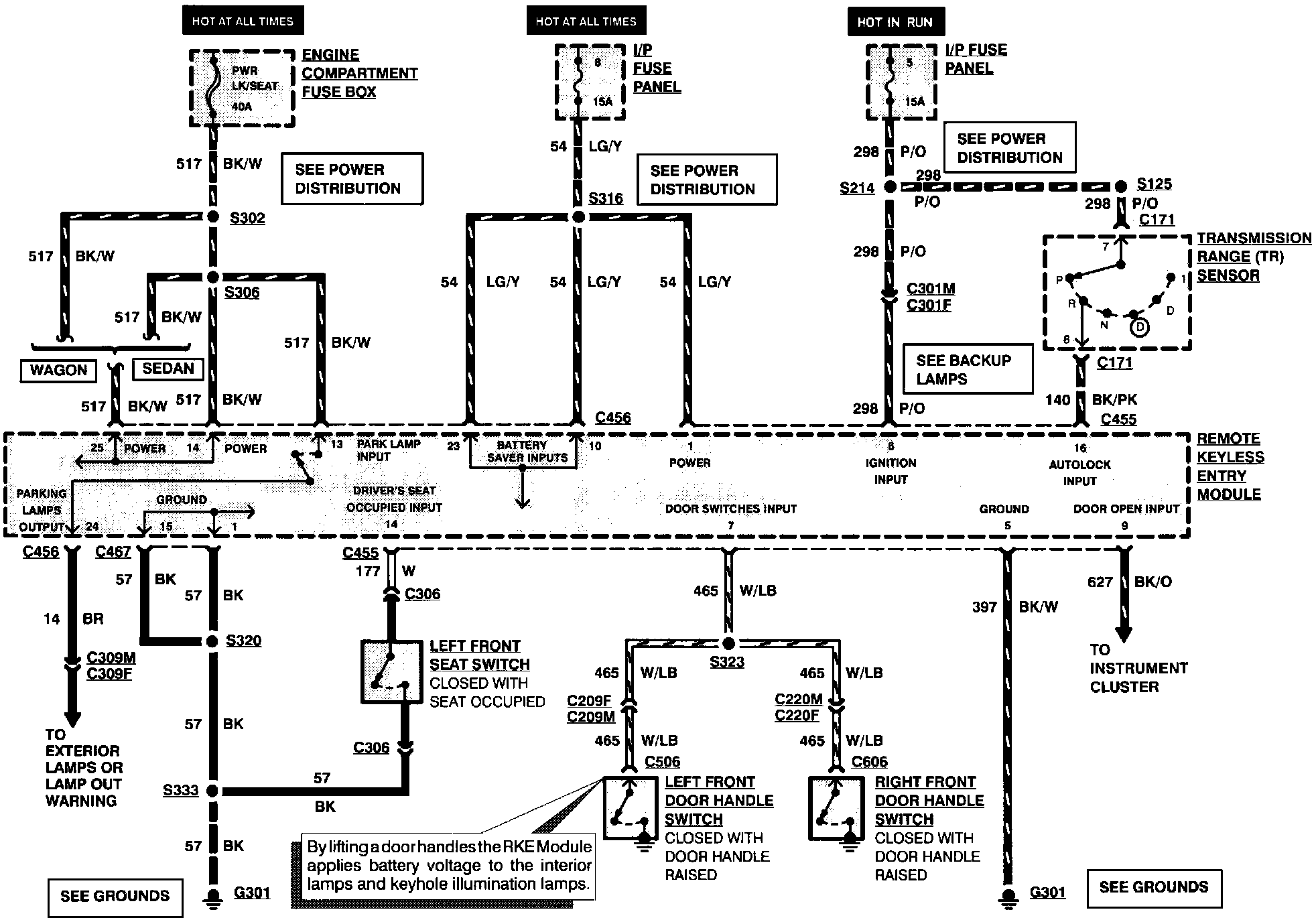

Remote Keyless Entry (Part 4 Of 5):

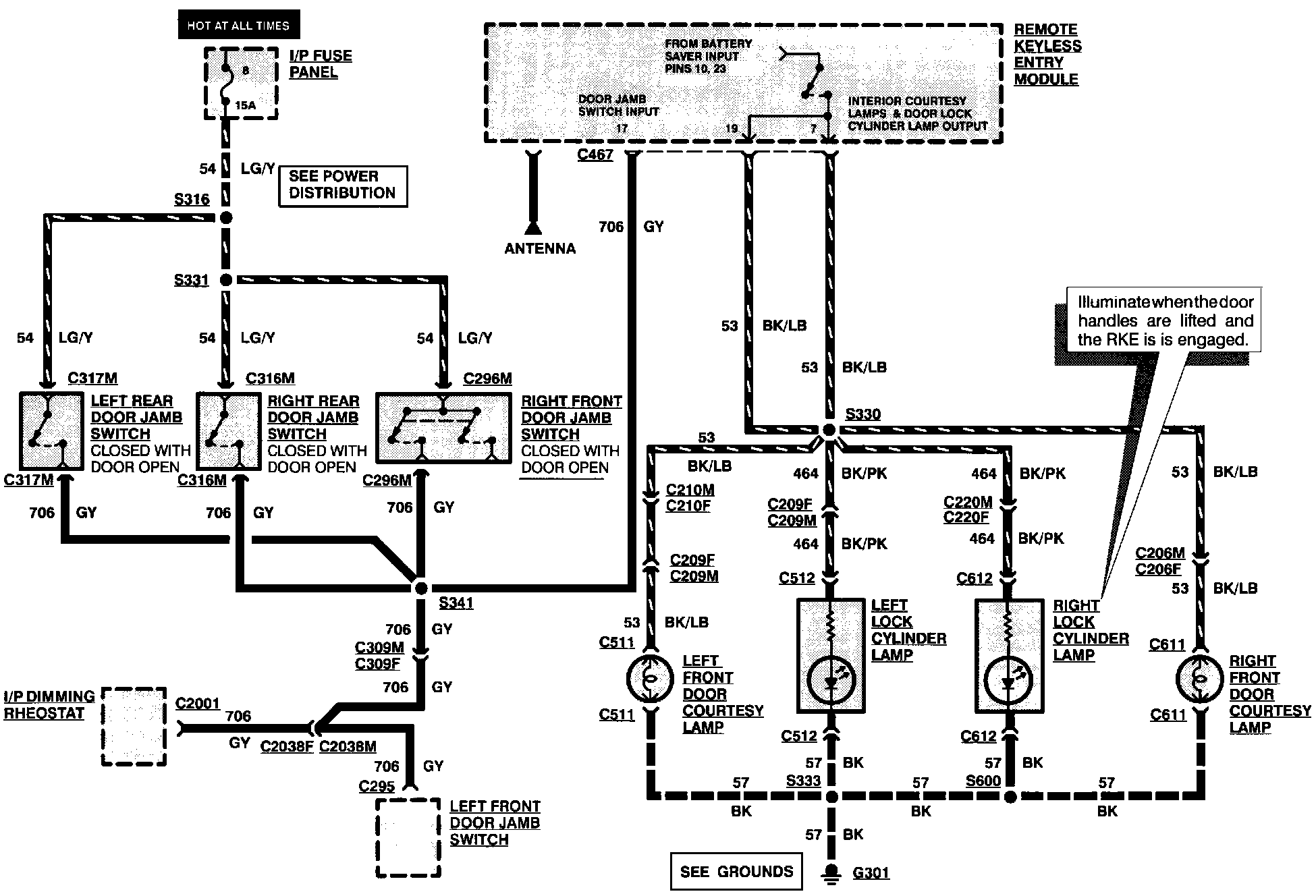

Remote Keyless Entry (Part 5 Of 5):
