Multiple Junction Connector
>>
C301
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
C301

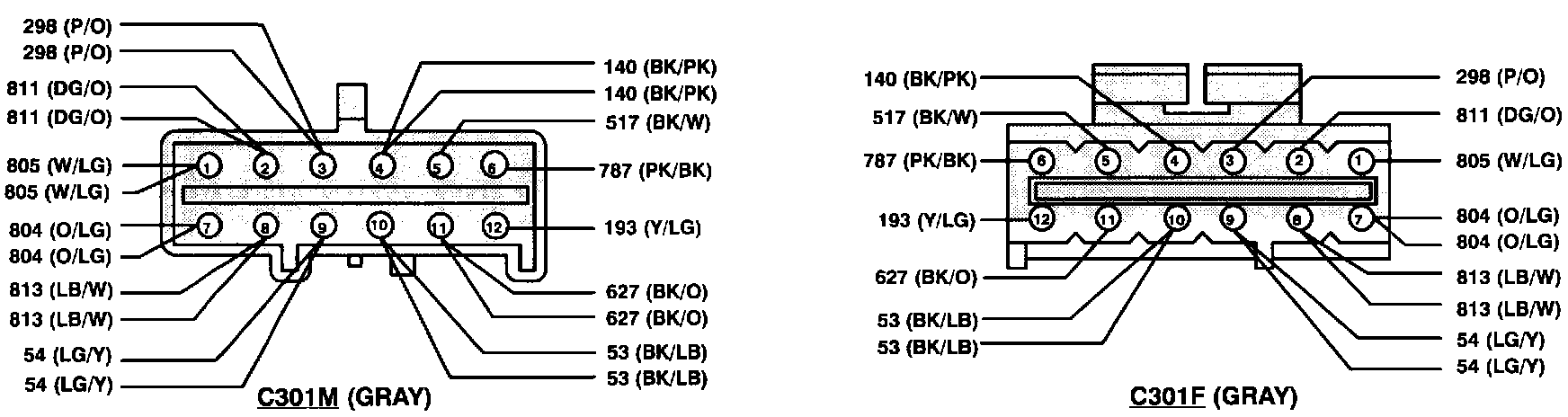

In Line Connector Faces - C301:
