Control Module HVAC

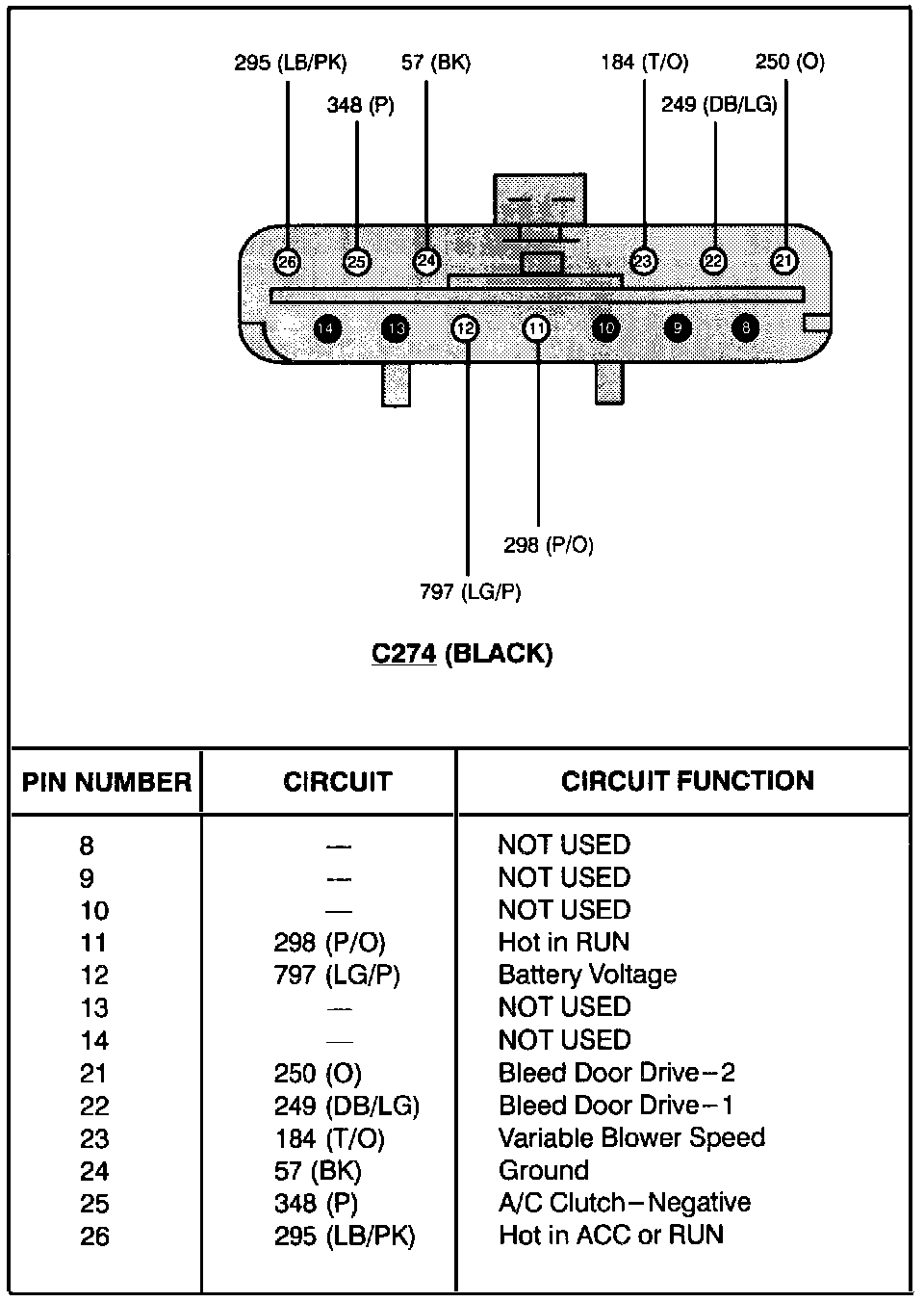

Electronic Automatic Temperature Control Module (C274):

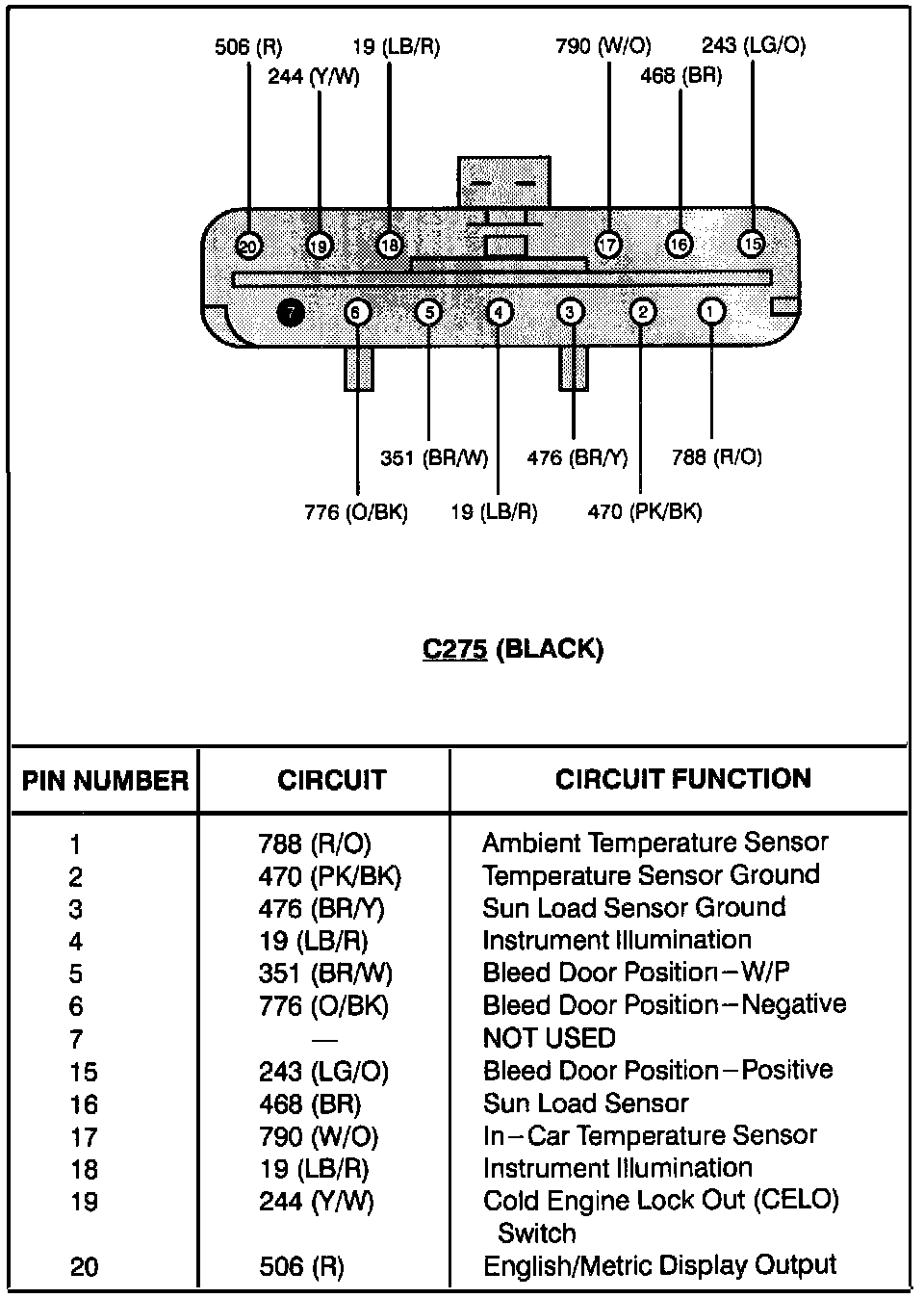

Electronic Automatic Temperature Control Module (C275):

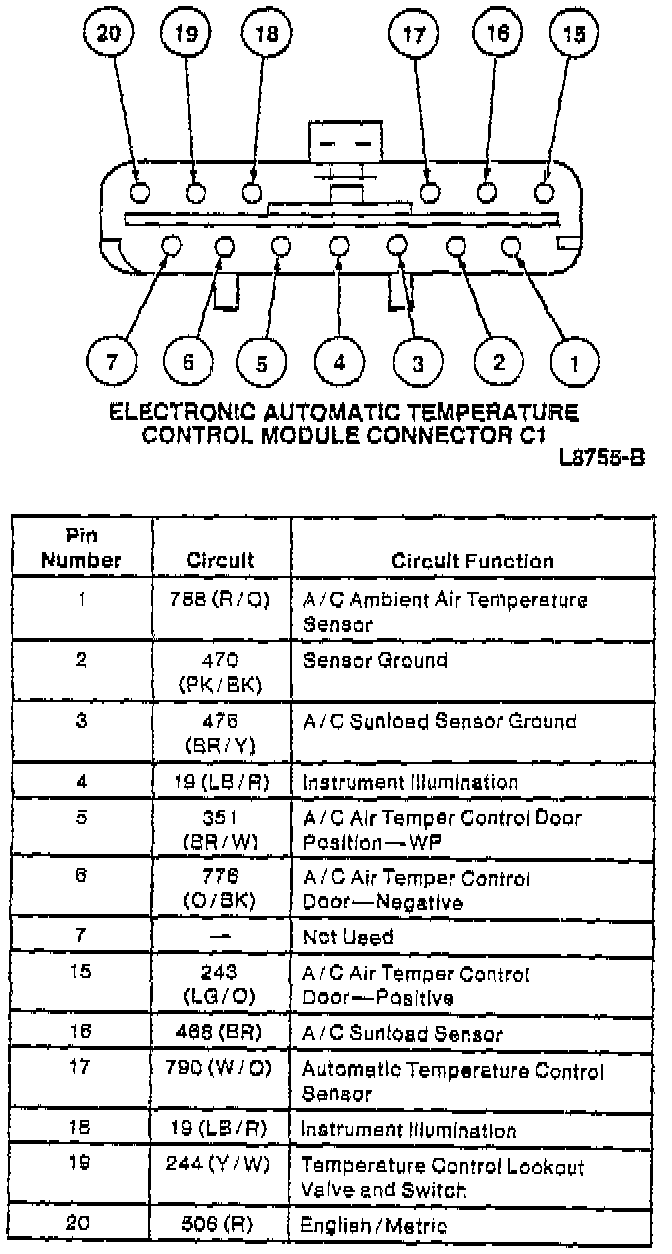

EATC Module Connector (Part 1):



EATC Module Connector (Part 2):
