Oxygen Sensor: Locations

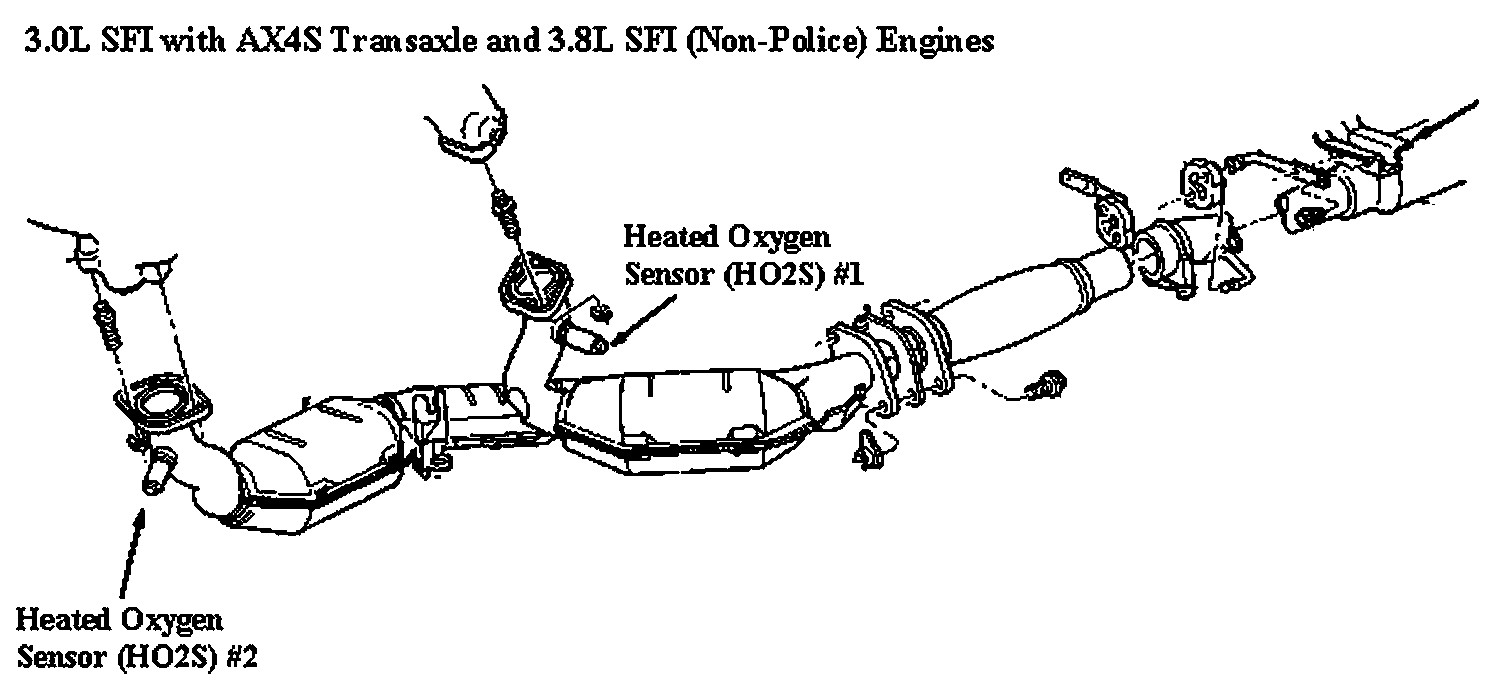

3.0 SFI w/AX4S Transaxle

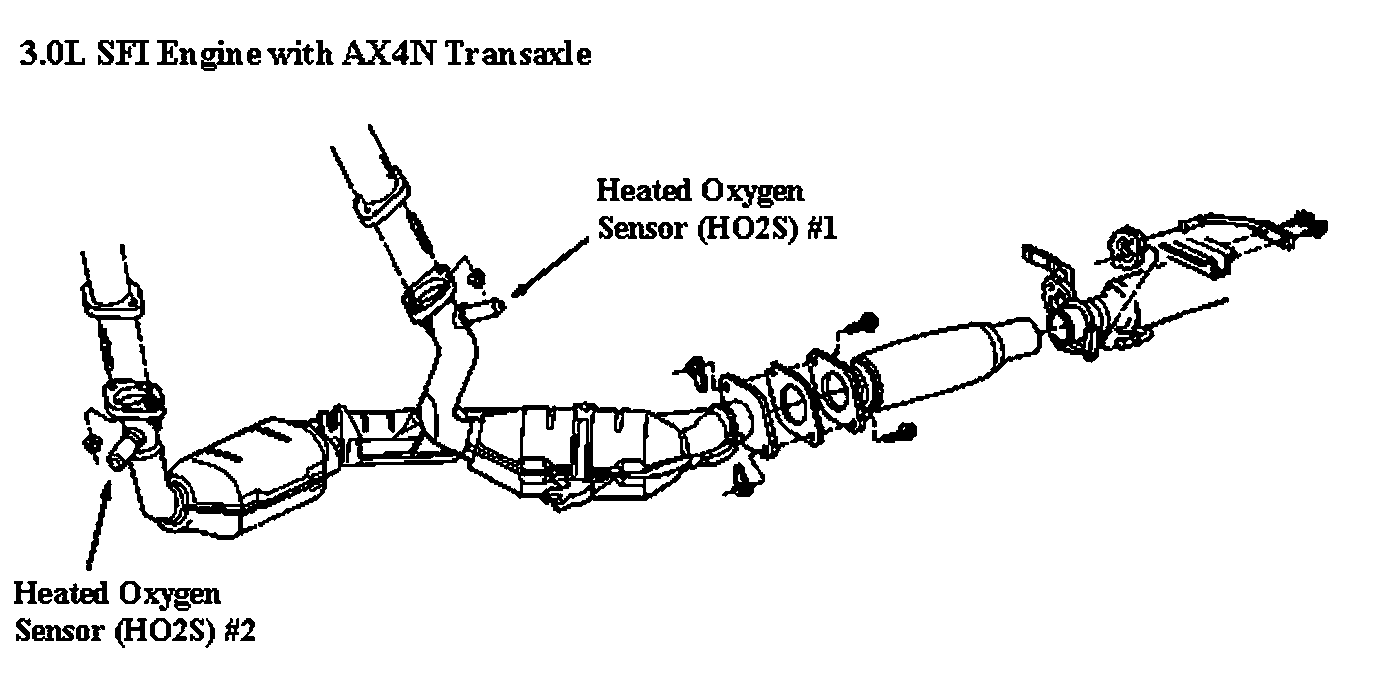

3.0 SFI w/AX4N Transaxle






The Heated Oxygen Sensors (HO2S) are located in the dual converter Y pipe.
