Alarm Module, (Vehicle Antitheft)

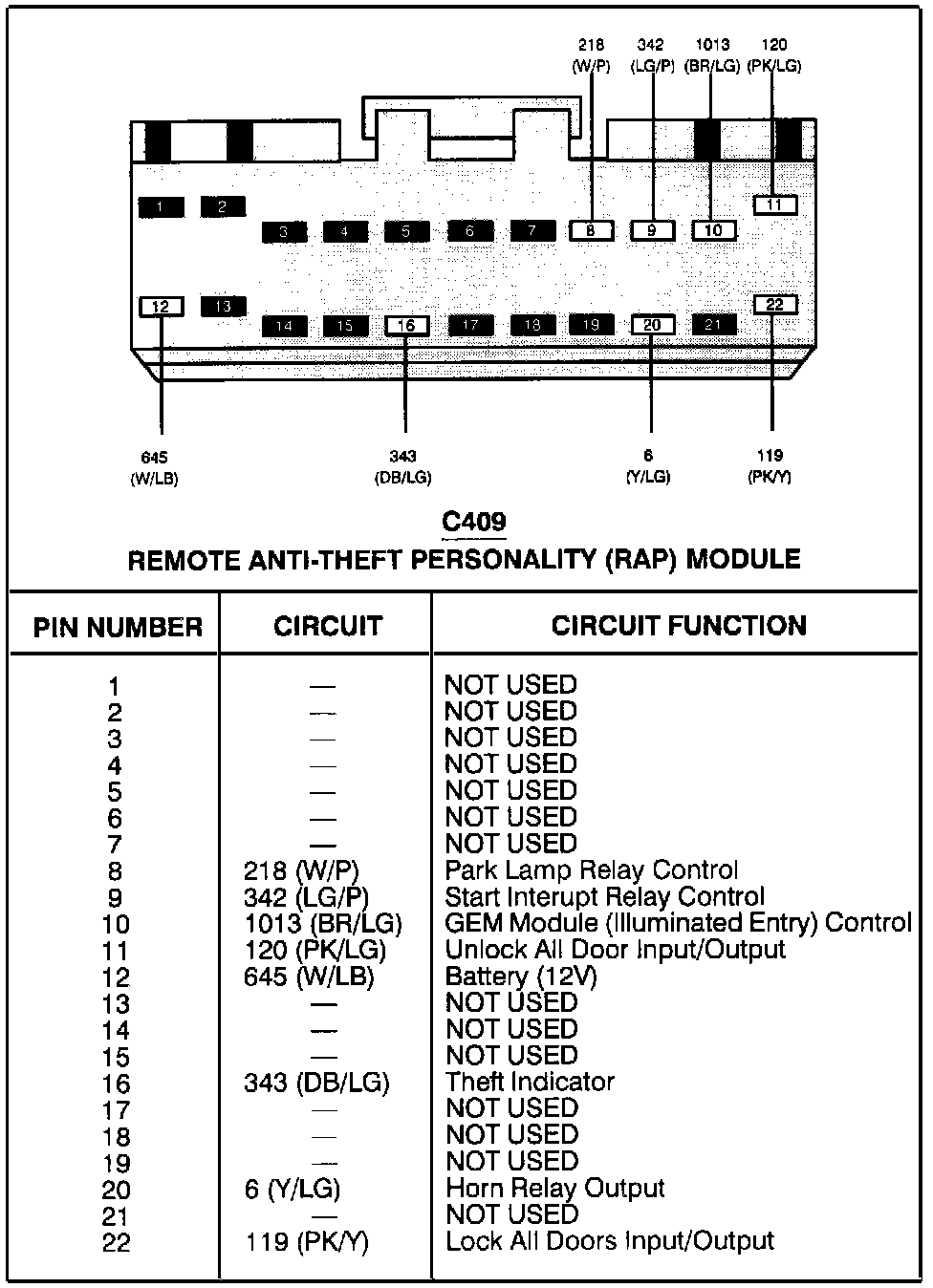

Remote Anti-Theft Personality Module (C409):

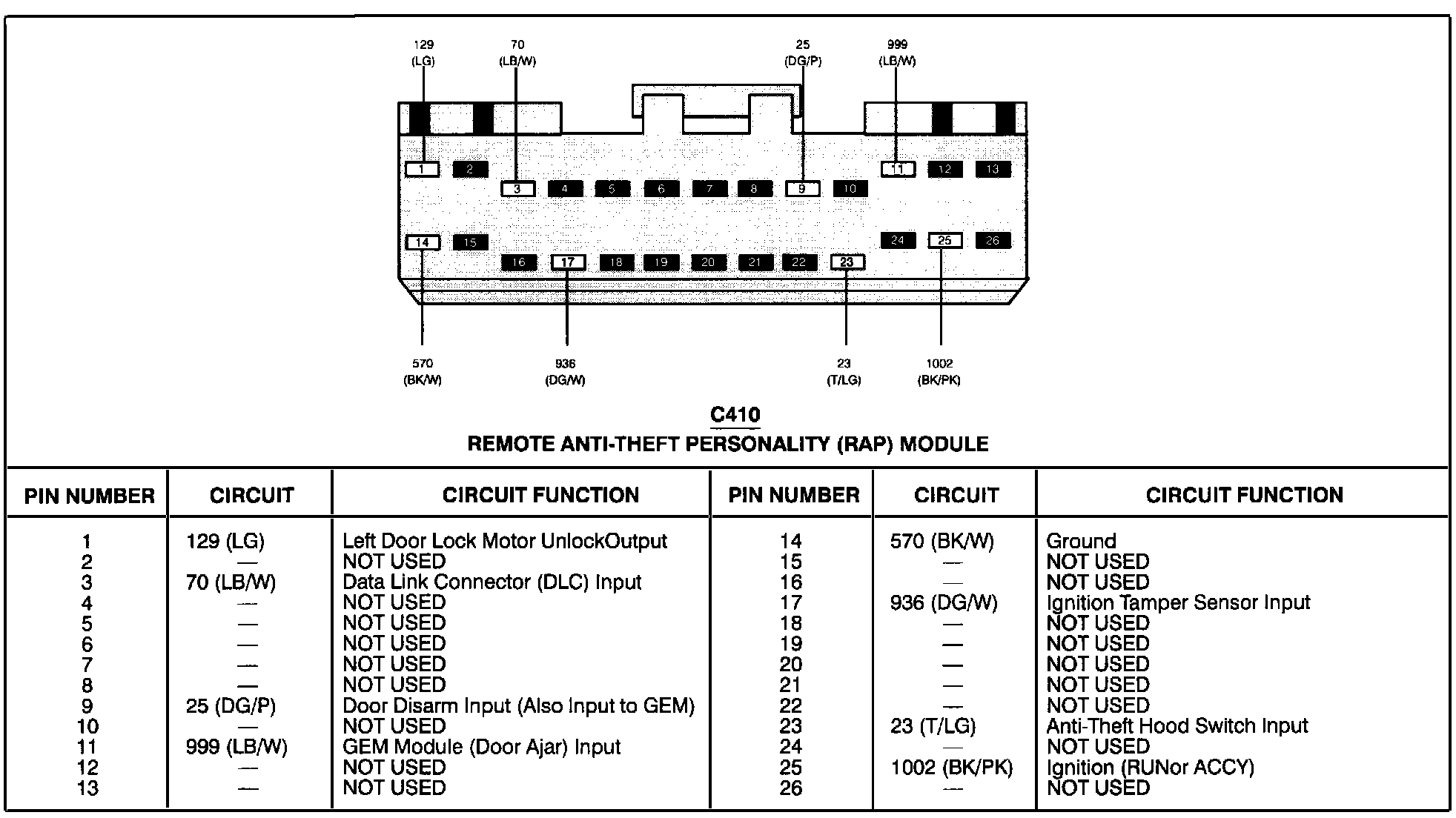

Remote Anti-Theft Personality Module (C410):
