Engine Controls

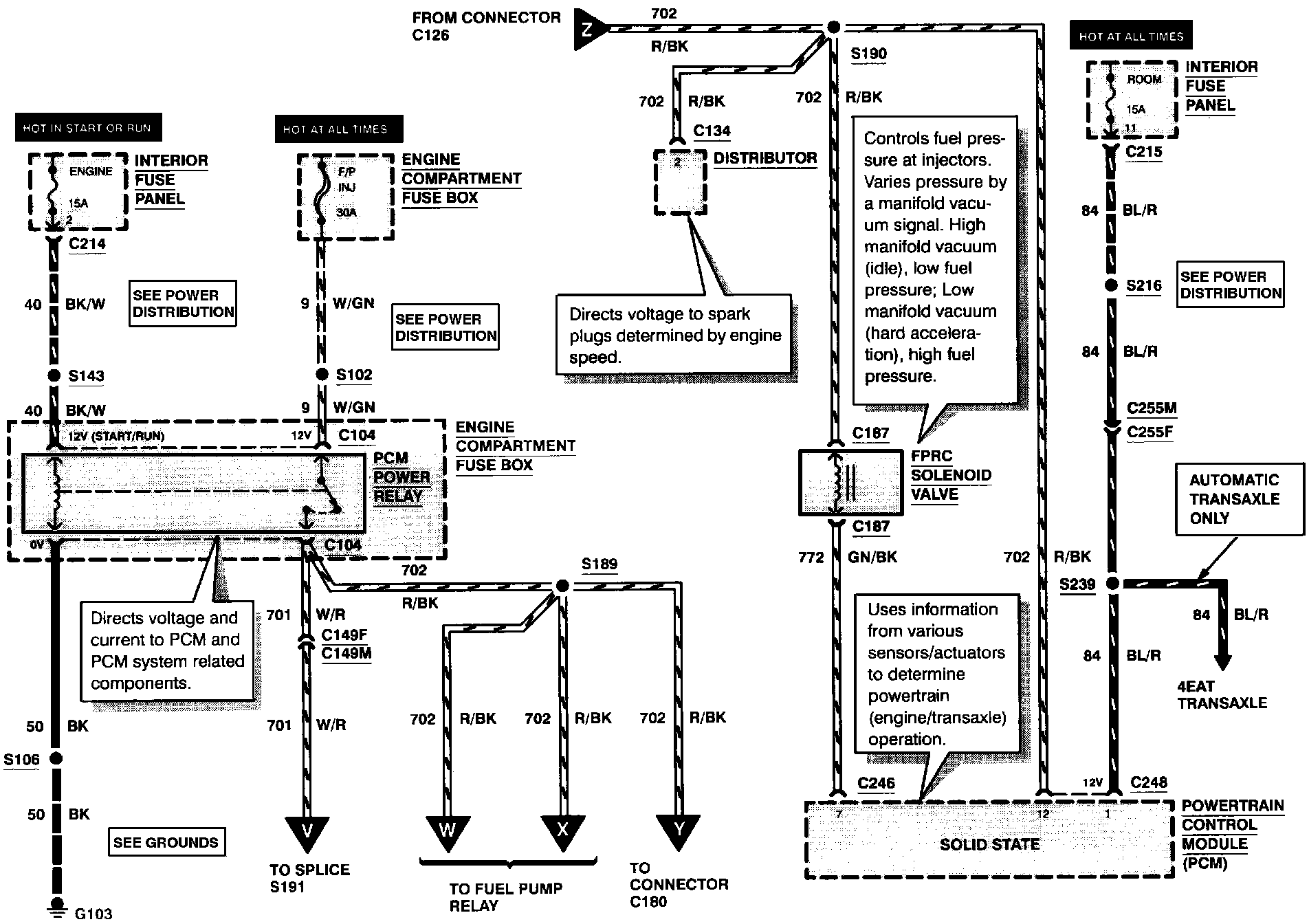

Electronic Engine Control (Part 1 Of 8):

FEEDBACK PRESSURE REGULATOR CONTROL SOLENOID VALVE
PCM POWER RELAY

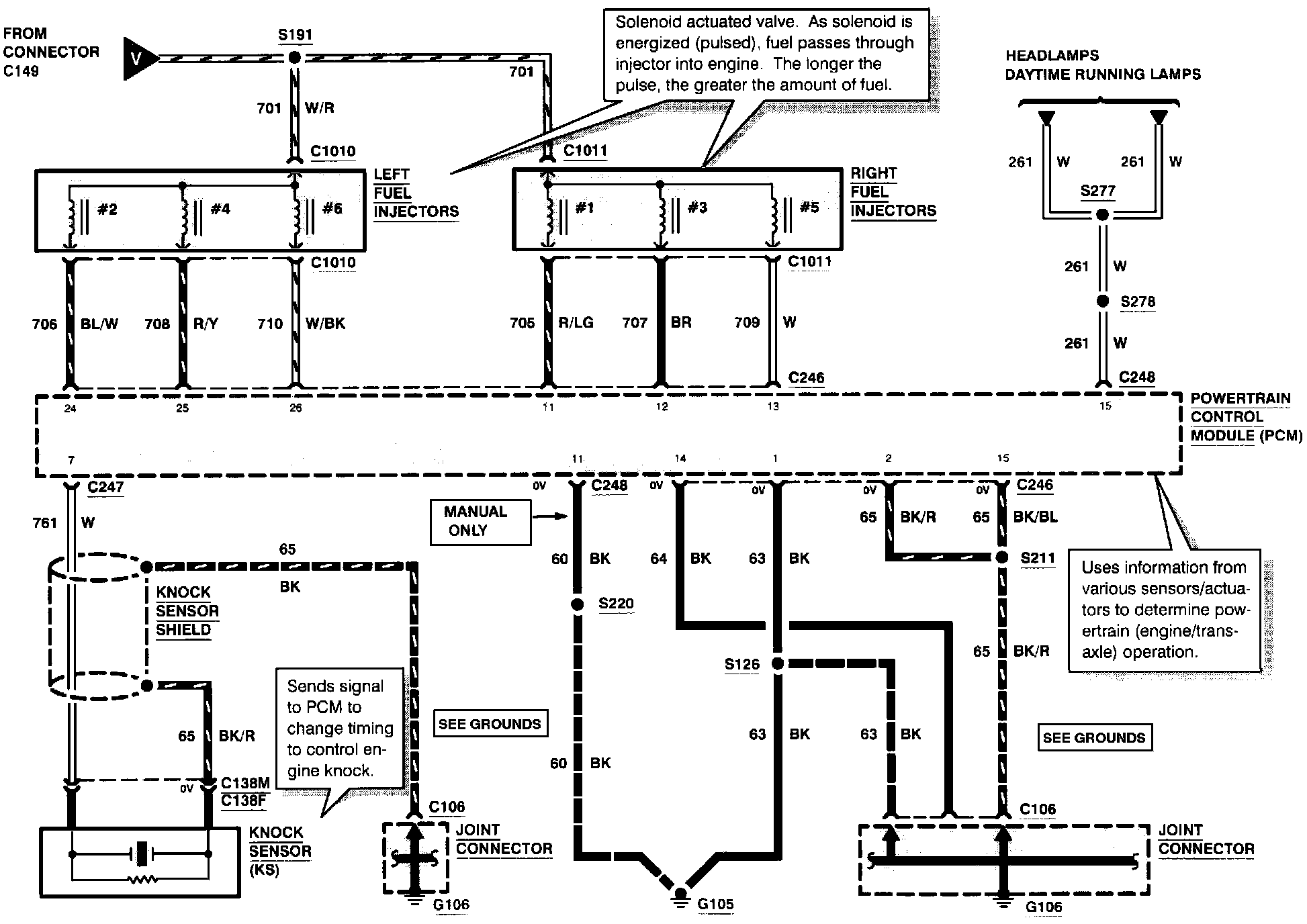

Electronic Engine Control (Part 2 Of 8):

KNOCK SENSOR
LEFT FUEL INJECTORS
RIGHT FUEL INJECTORS

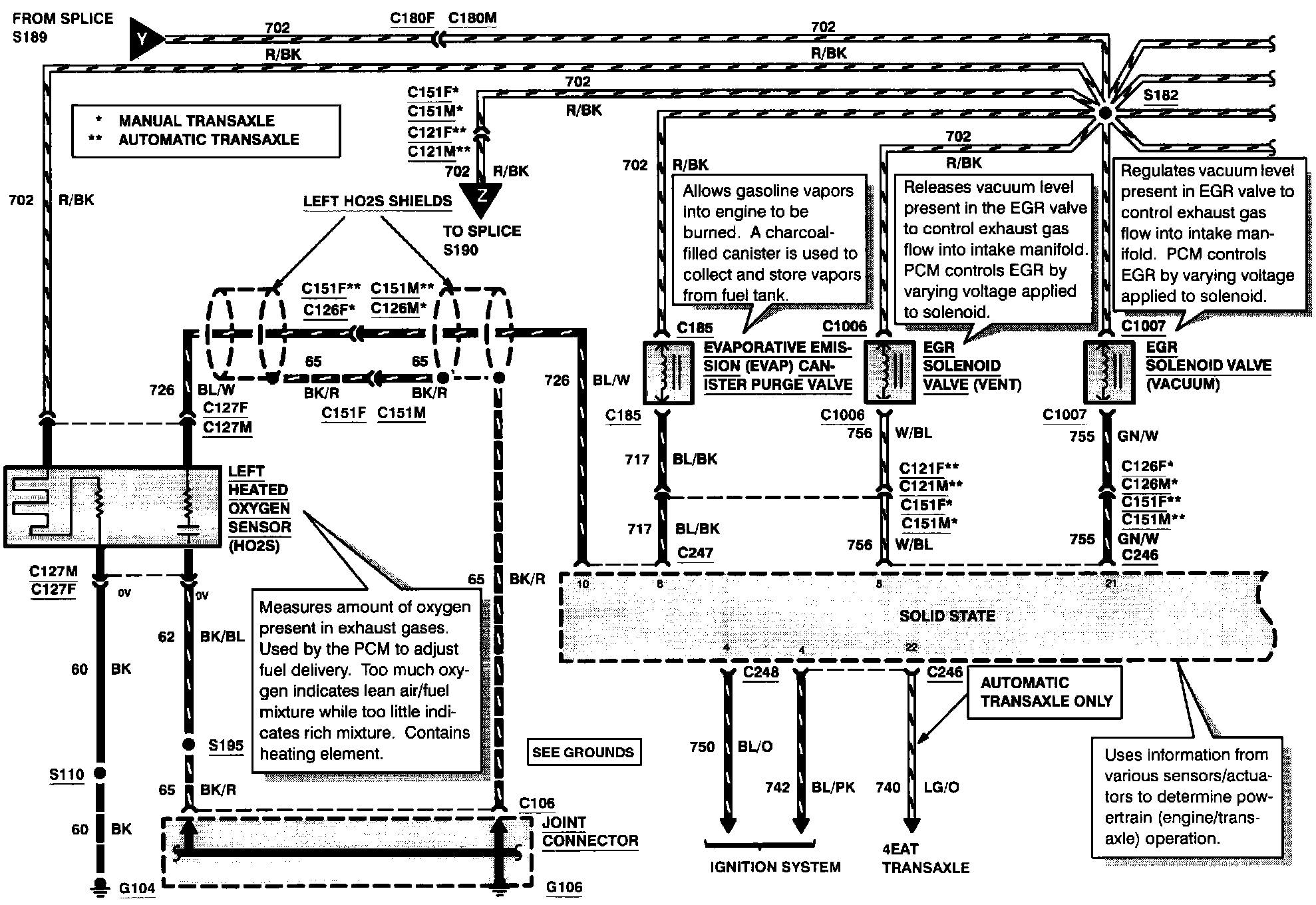

Electronic Engine Control (Part 3 Of 8):

EGR SOLENOID VALVE (VACUUM)
EGR SOLENOID VALVE (VENT)
EVAPORATIVE EMISSION CANISTER PURGE VALVE
LEFT HEATED OXYGEN SENSOR

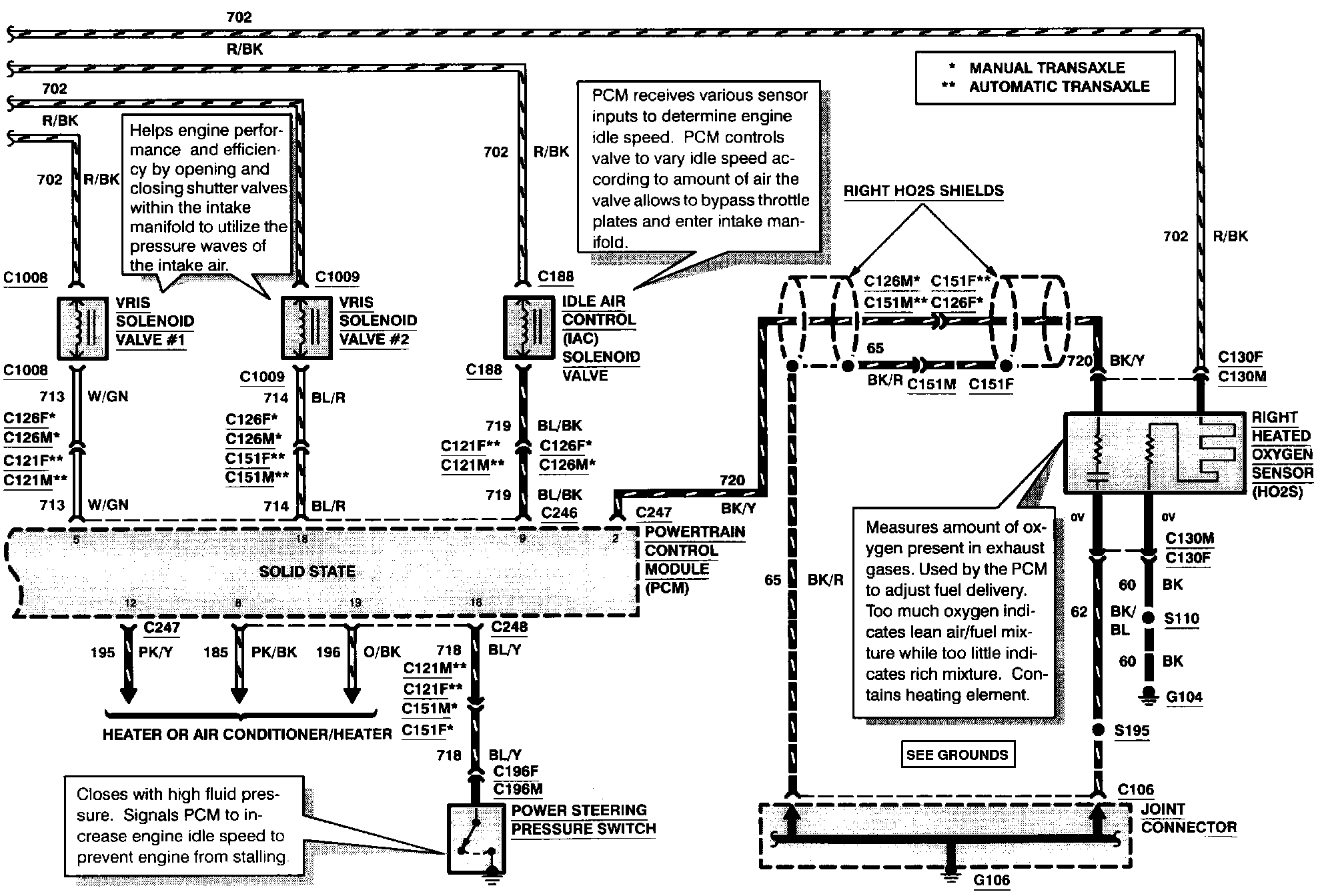

Electronic Engine Control (Part 4 Of 8):

IDLE AIR CONTROL SOLENOID VALVE
POWER STEERING PRESSURE SWITCH
RIGHT HEATED OXYGEN SENSOR
VARIABLE RESONANCE INDUCTION SYSTEM SOLENOID VALVE #1
VARIABLE RESONANCE INDUCTION SYSTEM SOLENOID VALVE #2

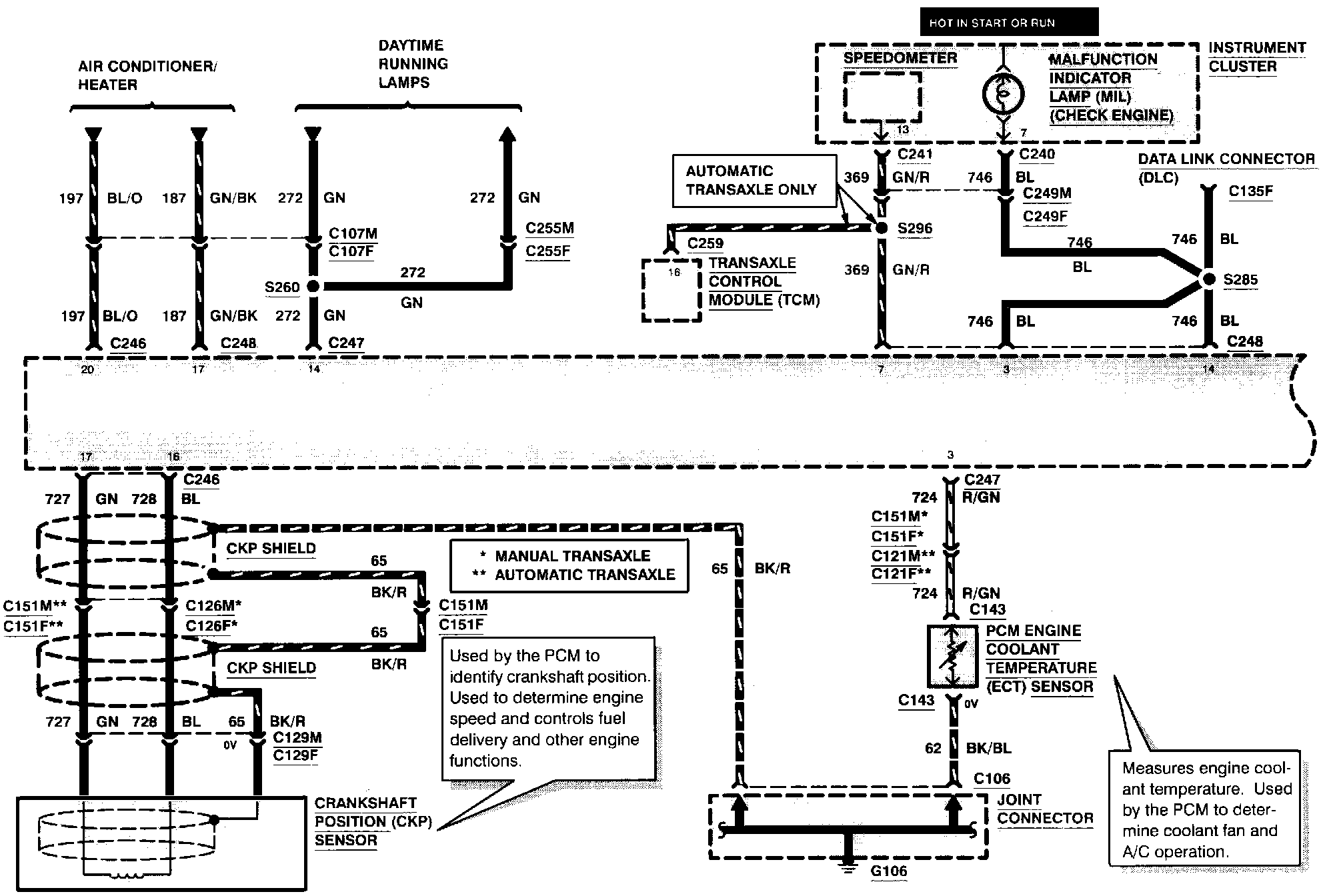

Electronic Engine Control (Part 5 Of 8):

CRANKSHAFT POSITION SENSOR
MALFUNCTION INDICATOR LAMP
PCM ENGINE COOLANT TEMPERATURE SENSOR

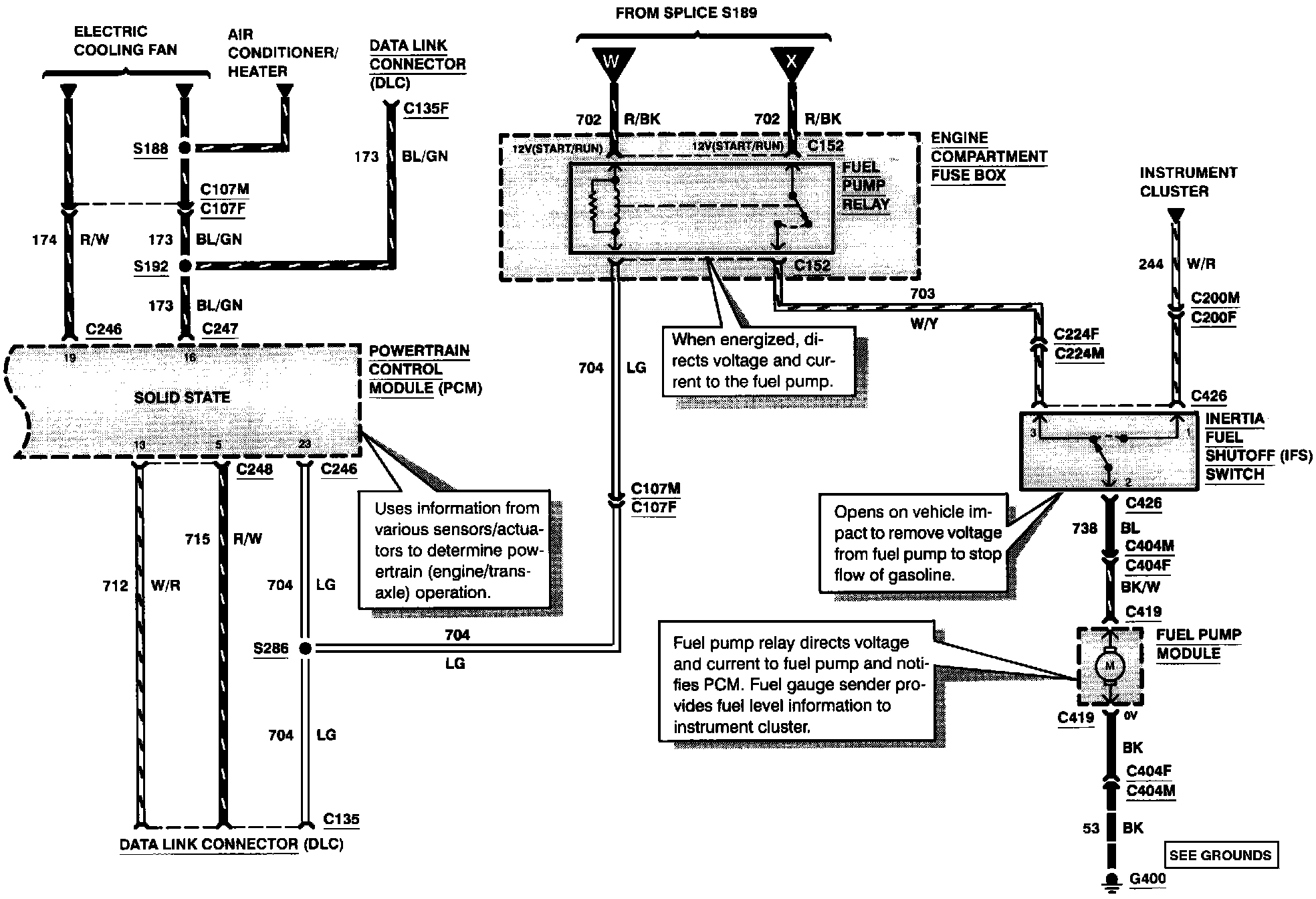

Electronic Engine Control (Part 6 Of 8):

FUEL PUMP RELAY
INERTIA FUEL SHUTOFF SWITCH

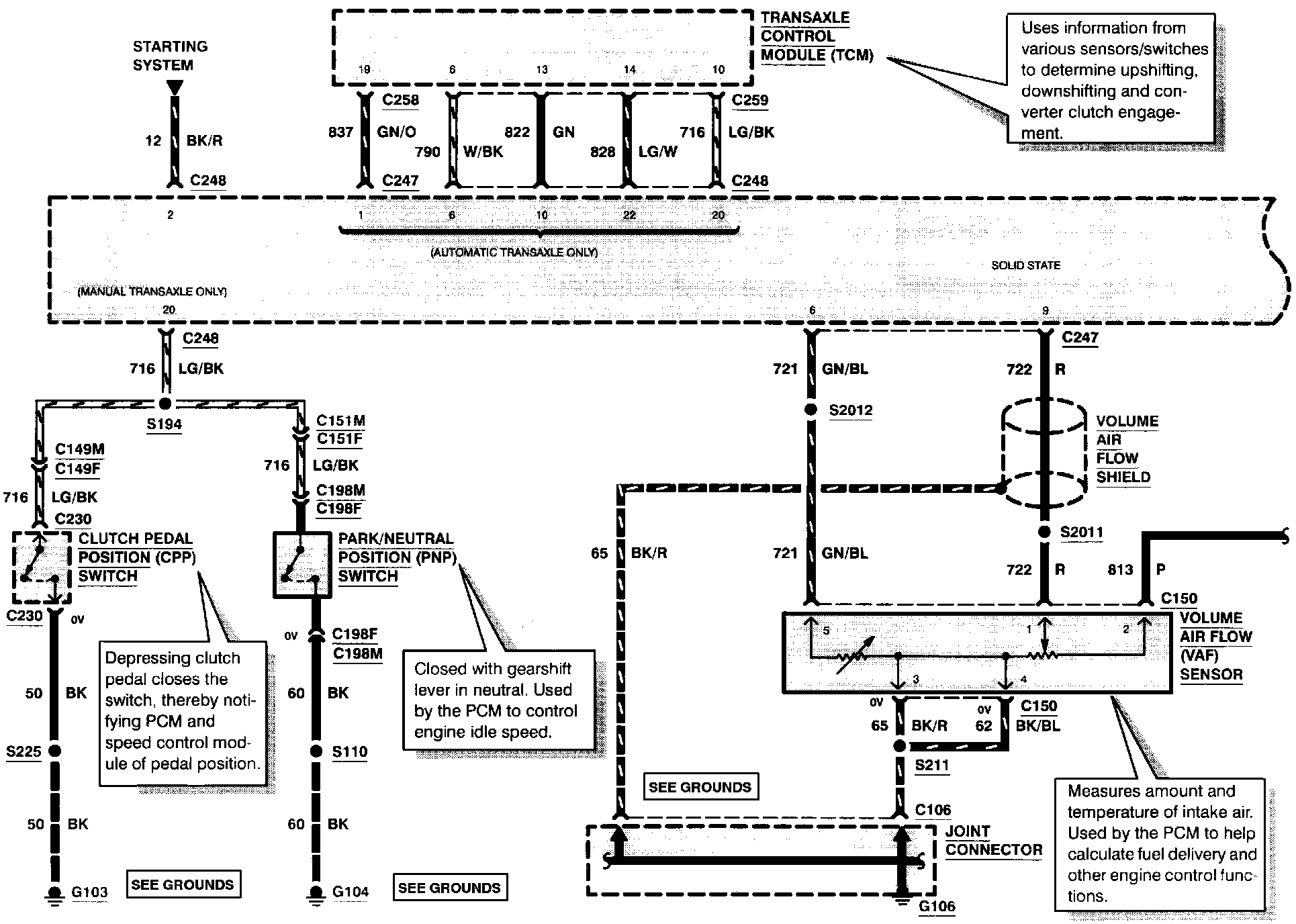

Electronic Engine Control (Part 7 Of 8):

PARK/NEUTRAL POSITION SWITCH
VOLUME AIR FLOW SENSOR

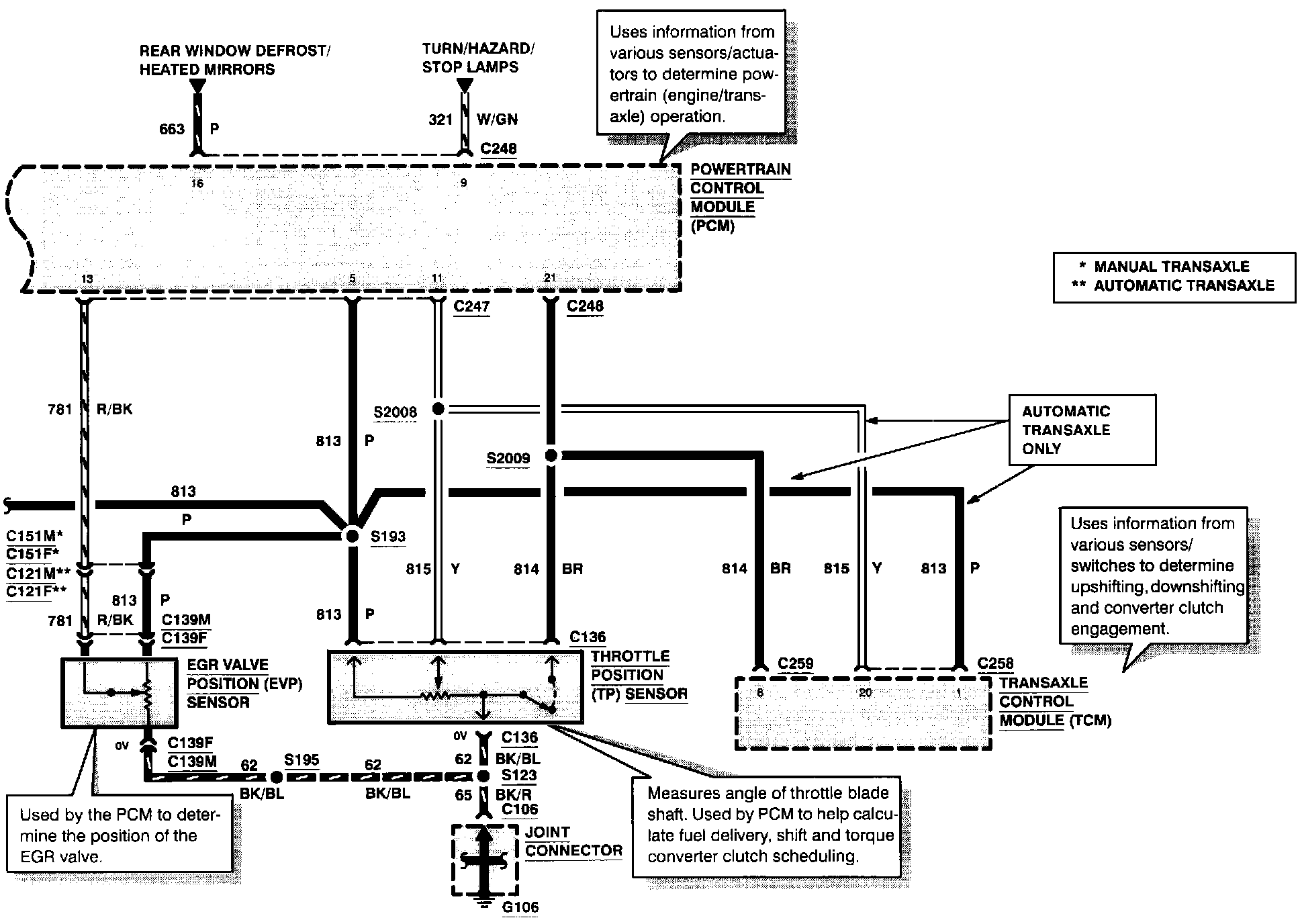

Electronic Engine Control (Part 8 Of 8):

EGR VALVE POSITION SENSOR
THROTTLE POSITION SENSOR
