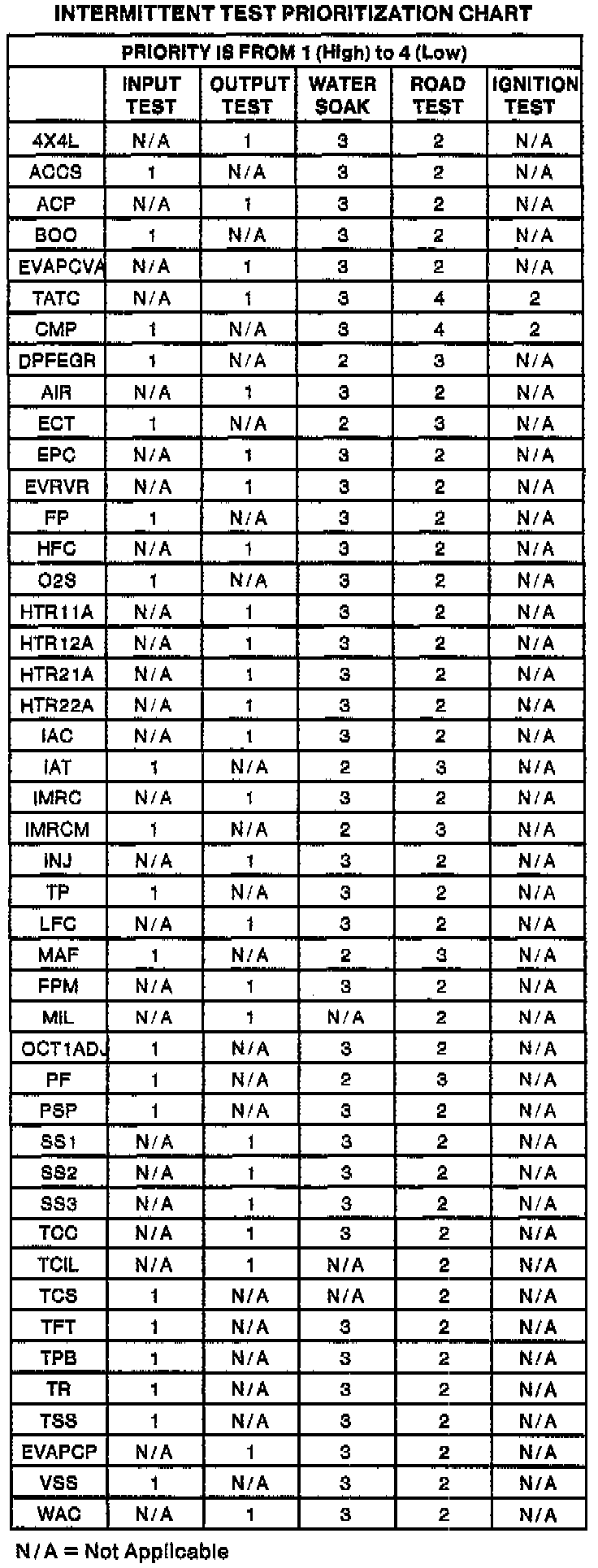

Intermittent Test Prioritization Chart







Use this chart to choose which Intermittent test to run for the circuit or component. If the vehicle is a no-start, the ignition test should be run first.
