Speedometer Module: Locations

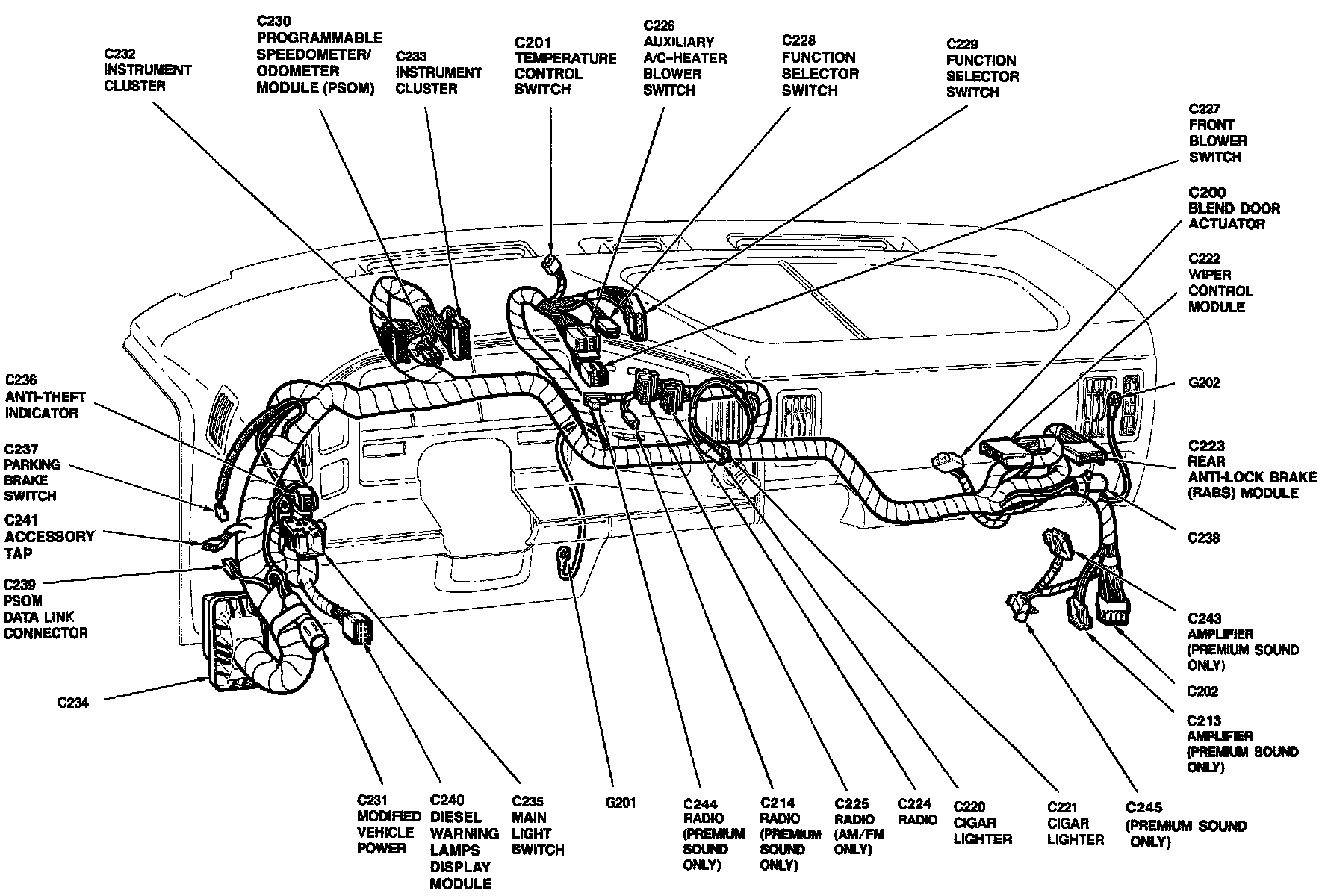

Instrument Panel View:





The Programmable Speedometer/Odometer Module is located behind left side of the instrument panel.
