With 4R70W

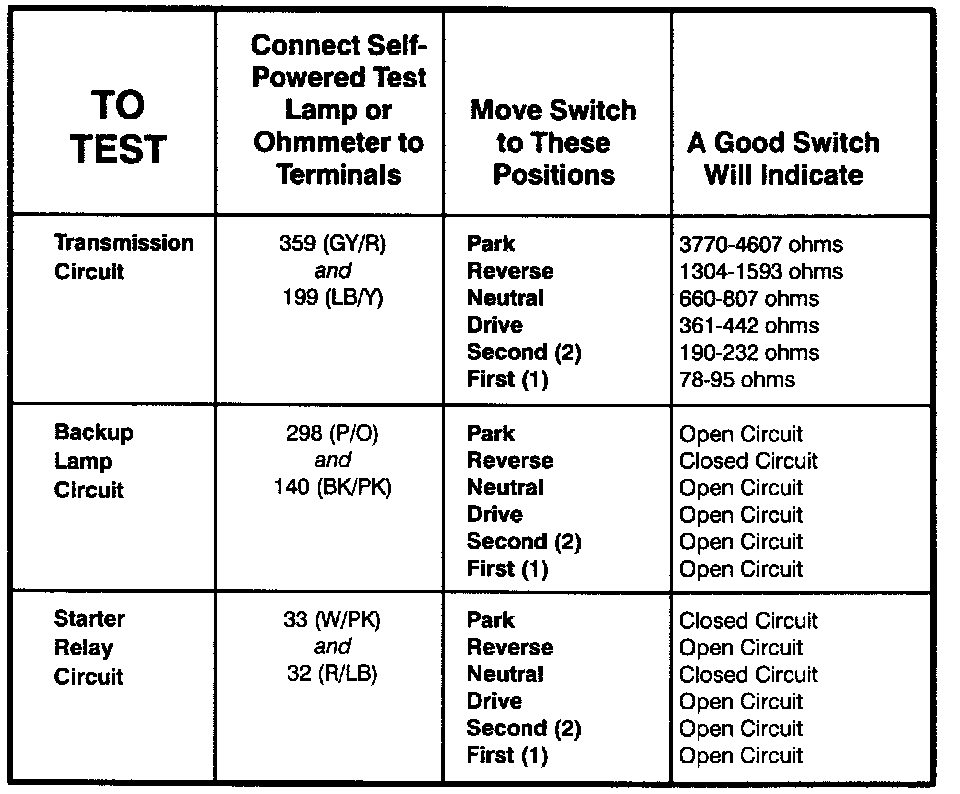

Transmission Range Sensor - Component Testing Procedure:




Transmission Range Sensor - Terminal Locations (With 4R70W Transmission):




Transmission Range Sensor - Schematic:
