Home >> Ford >> 1995 >> E 150 Van V8-351 5.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations >> C162
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

C162

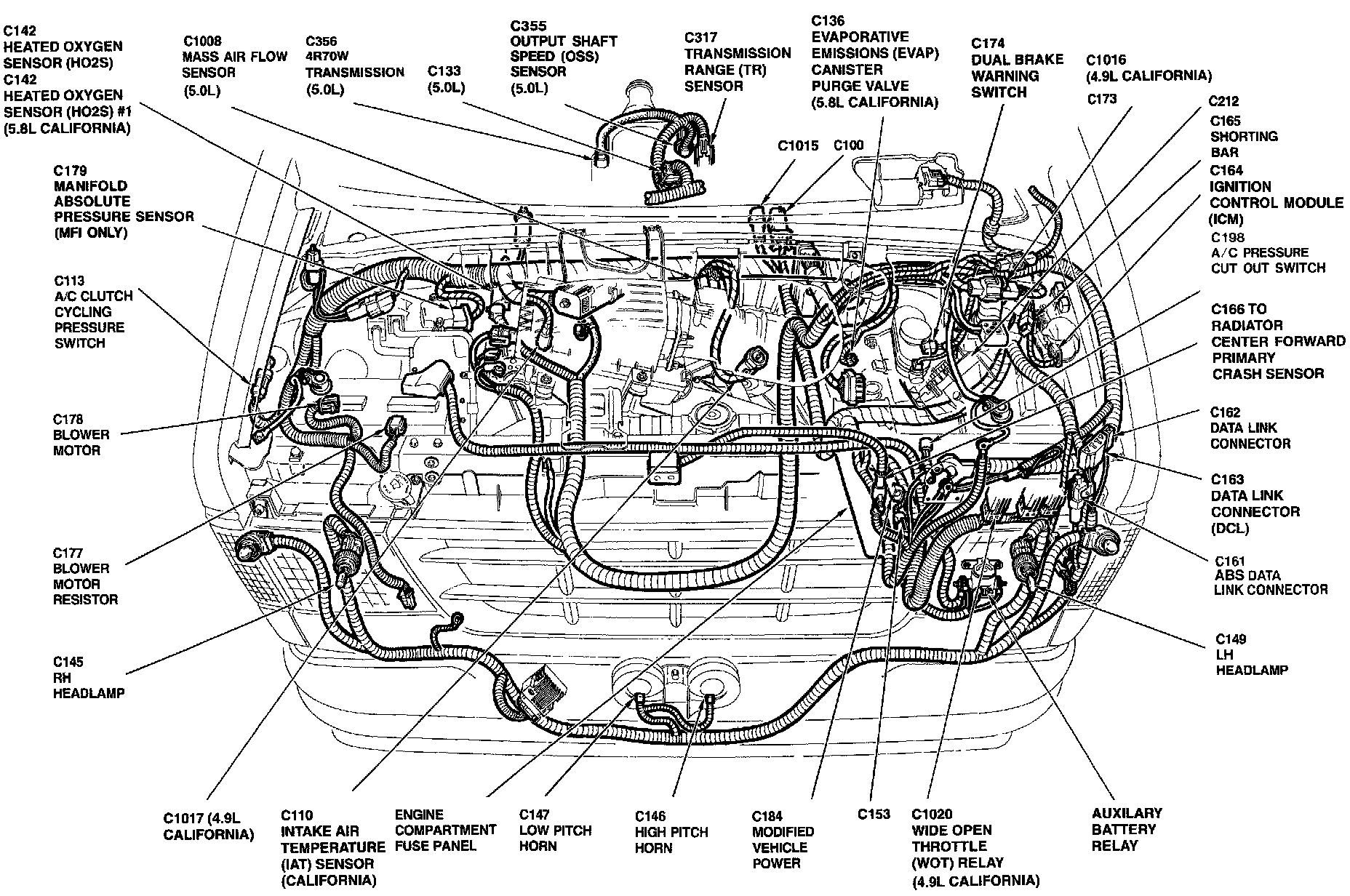

Engine Compartment View - SFI Gas (Shown) MFI Gas (Typical):





The Data Link Connector is located at the left front corner of the engine compartment.
