Engine Compartment Fuse Box

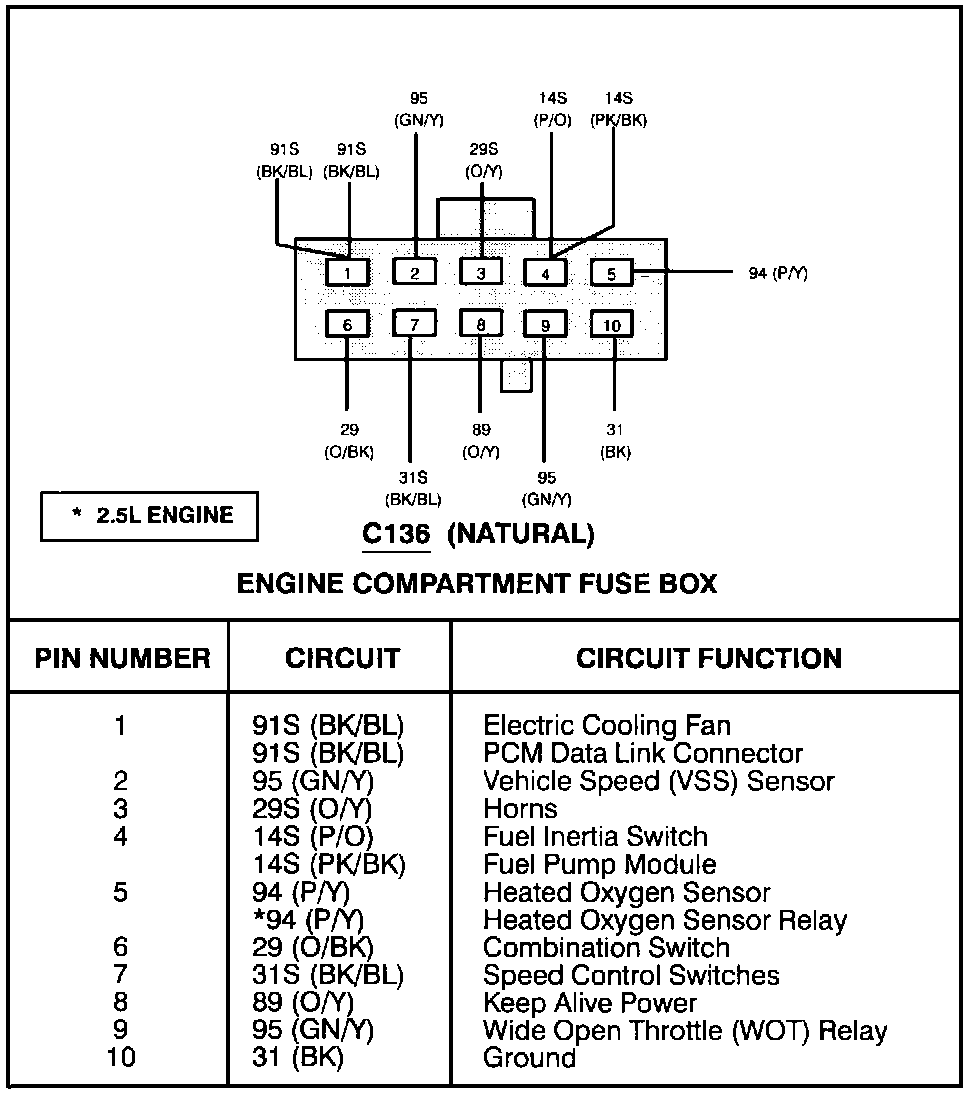

Engine Compartment Fuse Box (C136):



Engine Compartment Fuse Box (C137):
