Electronic Brake Control Module

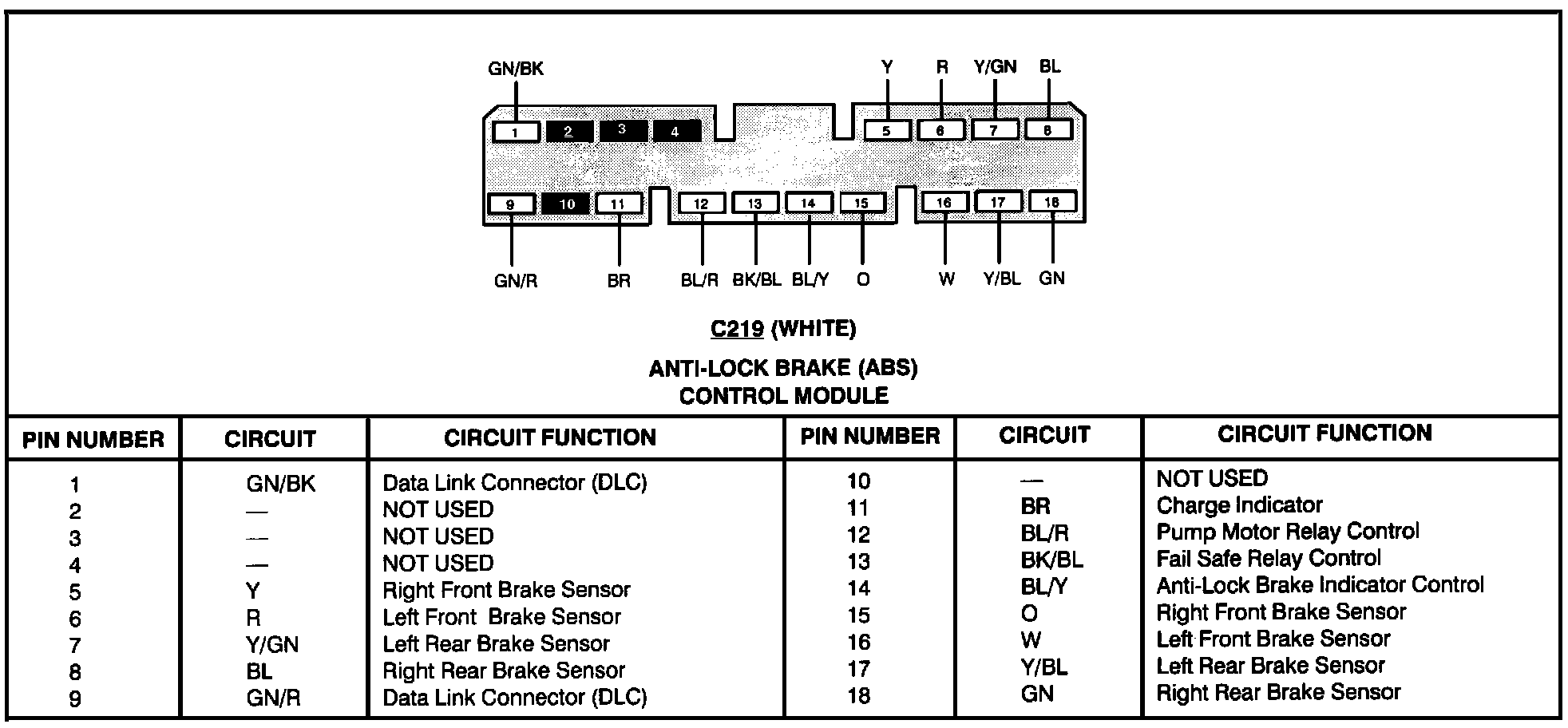

Anti-Lock Brake System Control Module (C219):

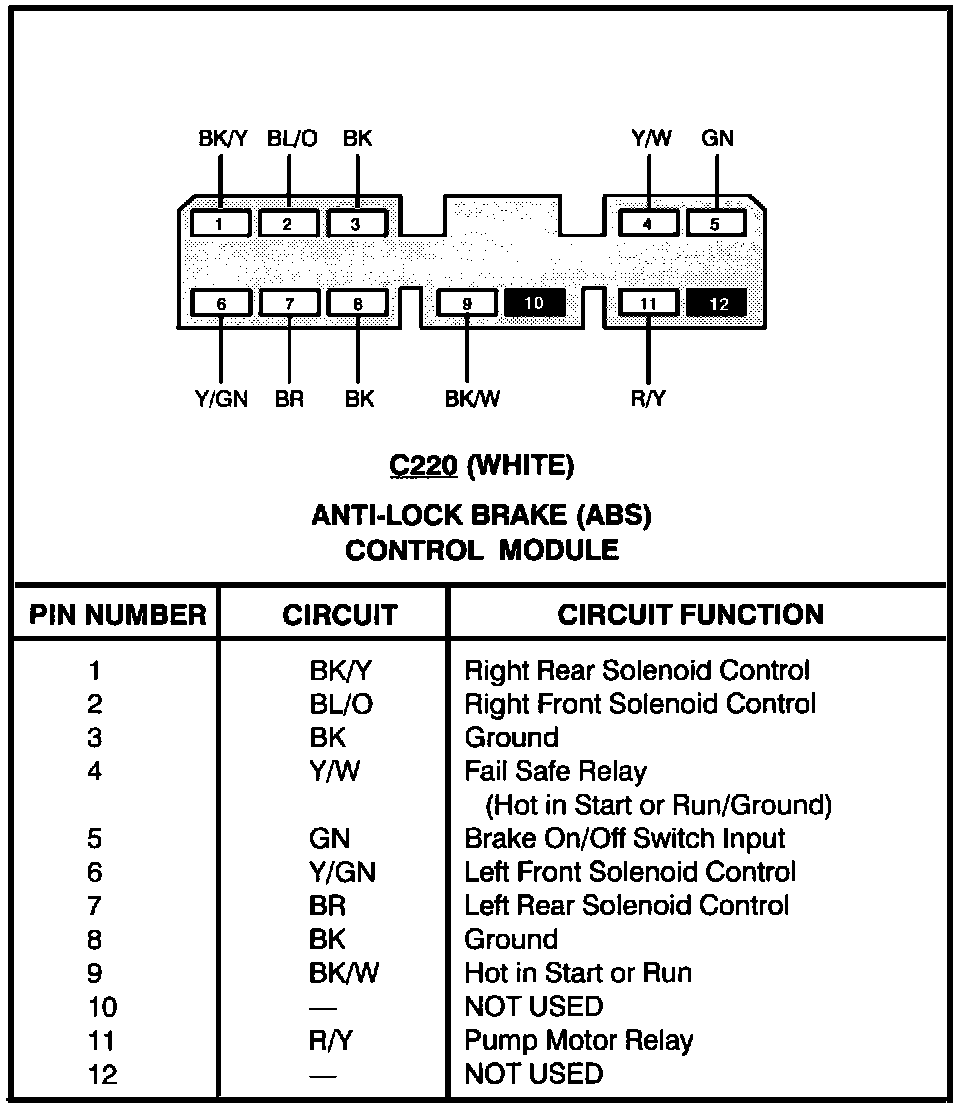

Anti-Lock Brake System Control Module (C220):
