Transmission Control Systems

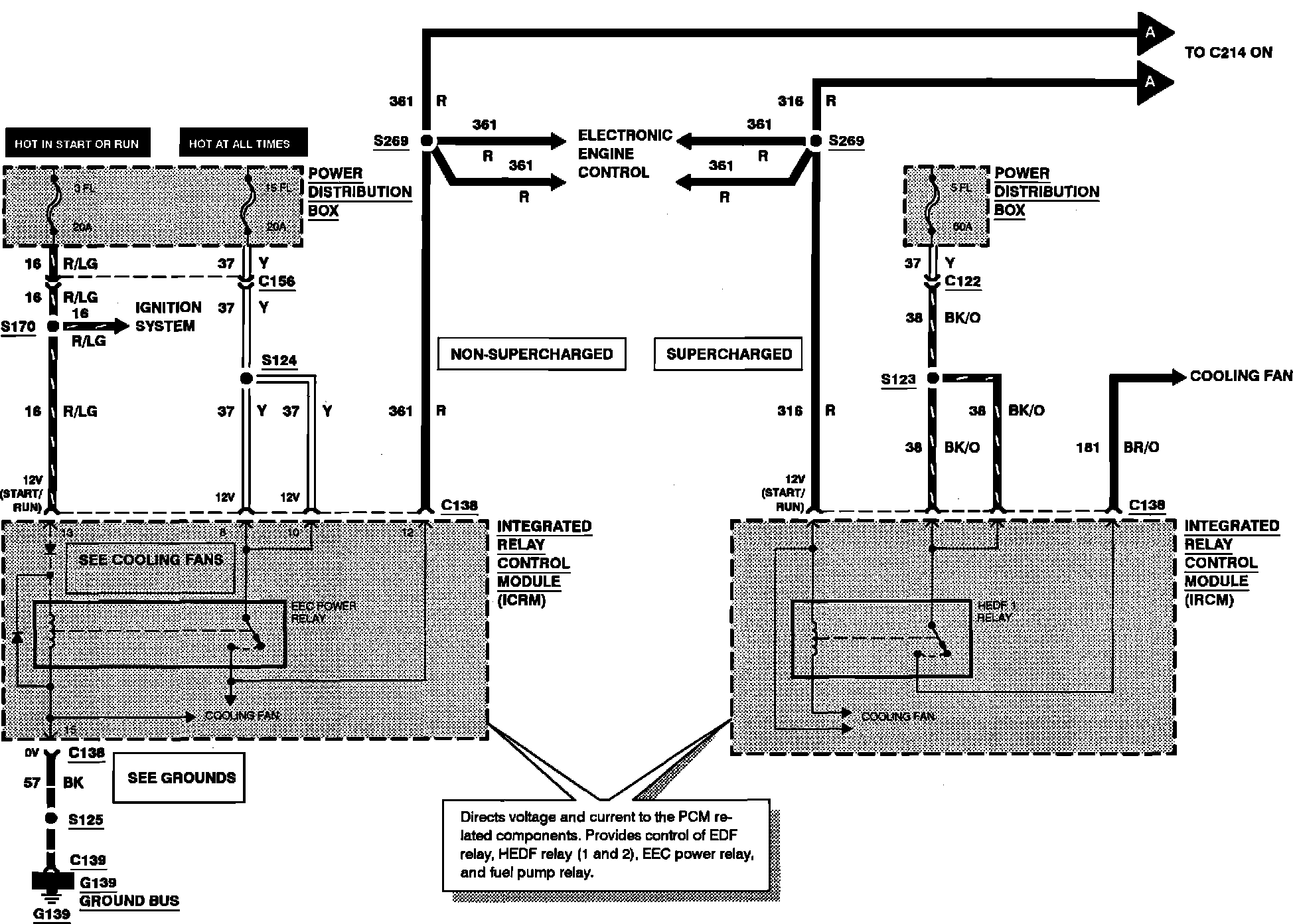

Electronic Automatic Transmission (4R70W):

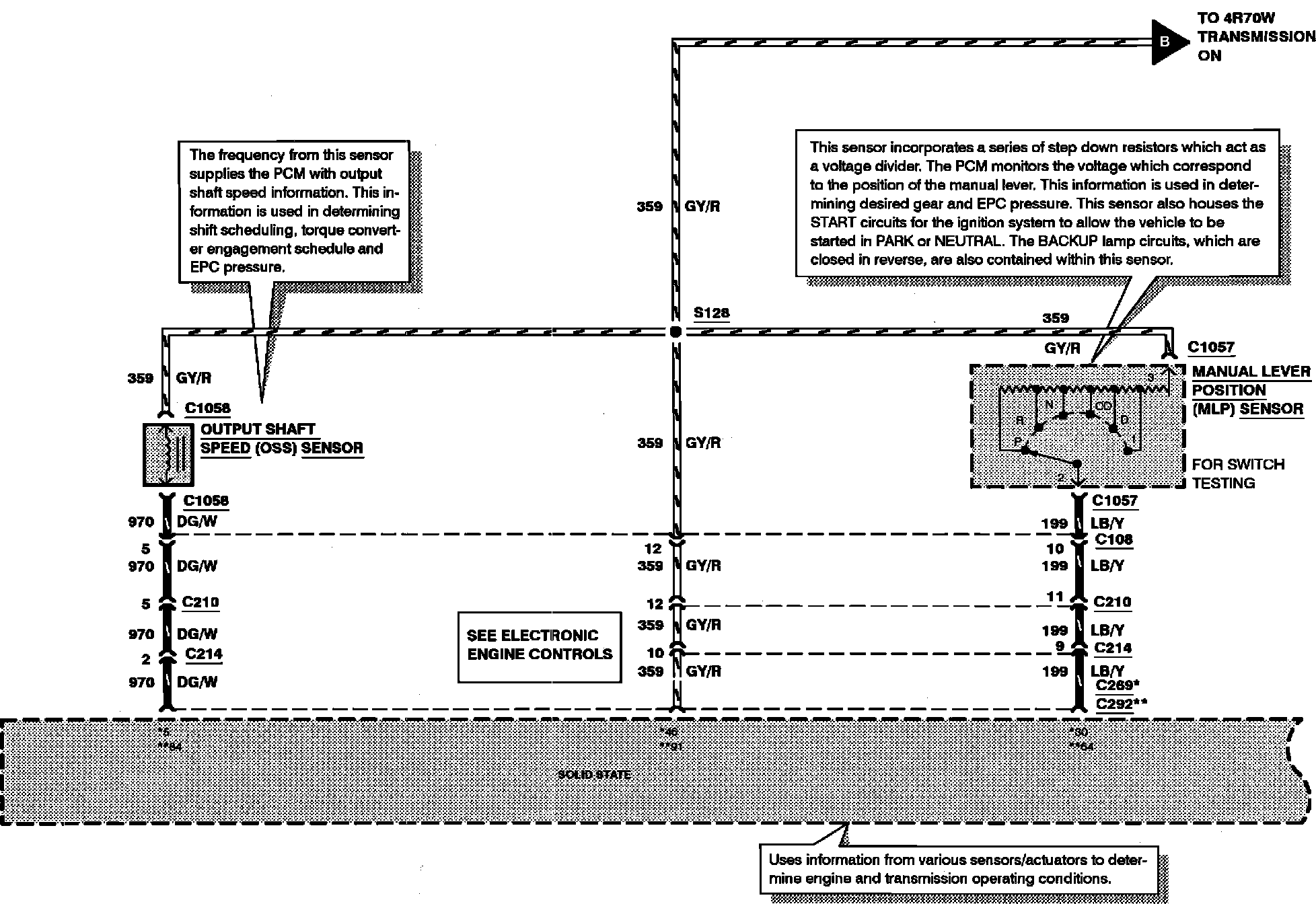

Electronic Automatic Transmission (4R70W):

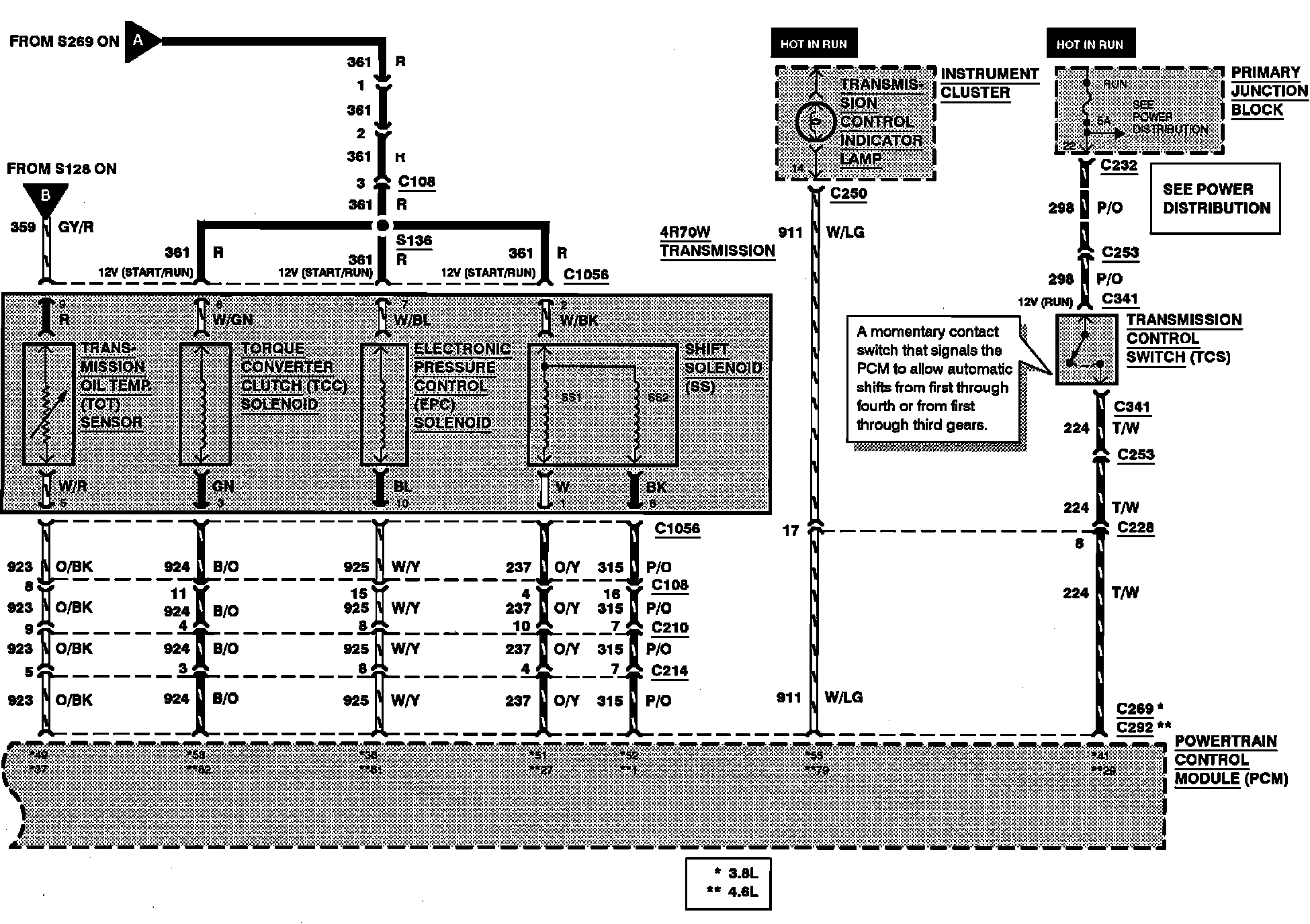

Electronic Automatic Transmission (4R70W):
