Lamp Out Module: Locations

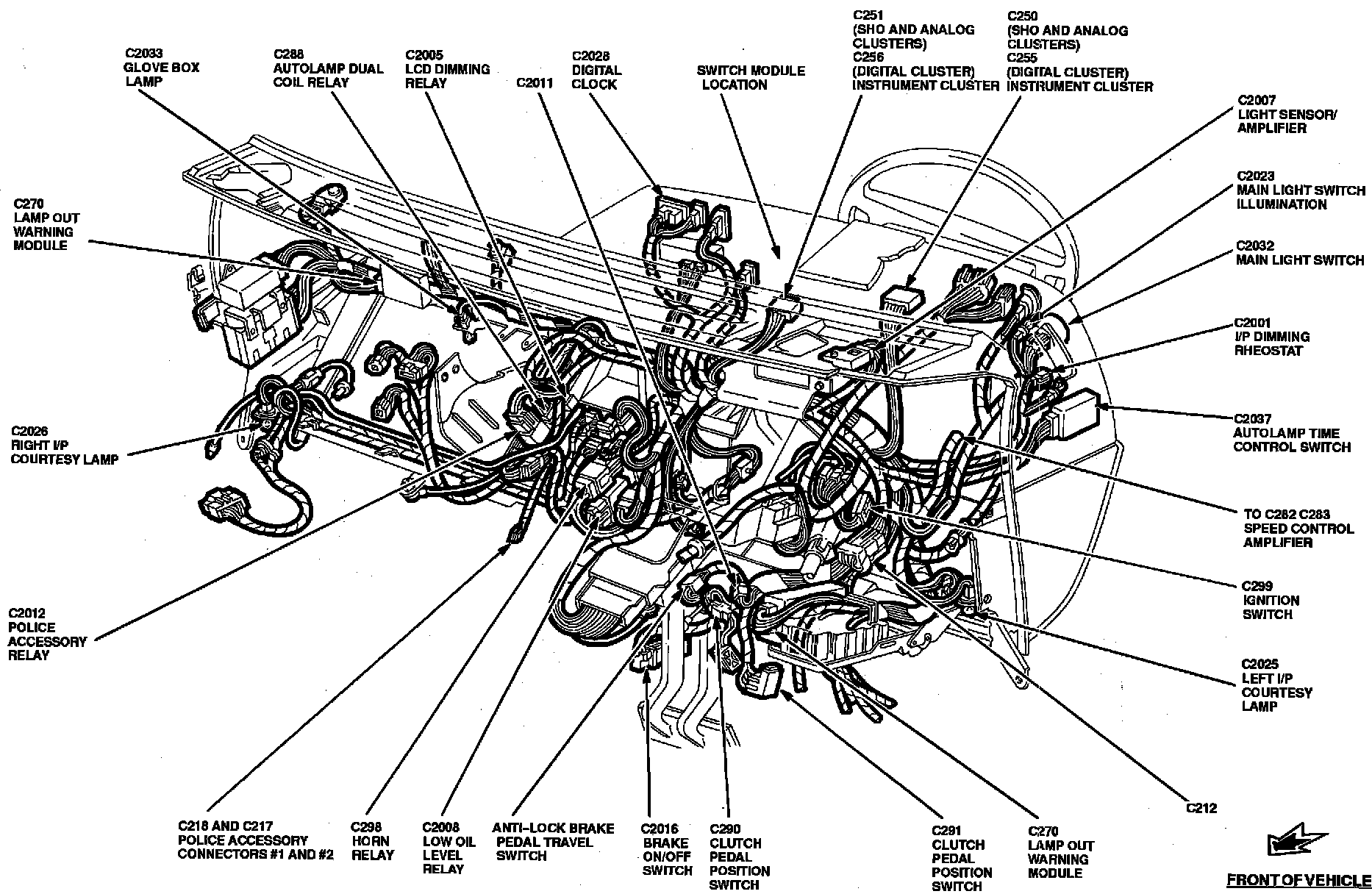

Component Locations:





The Lamp Out Warning Module is located behind the lower LH side of the instrument panel, to the RH side of the instrument panel fuse panel.
