Blower Override Switch: Locations

Temperature Control Lockout Valve And Switch:

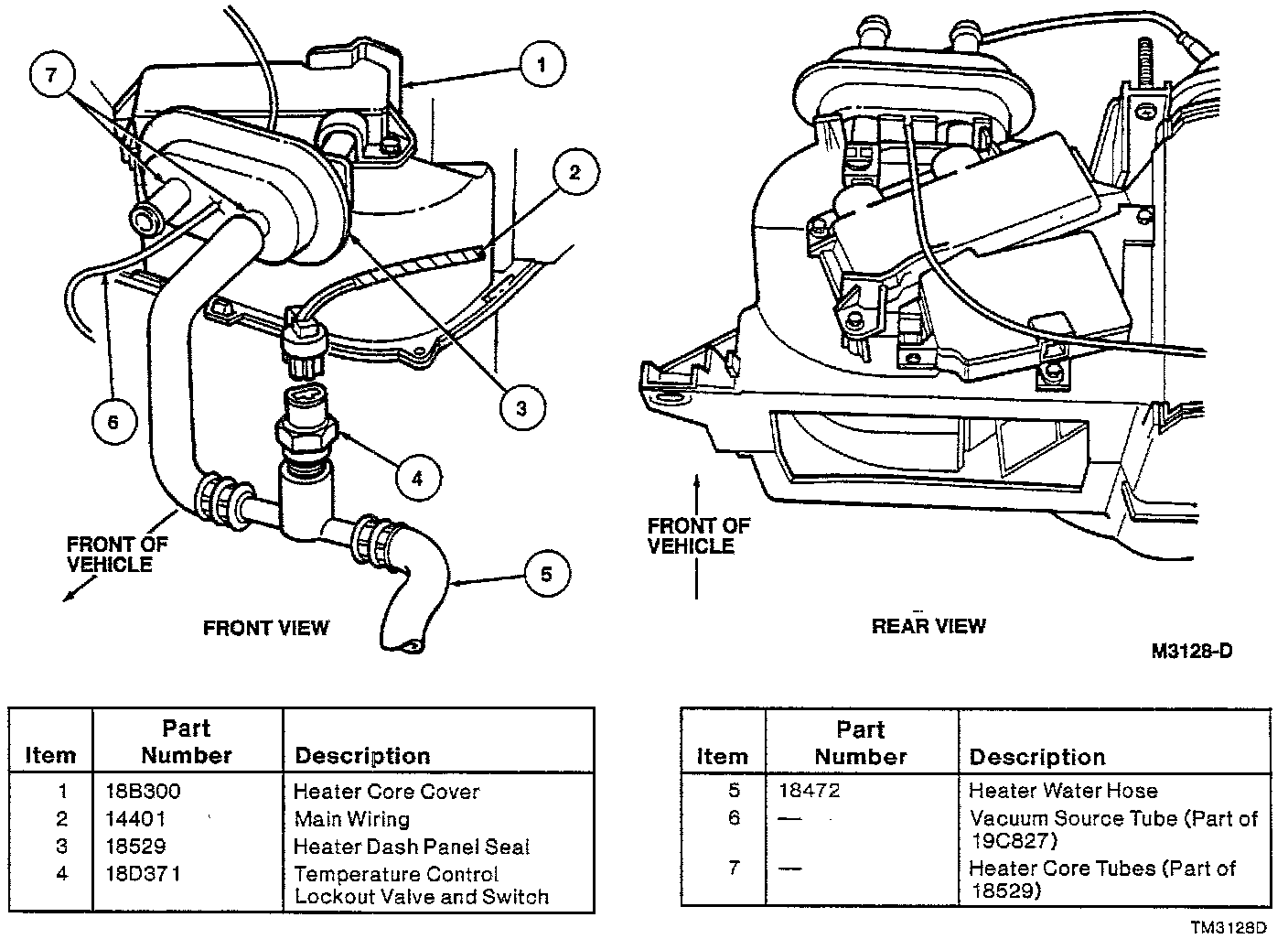

TEMPERATURE CONTROL LOCKOUT VALVE AND SWITCH
^ The temperature control lockout valve and switch is located in the heater water hose.
