Home >> Ford >> 1994 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Master Door Lock Switch

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Master Door Lock Switch

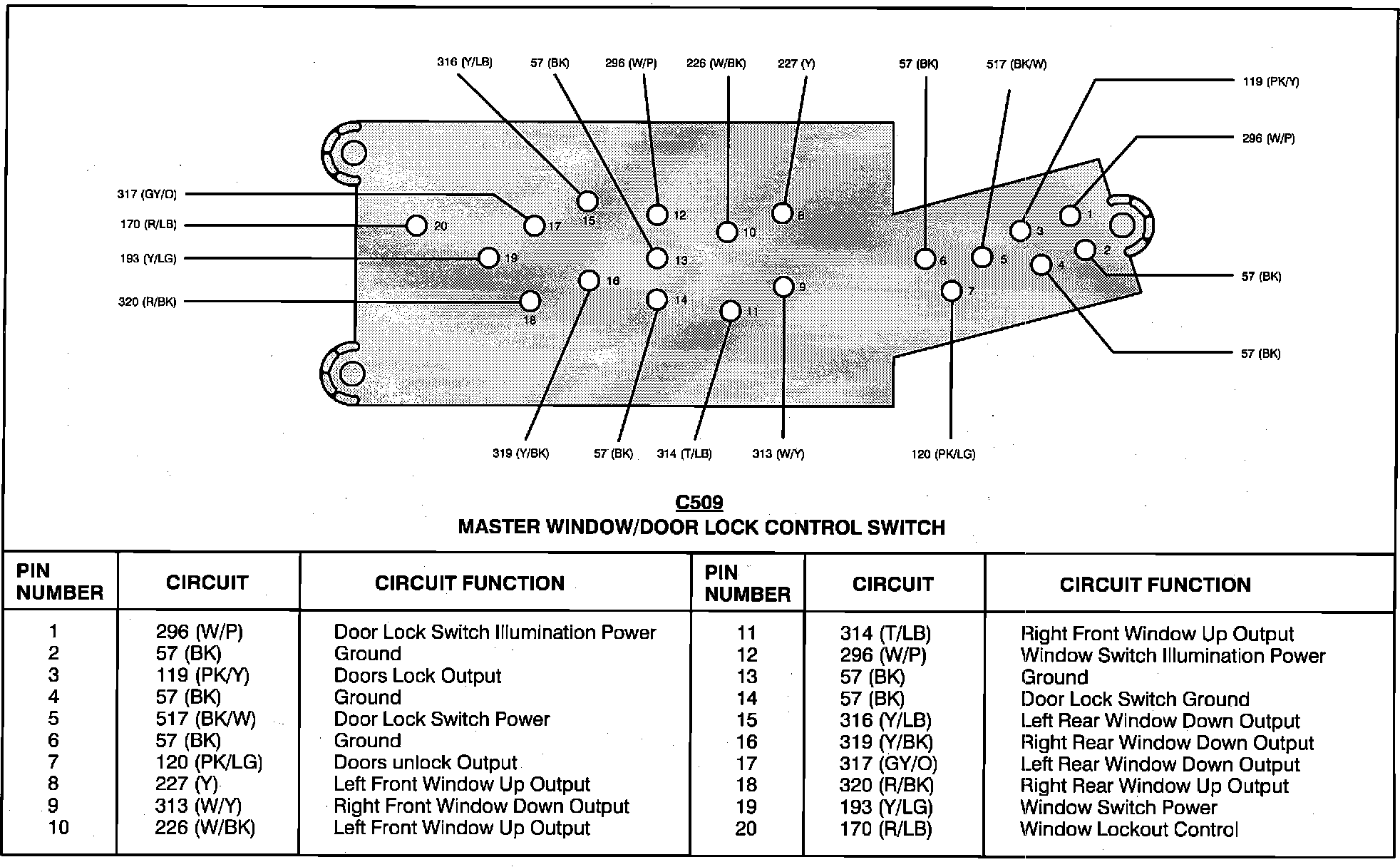

Master Window/Door Lock Control Switch:
