Images

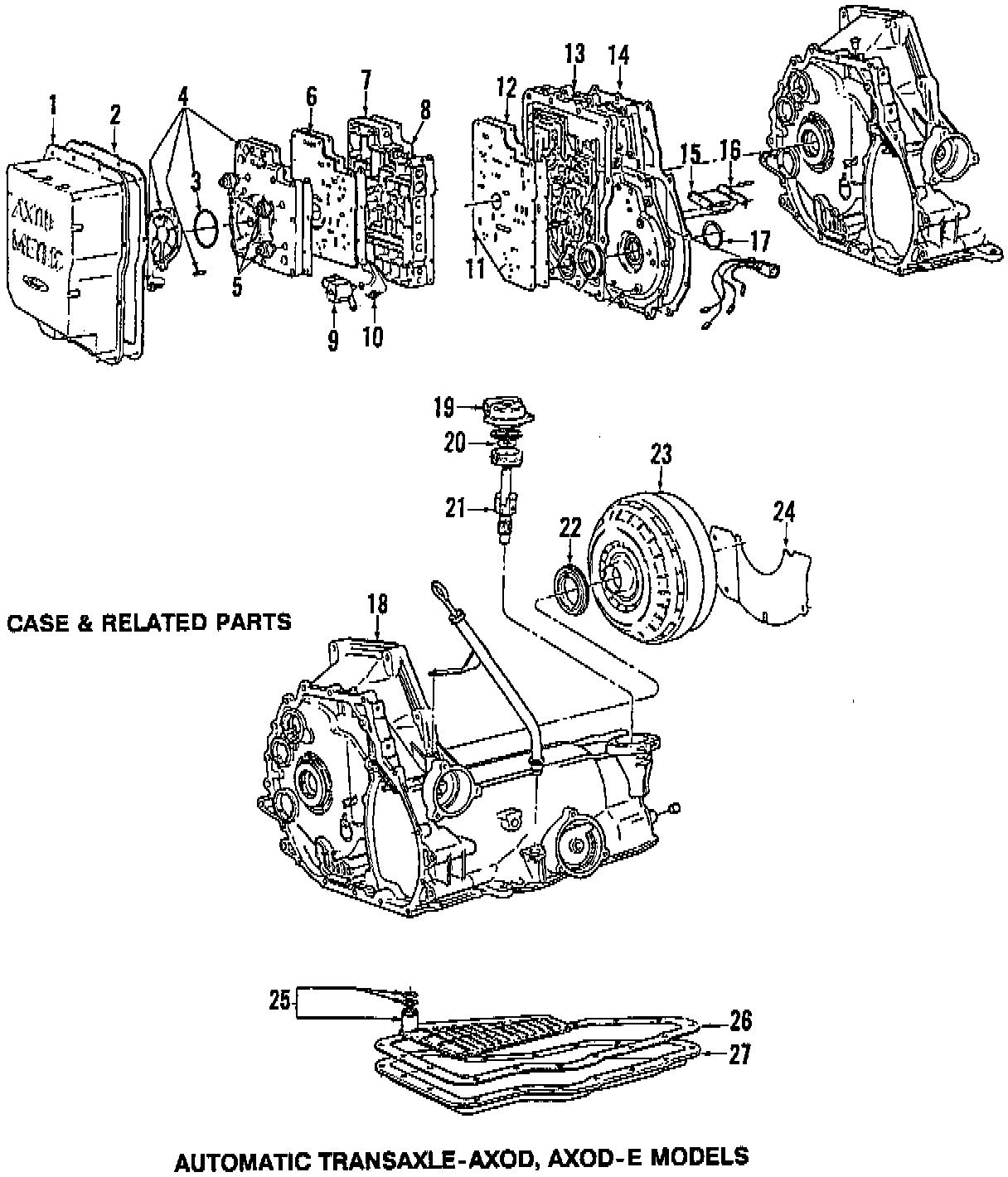

Case & Related Parts, AXOD-E, AX4S:

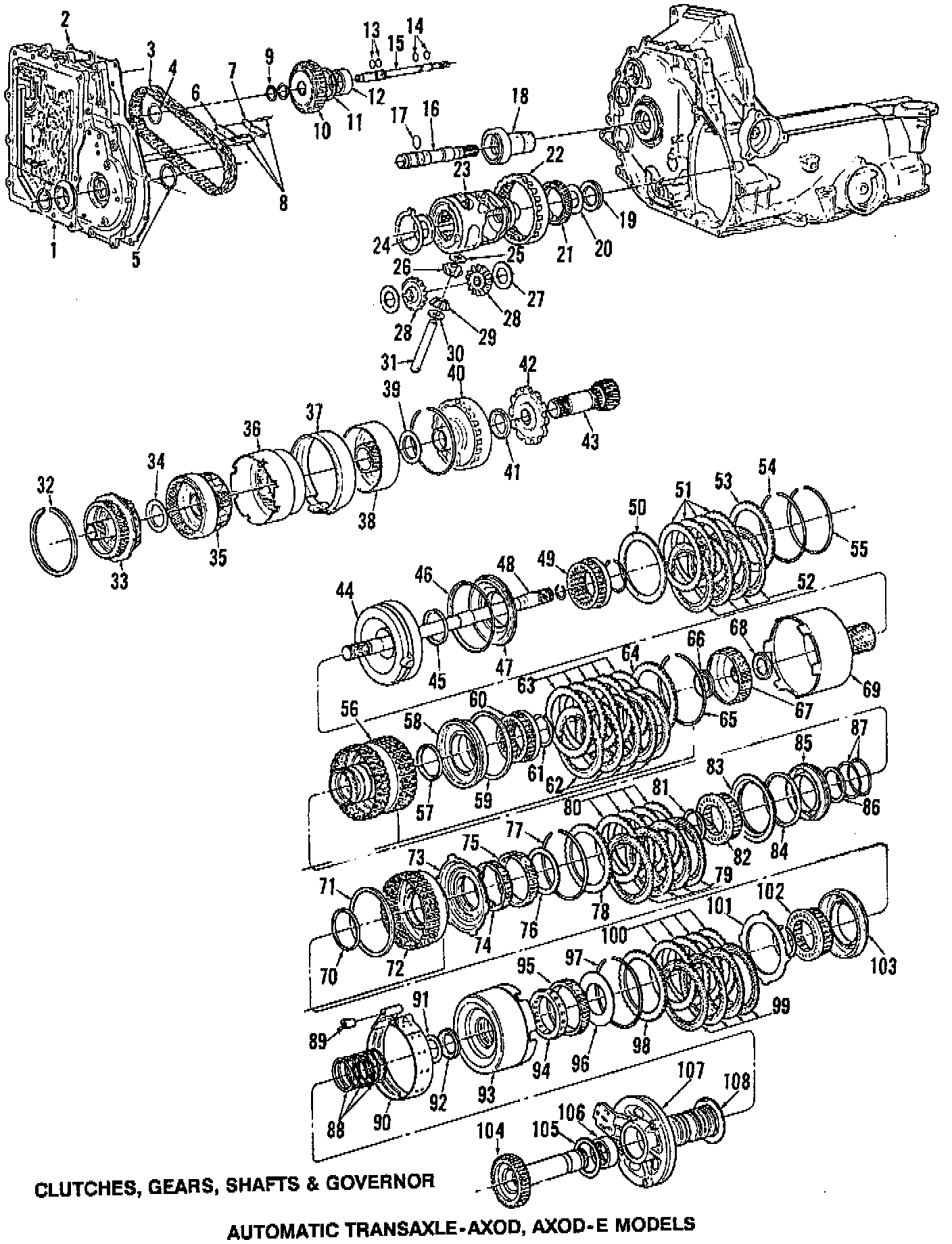

Clutches, Gears, Shafts & Governor, AXOD-E, AX4S:

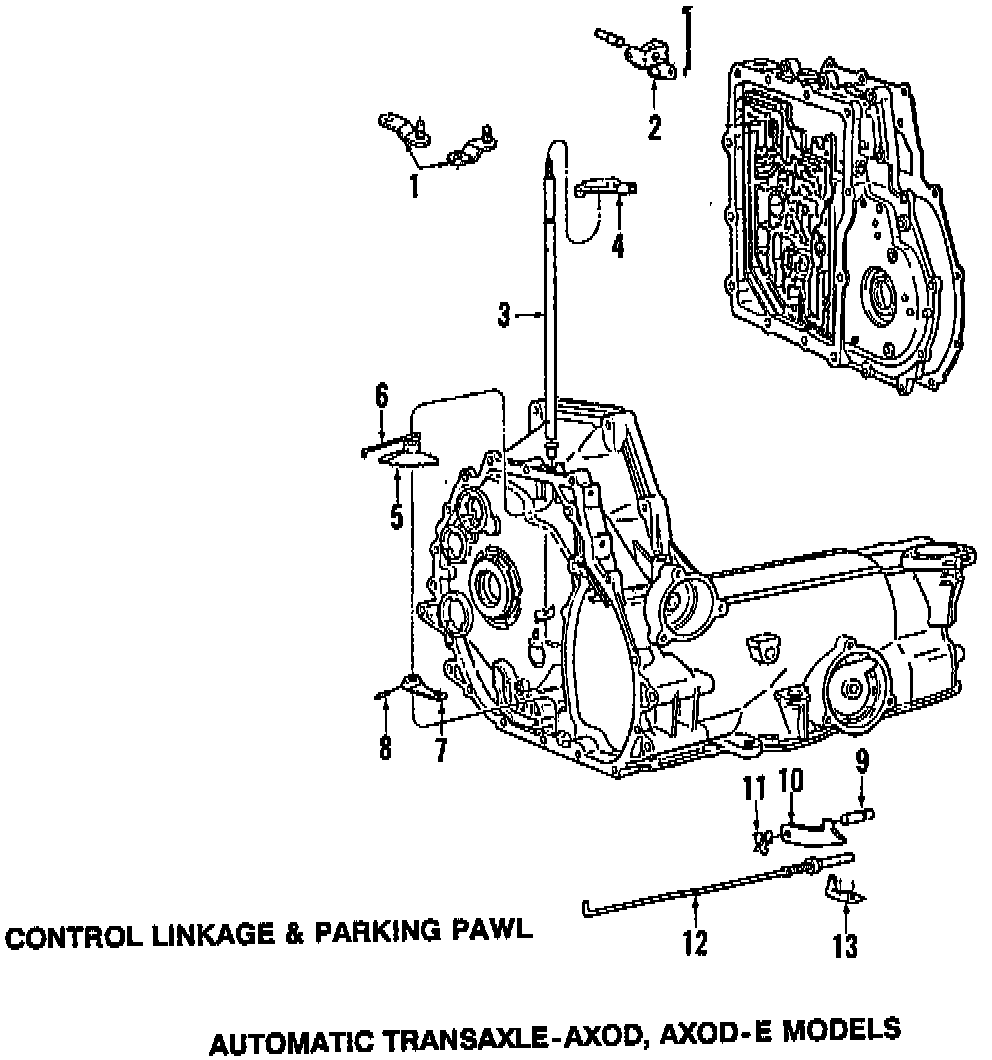

Control Linkage & Parking Pawl, AXOD-E, AX4S:

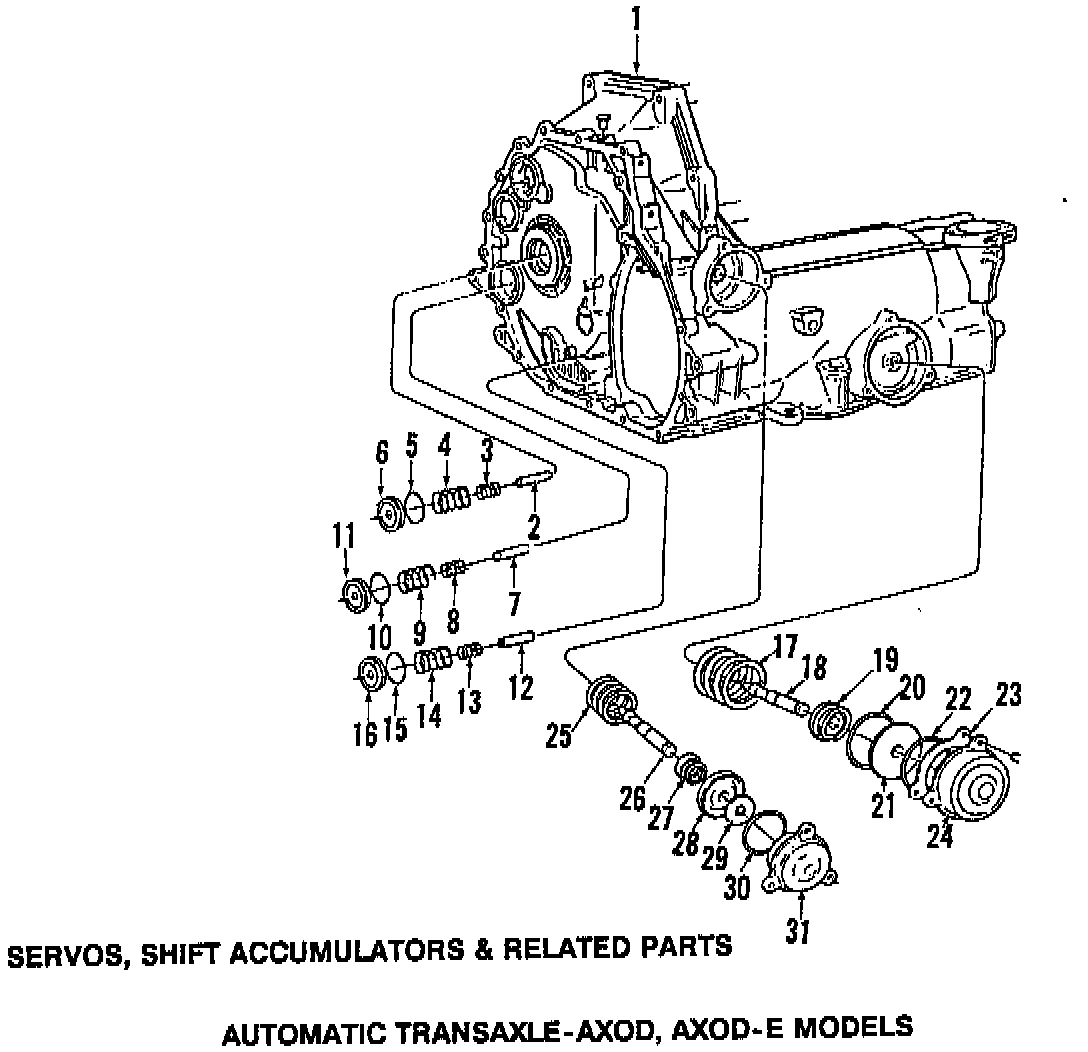

Servos, Shift Accumulators & Related Parts, AXOD-E, AX4S:
