Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

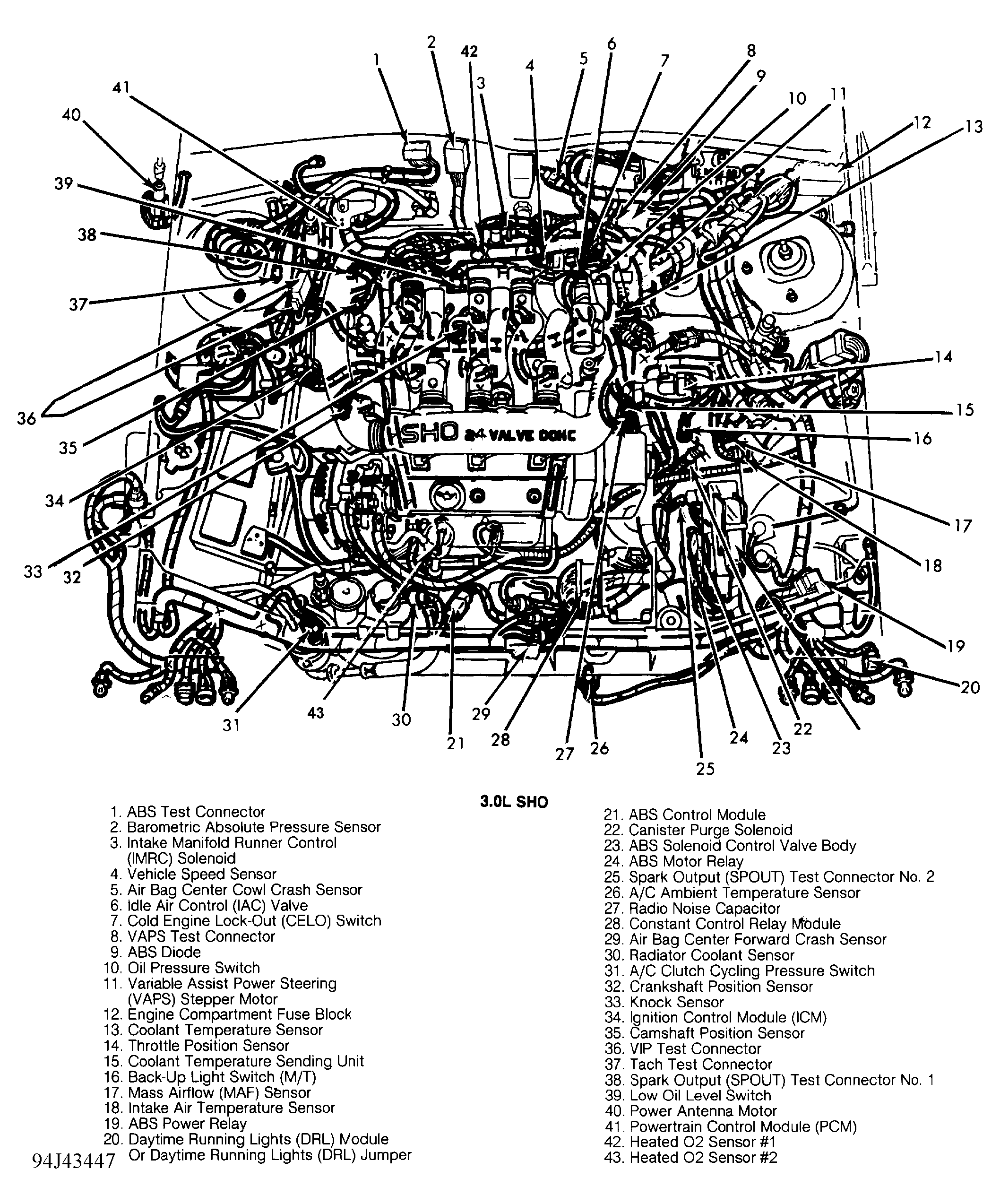

Accessory Ckt Breaker (Police) On front of left strut tower. See Figure .
Foglight In-Line Fuse Behind left side of dash, taped to harness, near fuse block. See Figure .
Fuse Block
Engine Compartment
3.0L SHO On rear of left inner fender panel. See Figure .
3.8L On rear of left inner fender panel. See Figure .
Passenger Compartment Behind left side of dash.
Fusible Links (Charging System)
"F" (Brown) At engine bay fuse block. See Figure .
"G" (Gray) At engine bay fuse block. See Figure .
"T" (Gray) At engine bay fuse block. See Figure .
