Electronic Brake Control Module: Locations

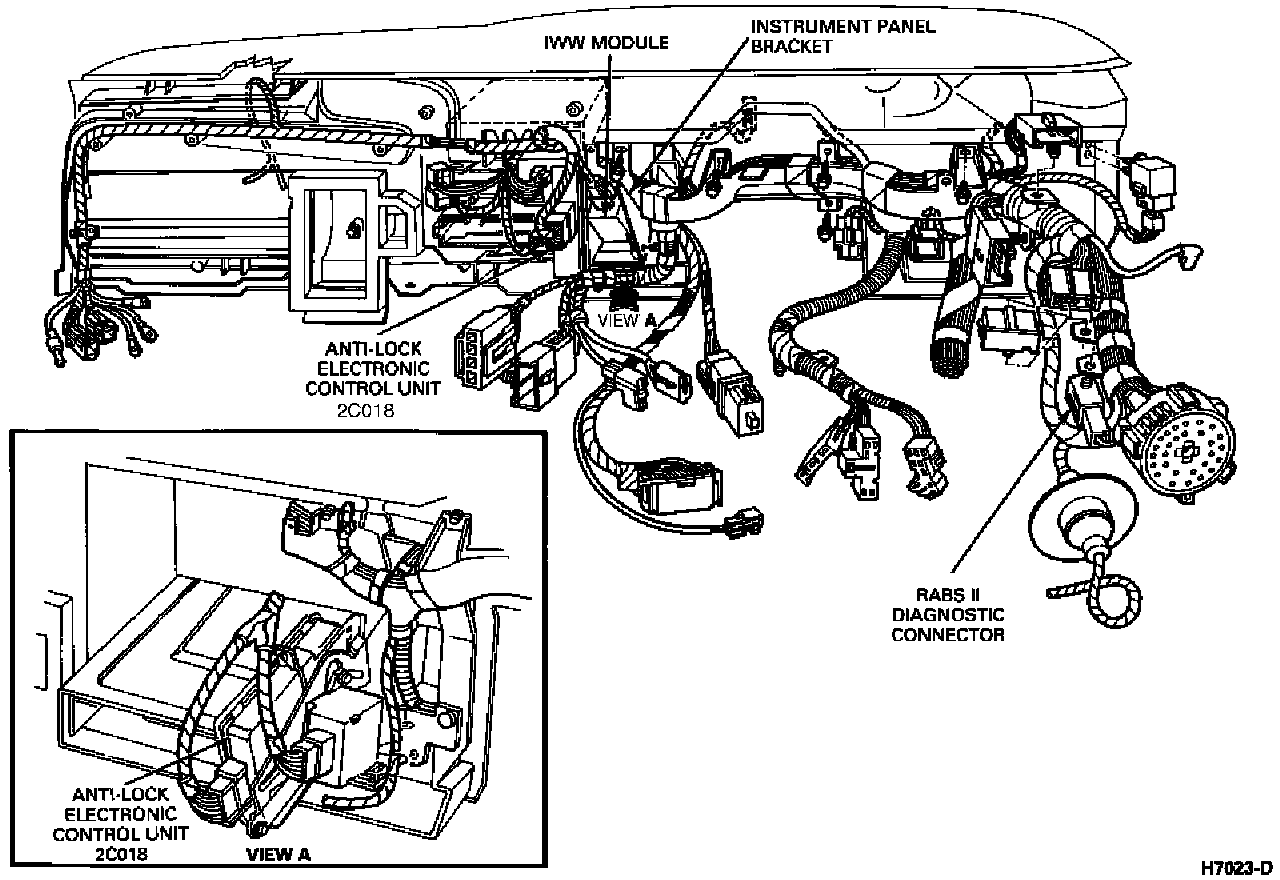

Diagnostic Connector:





The Rear Anti-Lock Brake (RABS) Control module is located in the dash behind lower center of I/P, LH side of ashtray assembly.
