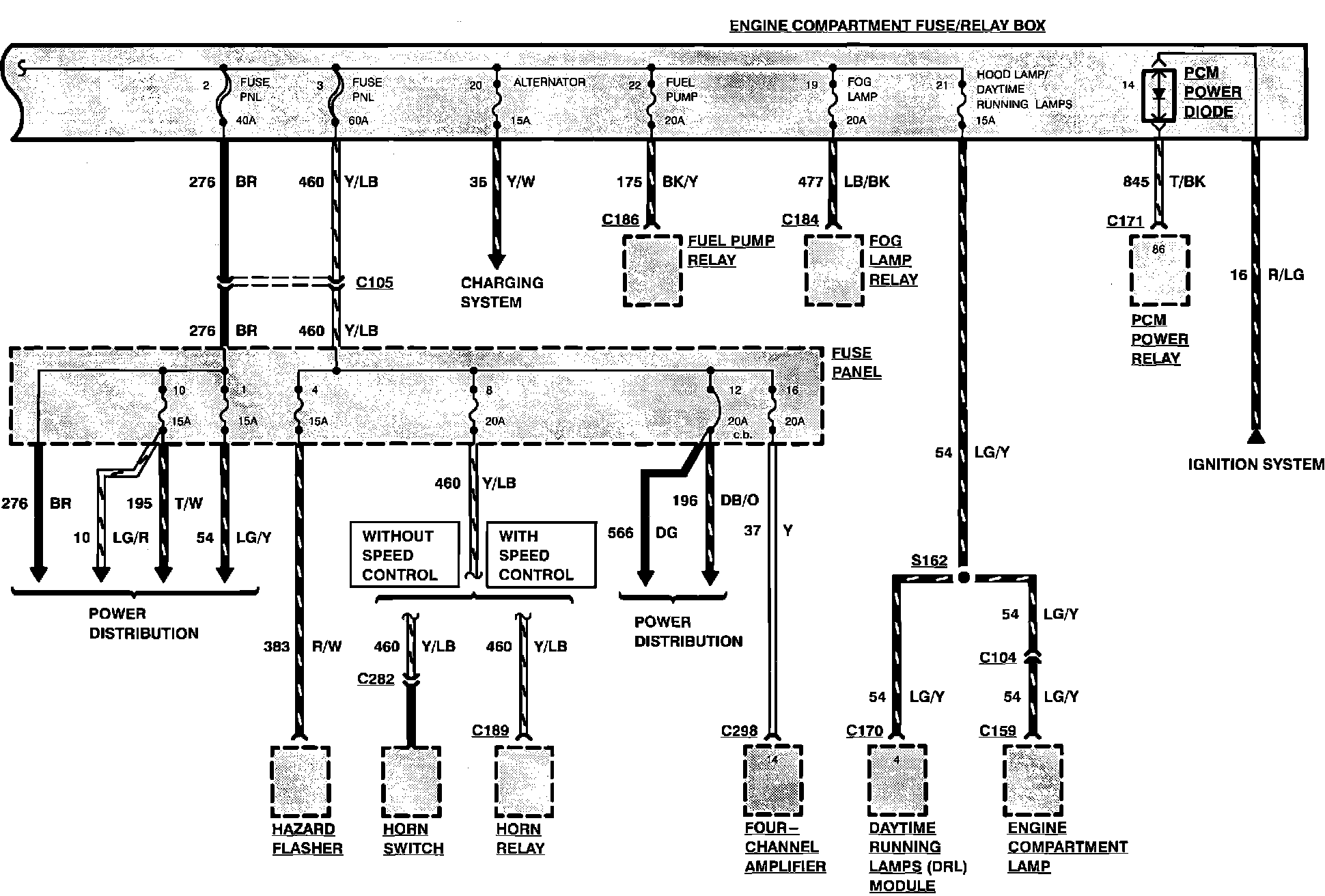

Fuse PCM POWER DIODE

Fuse PCM POWER DIODE - protects the following circuit:
- PCM Relay (2 of 2 Power Feeds from Ignition Switch)

Power Distribution:
