With Sequential Fuel Injection (SFI)

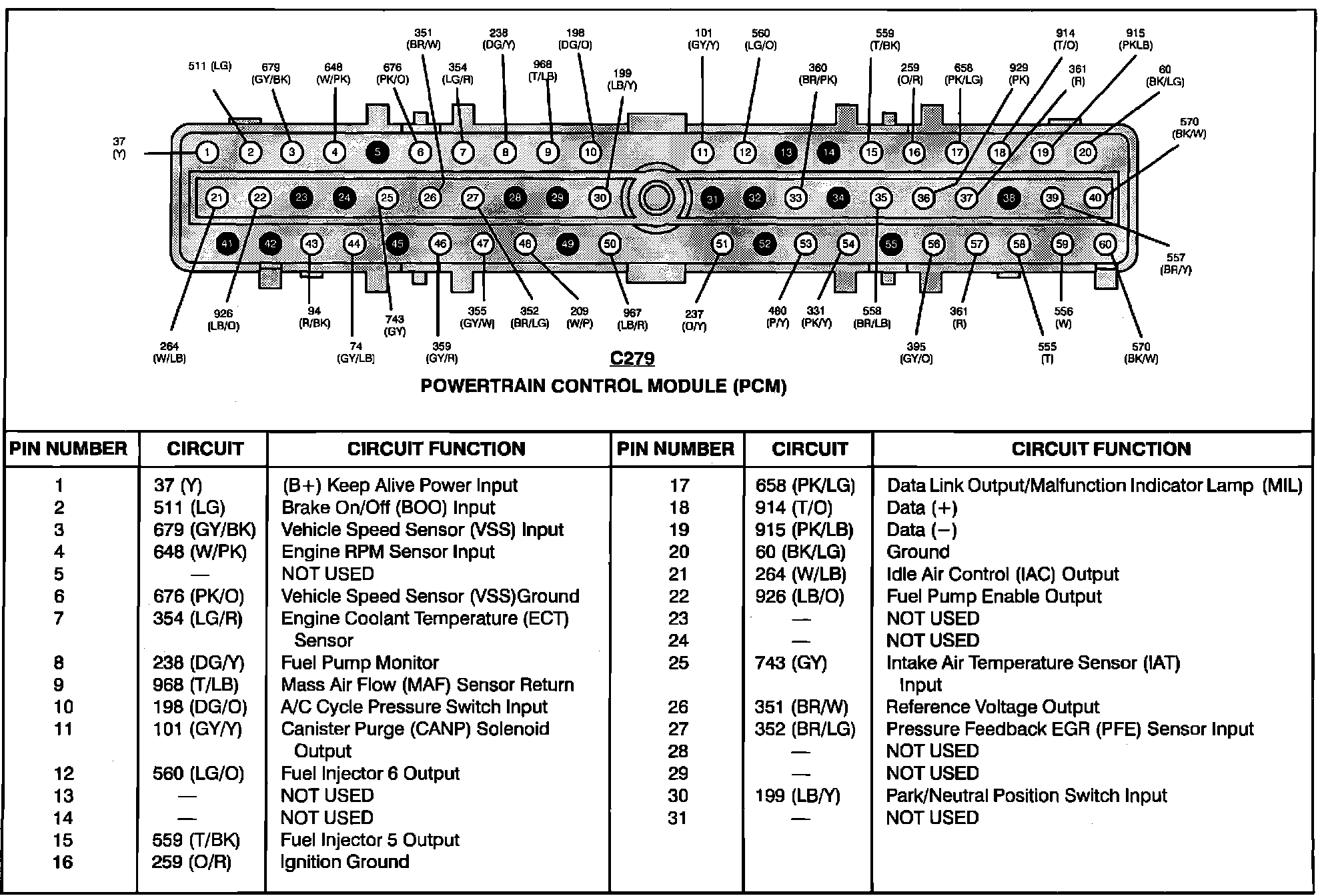

Powertrain Control Module (PCM) / Circuit Function:

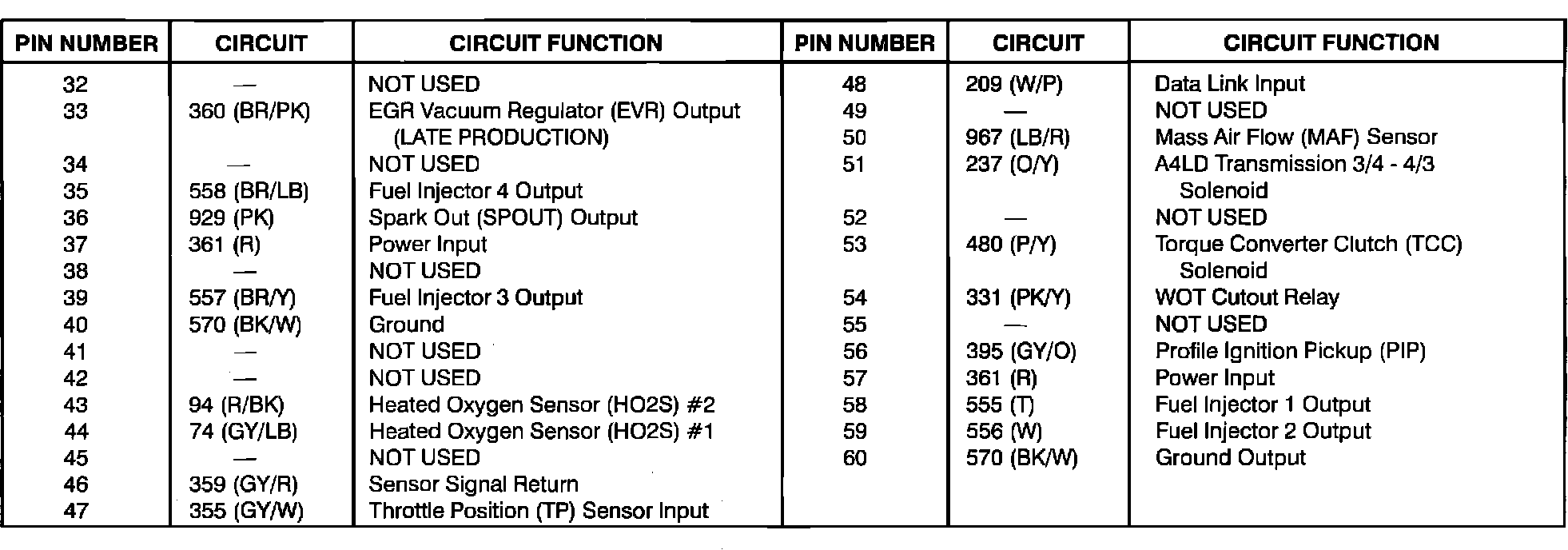

Powertrain Control Module (PCM) Circuit Function:
