Control Module, Transfer Case

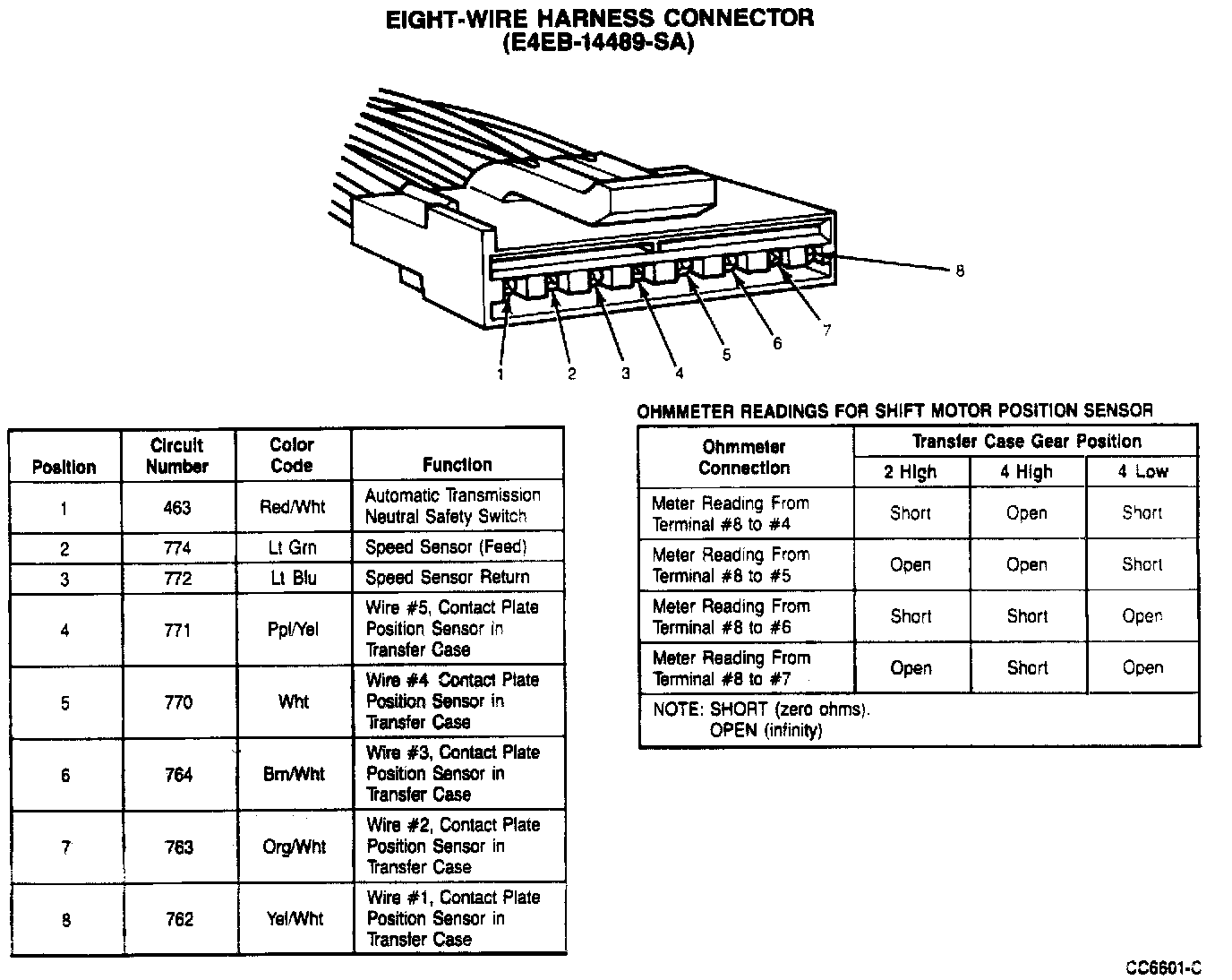

Eight-Wire Harness Connector:

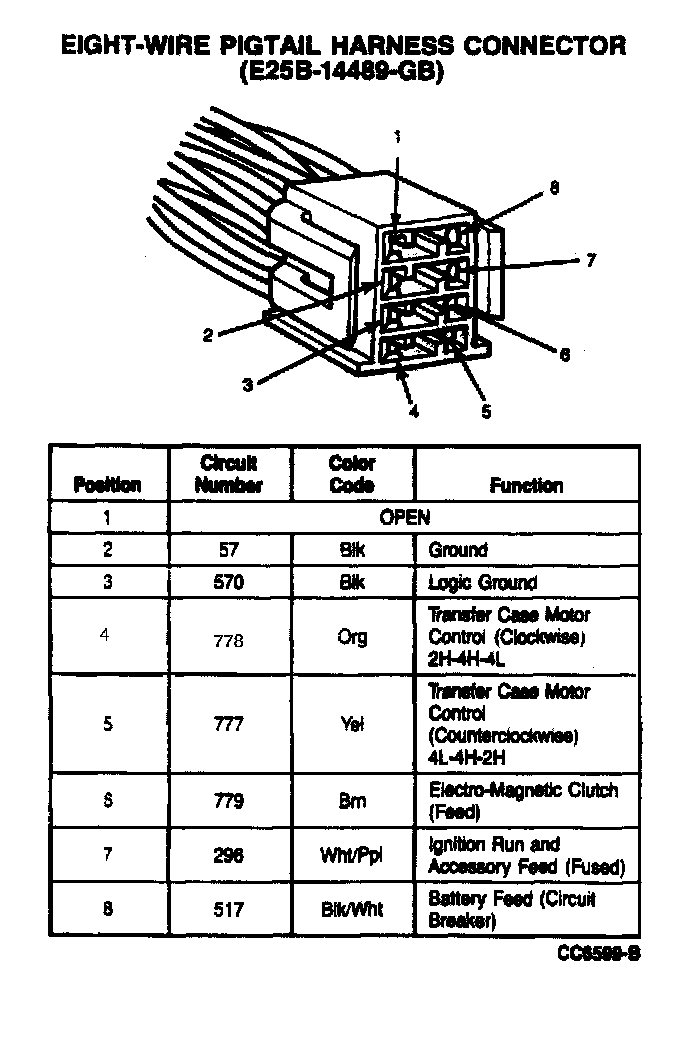

Eight-Wire Pigtail Harness Connector:






Five-Wire Harness Connector:
