L: Servo Assembly Test

Test L: Servo Assembly Test.:





Test L1.

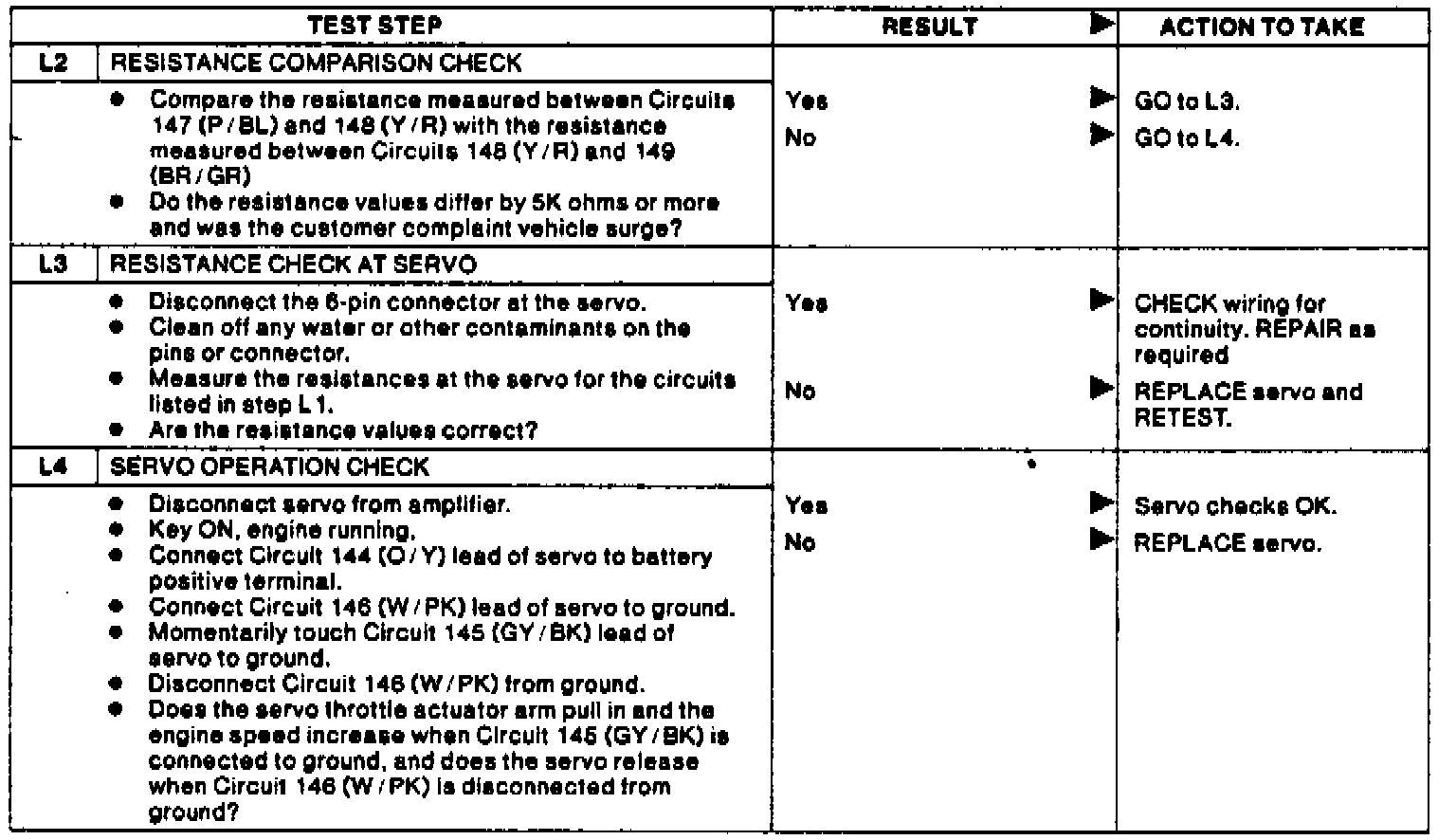

Test L: Servo Assembly Test.:





Test L2 - L4.
