Function Control Cable

  1. Move function control lever to defrost position. Insert Cable Locating Key (E7GH-18C408-A) through function selector cam key slot and heater case key boss opening to secure cam in proper position. See Fig 1 . Remove trim panel under glove box.
  2. Disconnect cable from retaining clip next to function selector cam. Ensure lever is fully in defrost position, and reconnect cable using retaining clip. Remove locating key. Ensure lever operates through its full range of travel on control panel. If a small amount of air bleeds through panel vents in FLOOR or defrost positions, lengthen adjustment rod 1-2 turns. Install trim panel.

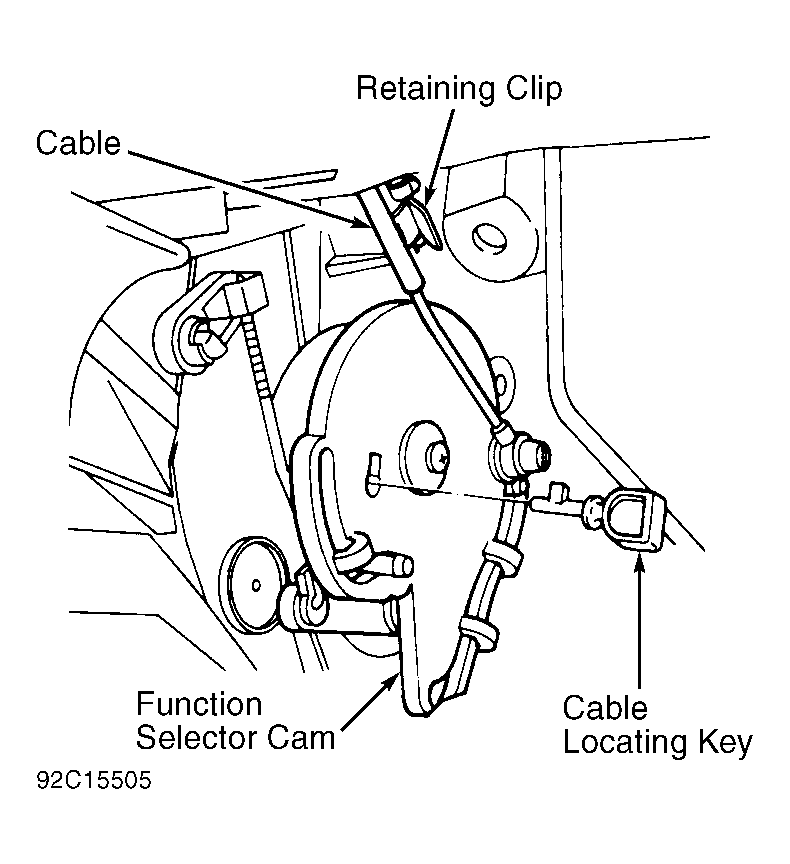

    Fig 1: Adjusting Function Control Cable
    G92C15505Courtesy of FORD MOTOR CO.
