BARO Sensor
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
BARO Sensor

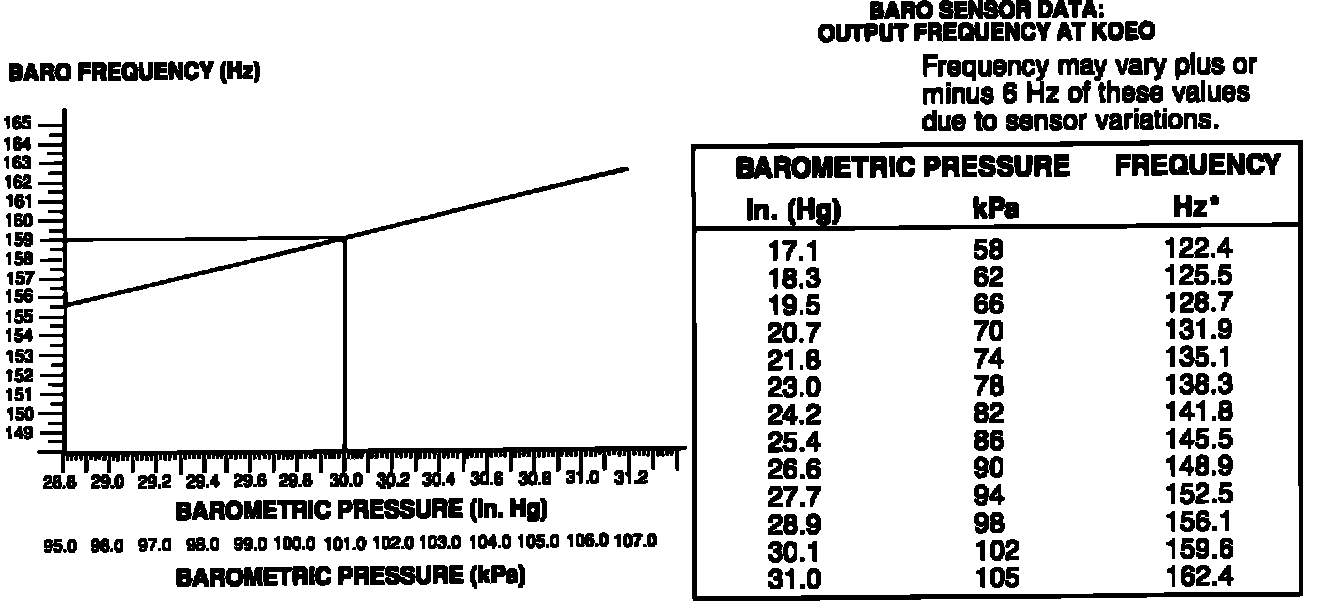

Barometric Sensor Graph:
