September 30: LEMON manuals is back up on a temporary server! Slowness is possible
With Column Shift
Steering Column
with Column Shift

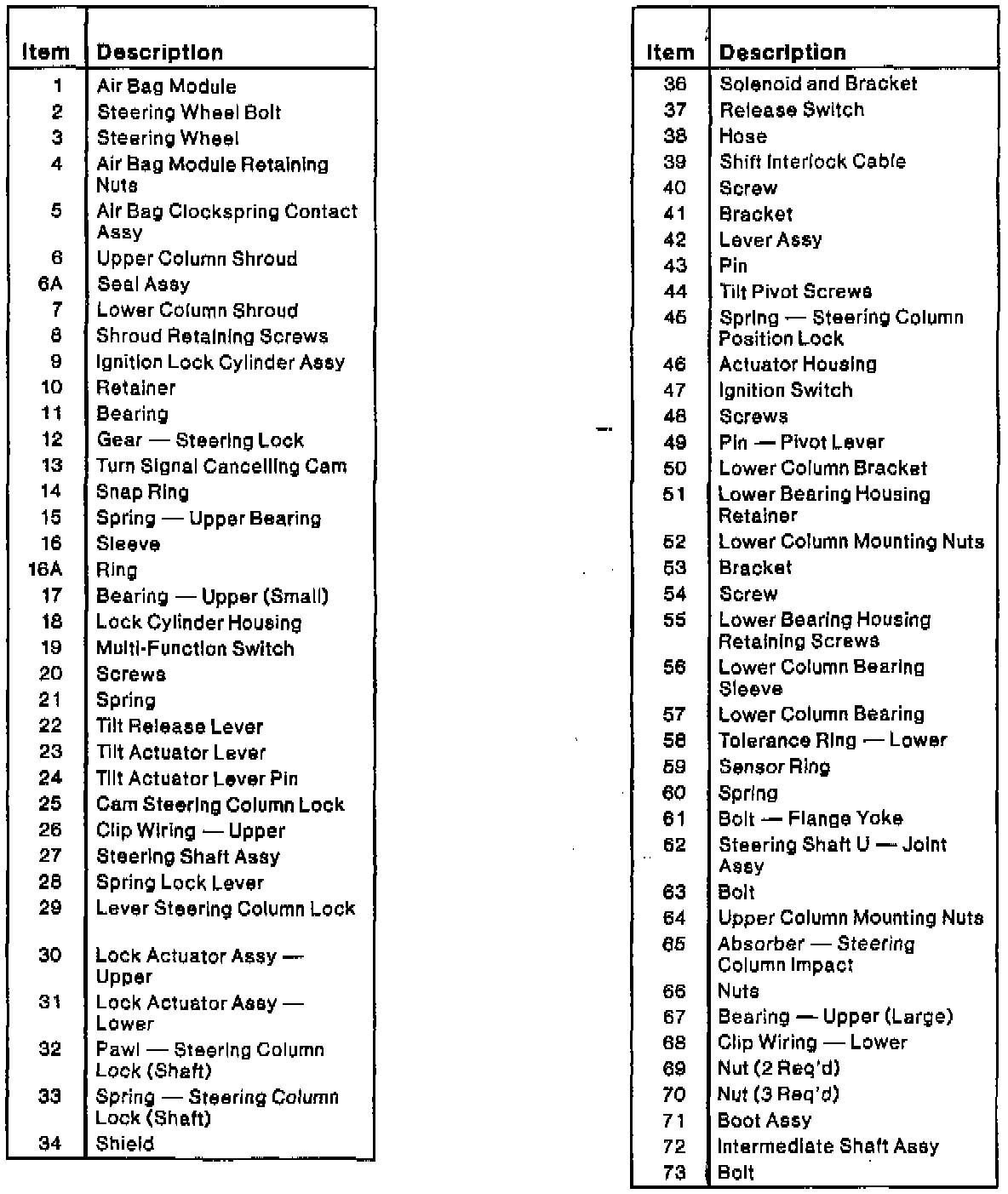

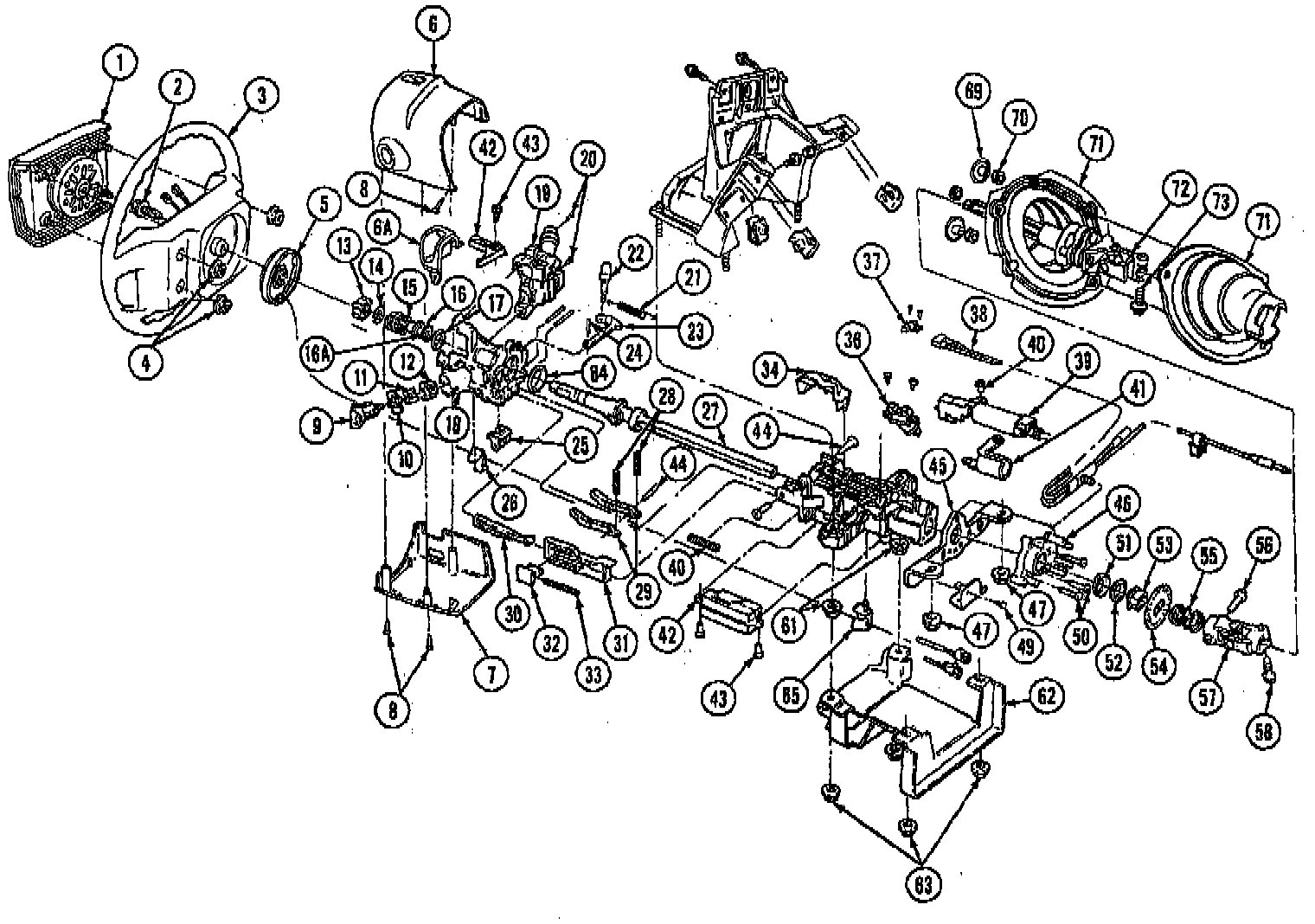

Fig. 6 Exploded View Of Steering Column W/column Shift:
Fig. 6 Exploded View Of Steering Column W/Column Shift:
