Multi-Function Switch Connector Views

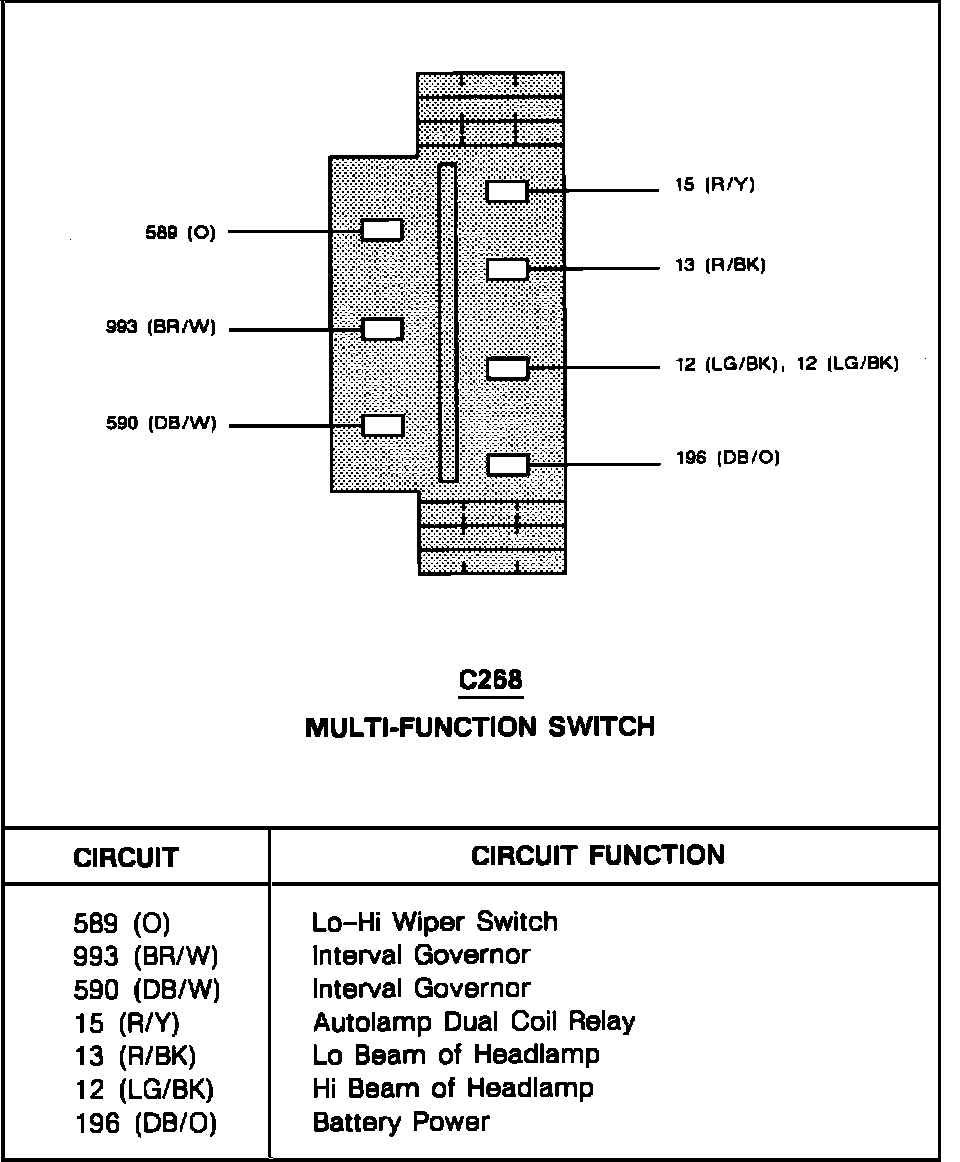

Connector Faces/Pinout Charts:



Connector Faces/Pinout Charts:
