IAT - Intake Air Temperature Sensor
>>
IAT - Circuit Data and Sensor Resistance
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
IAT - Circuit Data and Sensor Resistance

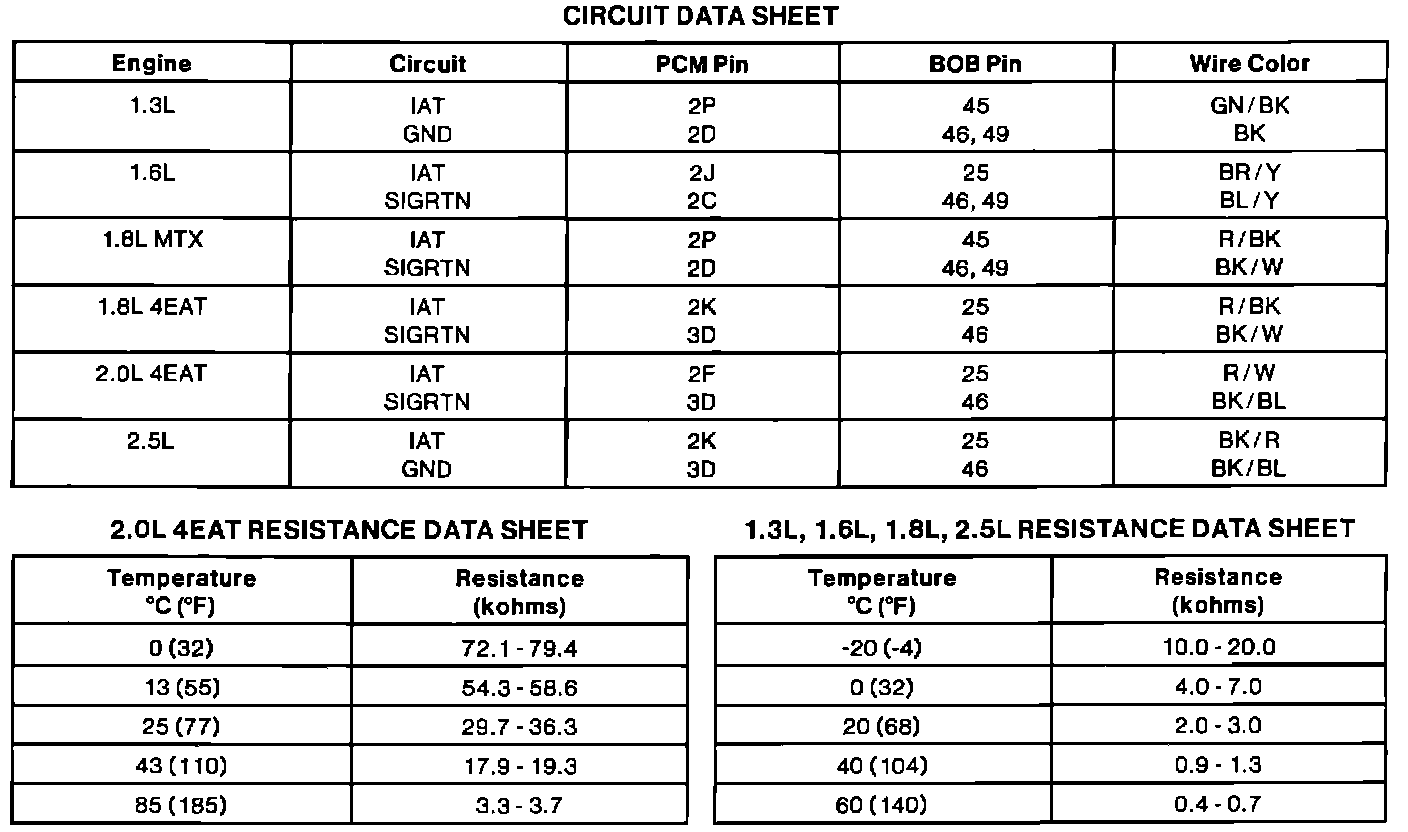

Pinpoint Test Circuit Data & Sensor Resistance:
