Home >> Ford >> 1993 >> Probe V6-152 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Part 1 of 5

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Part 1 of 5

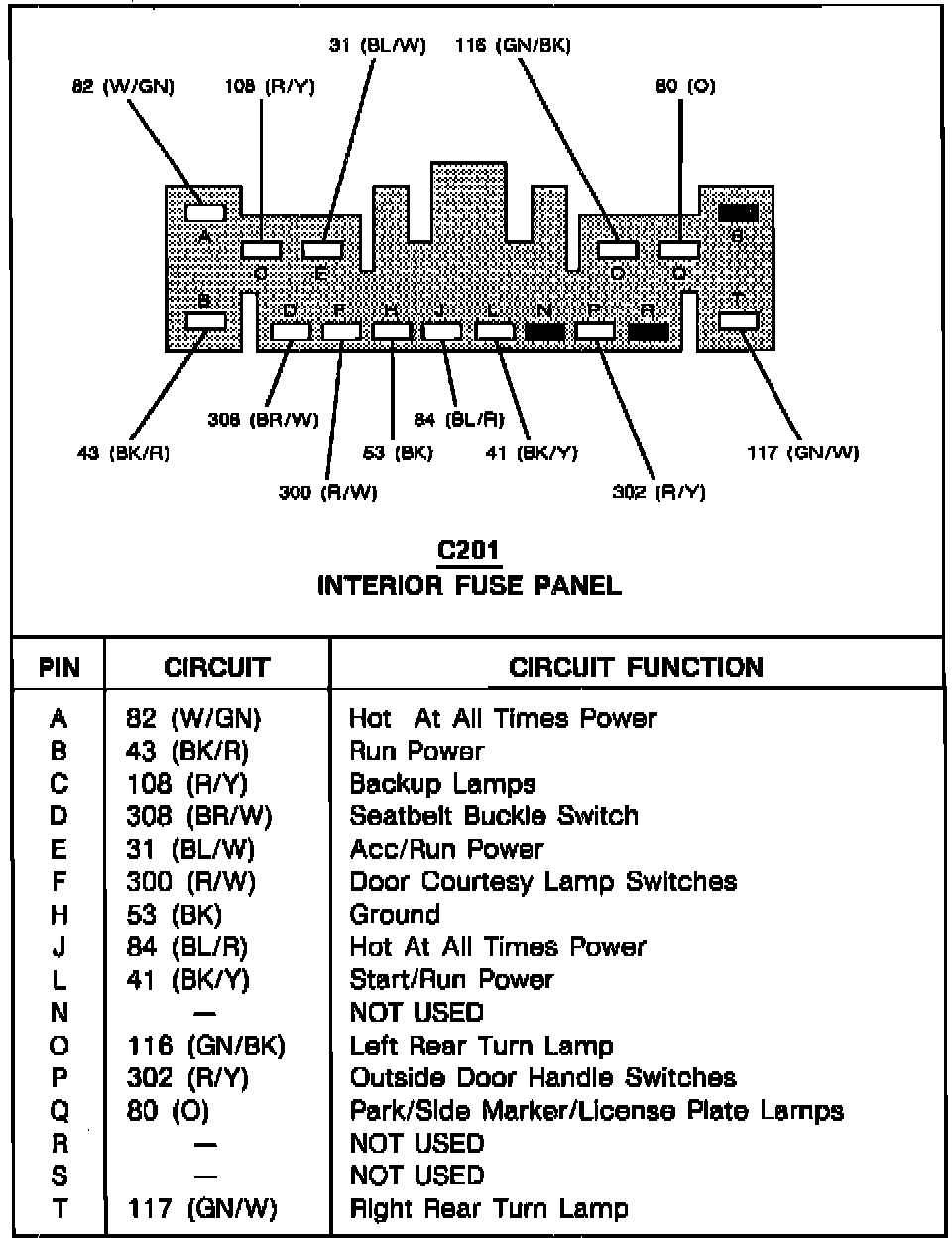

Interior Fuse Panel:
