Engine Control System Wiring Diagrams: 2.3L

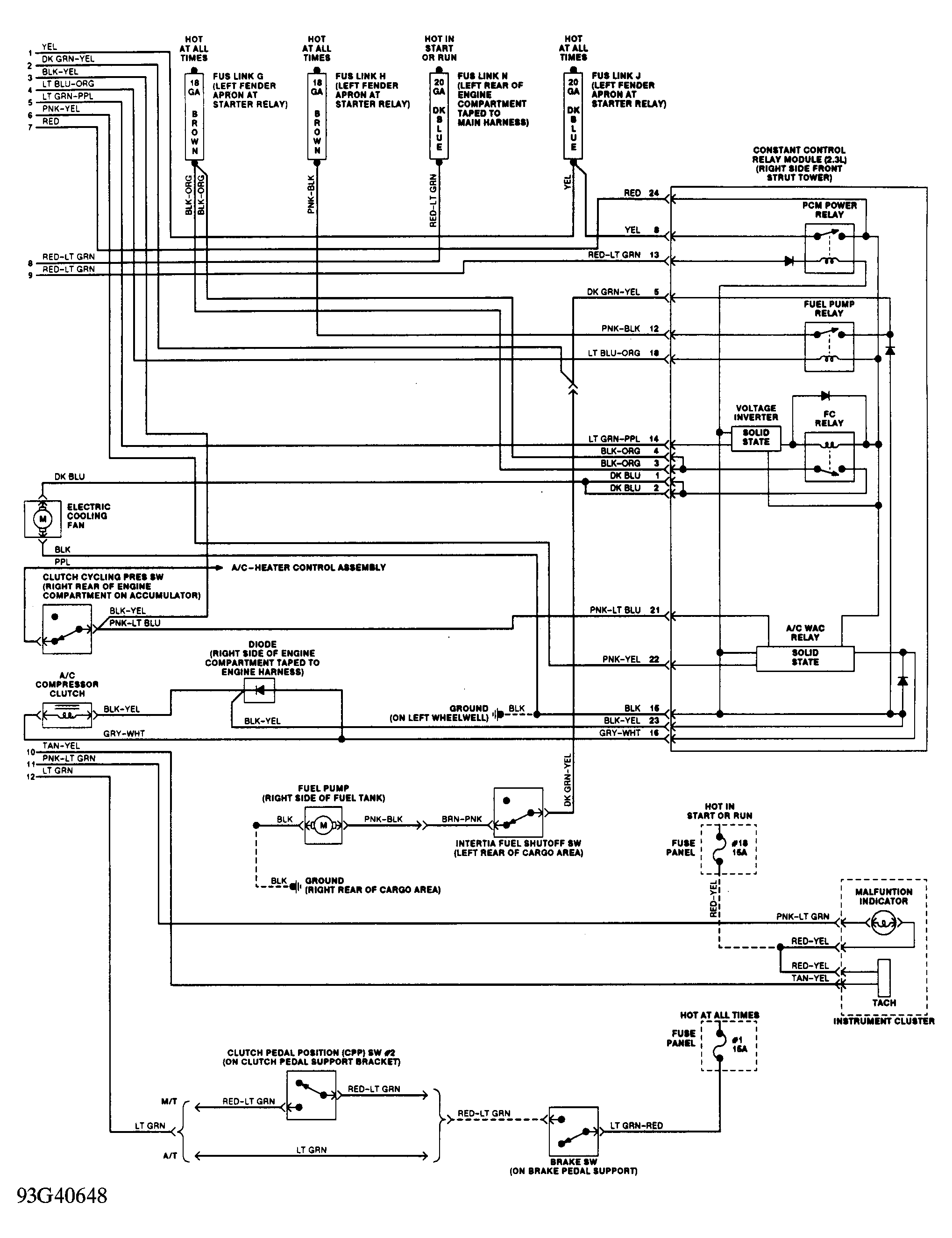

Fig 1: EEC-IV Wiring Diagram (Mustang 2.3L - 1 of 3)

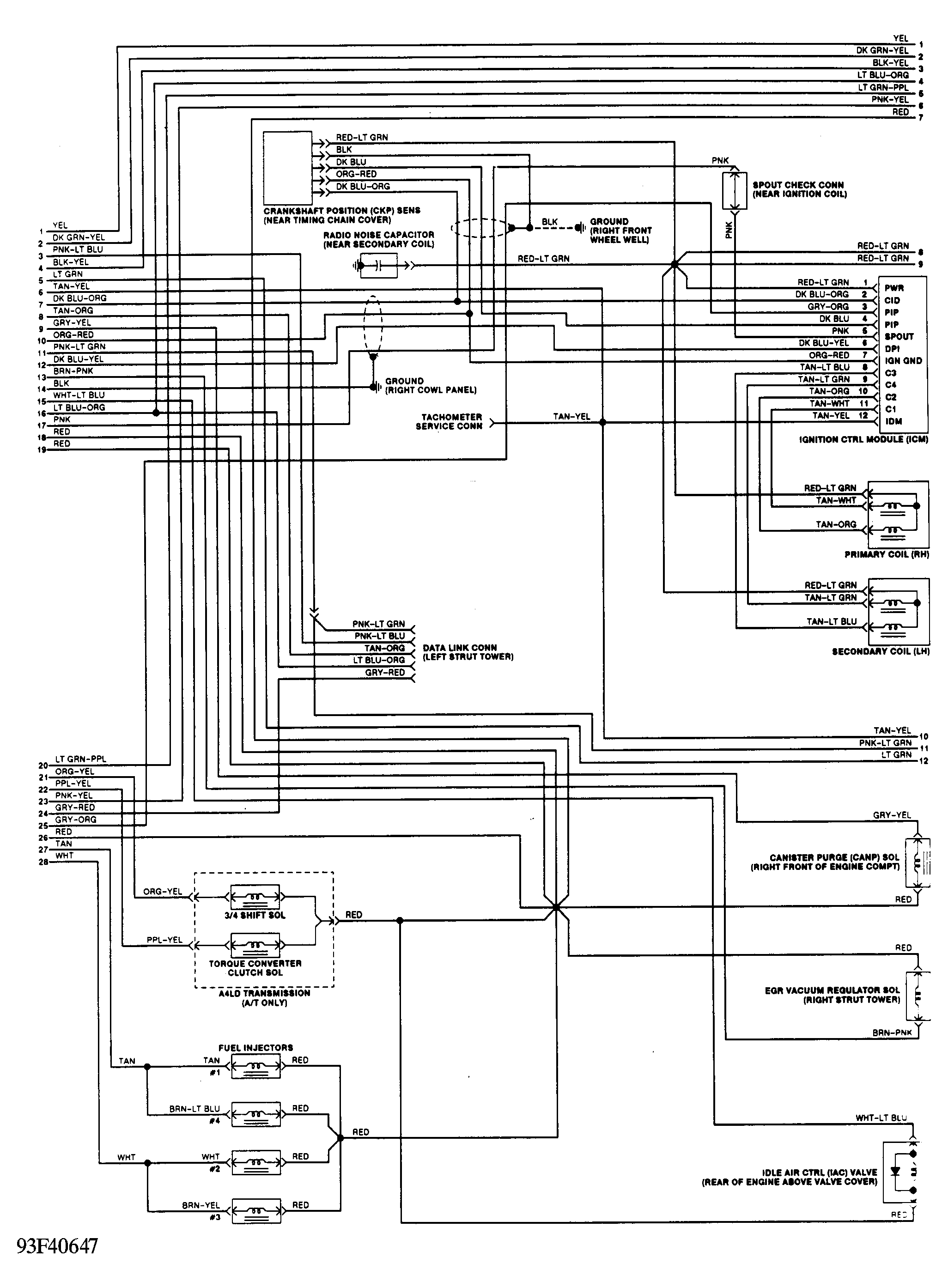

Fig 2: EEC-IV Wiring Diagram (Mustang 2.3L - 2 of 3)

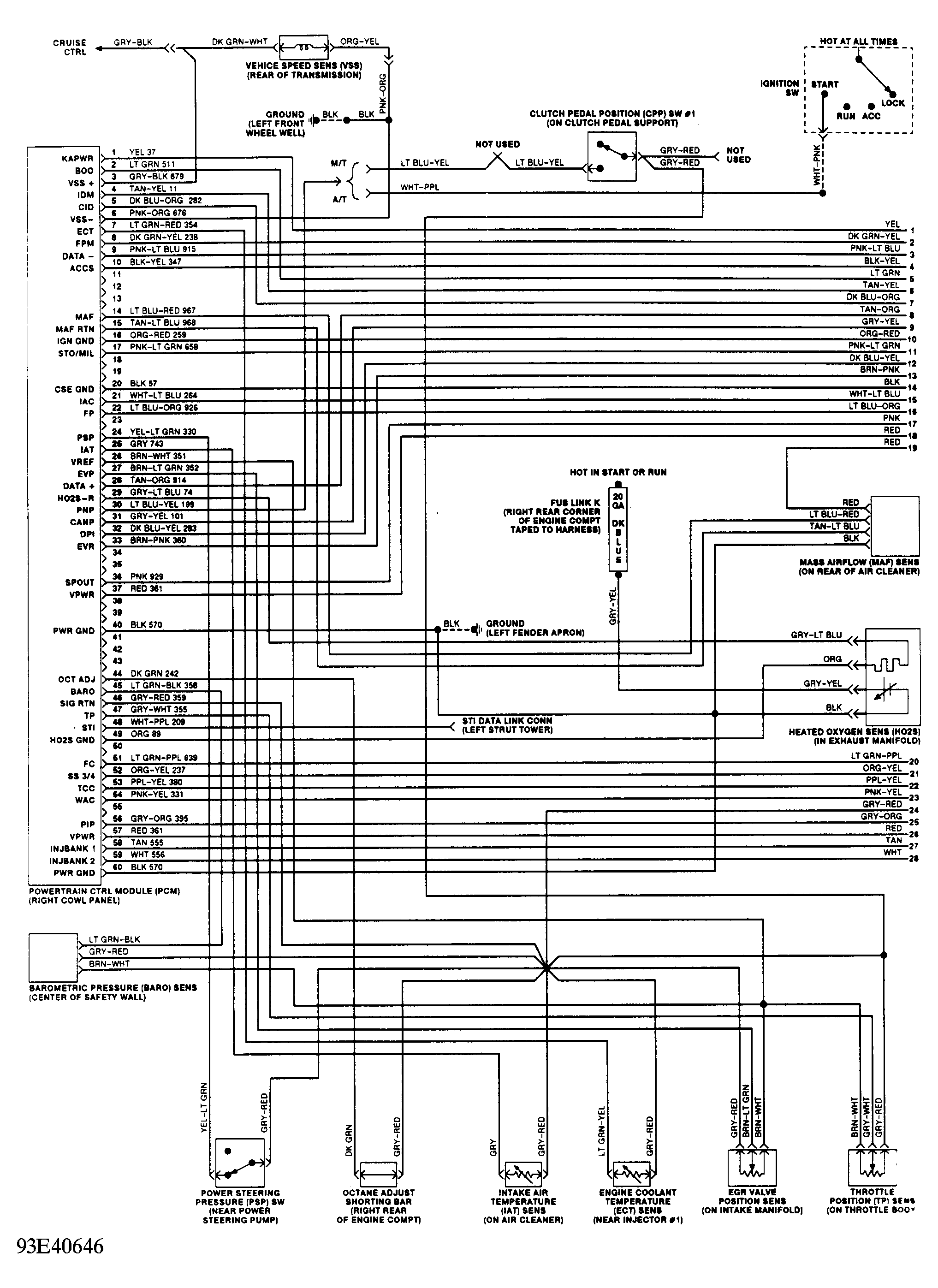

Fig 3: EEC-IV Wiring Diagram (Mustang 2.3L - 3 of 3)
