Escort Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams
>>
Engine Control System Wiring Diagrams
>>
1.8L W/ Automatic Transaxle
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
1.8L W/ Automatic Transaxle

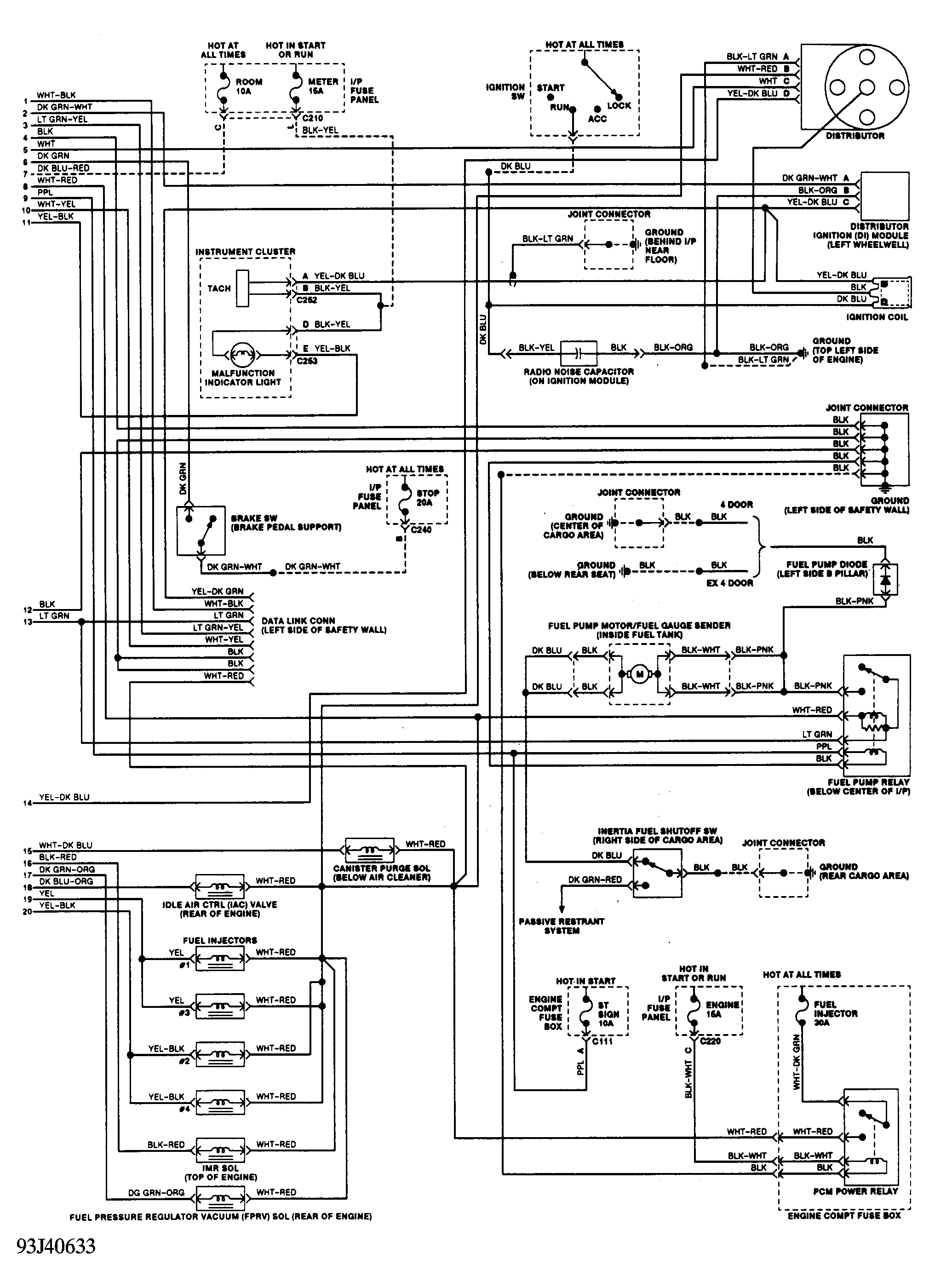

Fig 1: EEC Wiring Diagram (Escort/Tracer 1.8L A/T - 1 of 2)

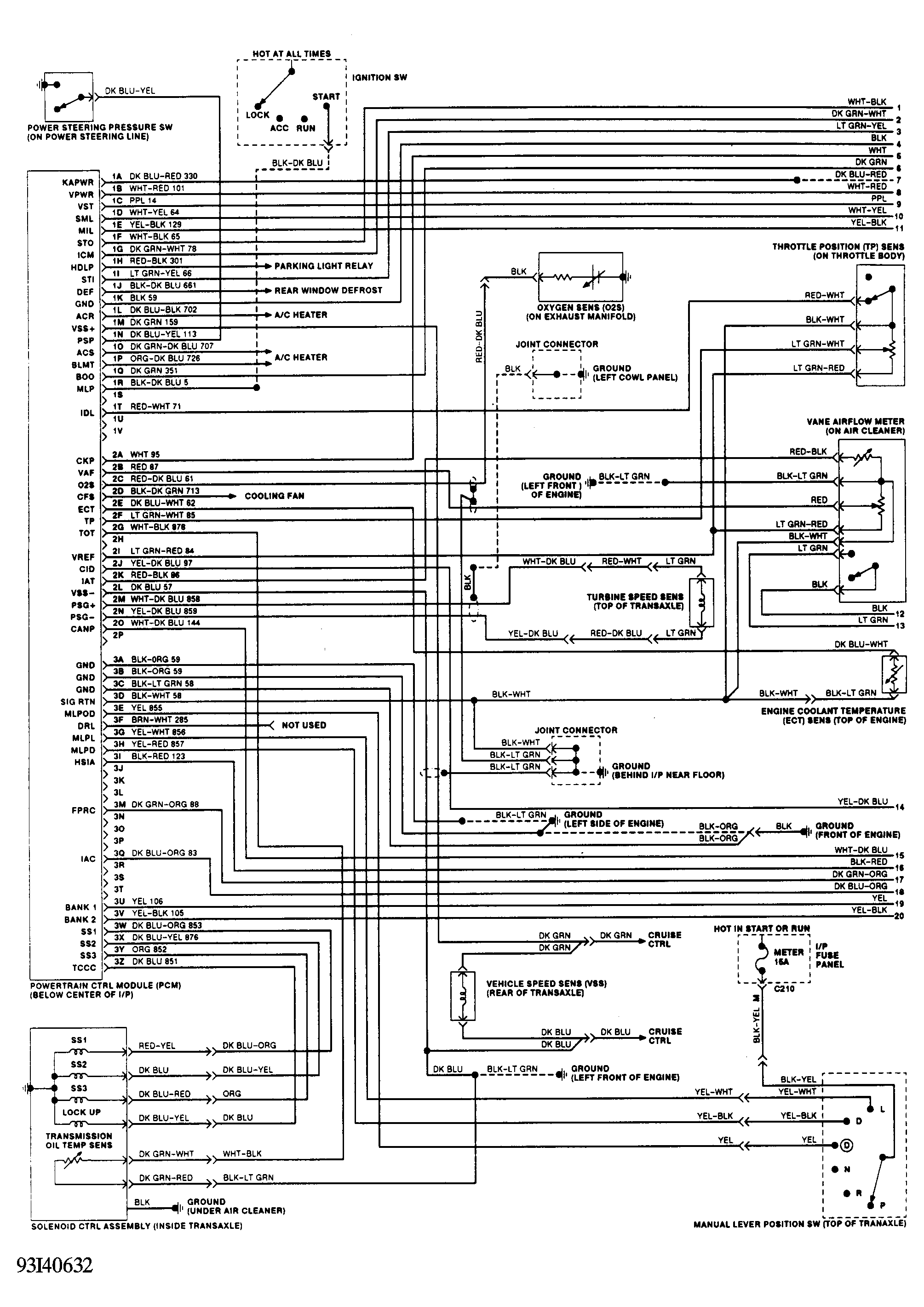

Fig 2: EEC Wiring Diagram (Escort/Tracer 1.8L A/T - 2 of 2)
