Data Link Connector: Locations

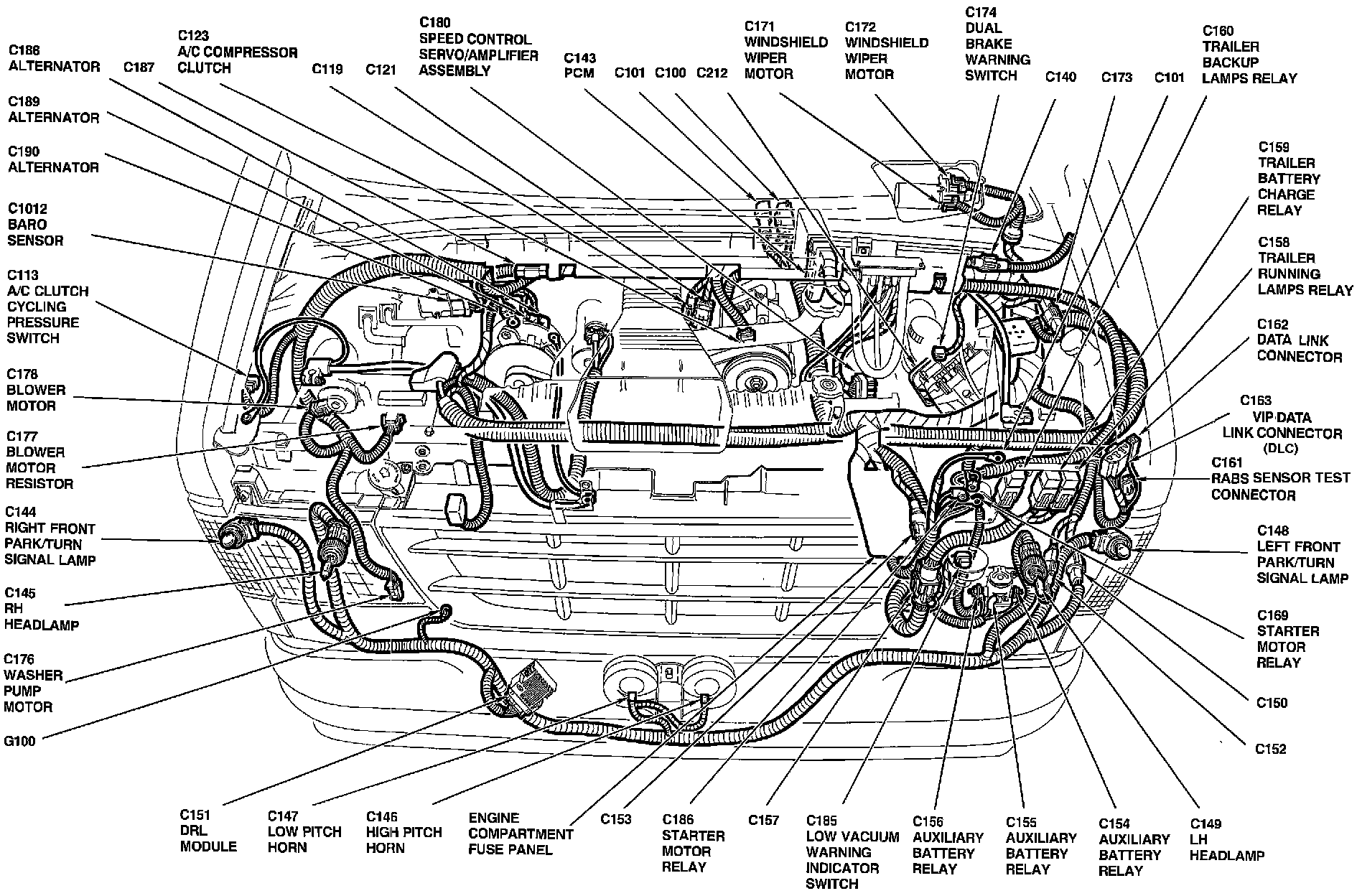

Component Locations:





The Data Link Connector (DLC), connector numbers C-162 and C-163, are located on the left side of the engine compartment, near the park/turn lamp.
