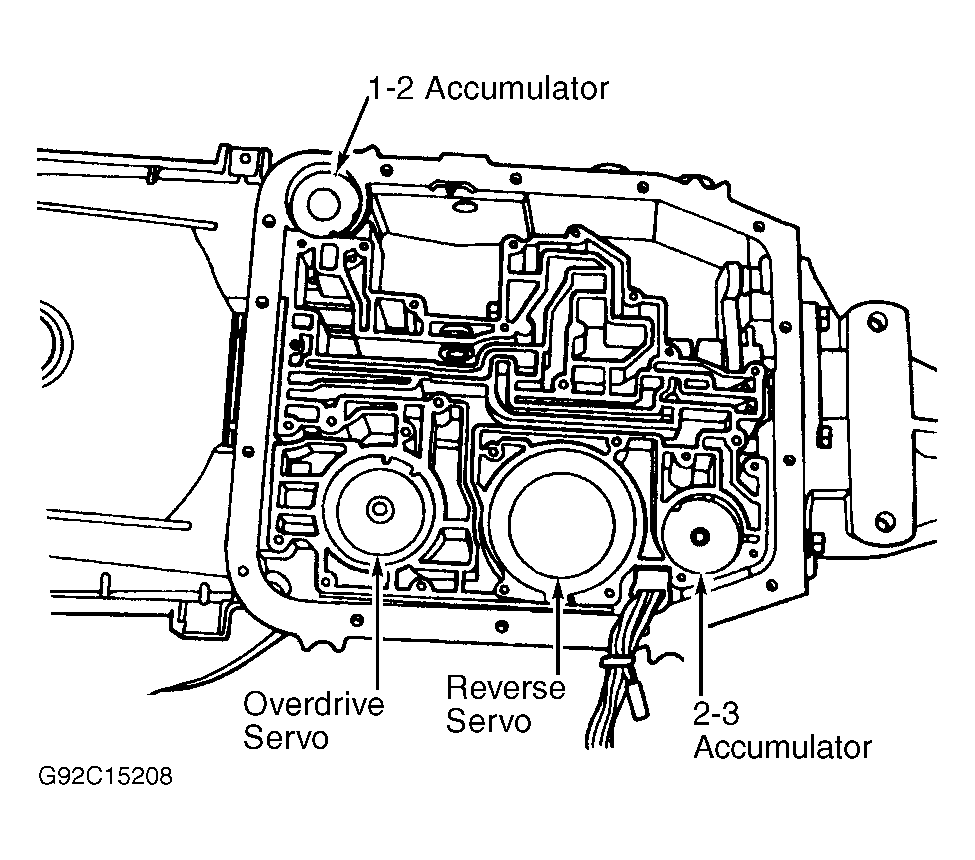

Overdrive Servo Assembly: Installation
- Using ATF, lubricate overdrive servo pocket in trans-mission case. Assemble spring to piston. Install assembly into case pocket. Ensure servo rod contacts overdrive band apply pocket.
- Using remover/replacer, depress piston and install retaining ring. See Fig 2. Install valve body. To complete installation, reverse removal procedure.
