Accelerator Cable Diagnostic Procedure (95-1-2)

Publication date: 1995-01-16
Reference number: 95-1-2

ACCELERATOR CABLE DIAGNOSTIC PROCEDURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 95-1-2, Date of Issue: January 16, 1995

Model(s): Ford: 1993-94 Tempo

1993-95 Crown Victoria, Mustang, Taurus, Thunderbird

Lincoln-Mercury: 1993-94 Topaz

1993-95 Continental, Cougar, Grand Marquis, Mark VIII, Sable, Town Car

Bulletin No.: 95-1-2

Date: January 16, 1995

Determine if an accelerator cable is functioning properly.

The following diagnostic charts are to be used in conjunction with the appropriate Service Manual, section 10-02.

WARRANTY STATUS: Information Only

OASIS CODES: 404000

SECTION 10-02: ACCELERATOR PEDAL AND LINKAGE

ACCELERATOR AND THROTTLE BODY DIAGNOSIS

CONDITION	POSSIBLE SOURCE	ACTION
Accelerator pedal is hard to push down or has a rough, raspy orsticky feel.	Full pedal travel is restricted. Worn or damaged cable. Restricted pedal operation.	Go to TEST A .
High engine idle speed.	Cable ball socket extends beyond the throttle lever ball stud when cable is disconnected from throttle lever. Restricted foot pedal operation. Worn or damaged cable.	Refer to the throttle body diagnosis procedure in the appropriate section of the Powertrain Control/ Emissions Diagnosis Manual. Adjust carpet, floor mat or wiring as required. Go to TEST C.

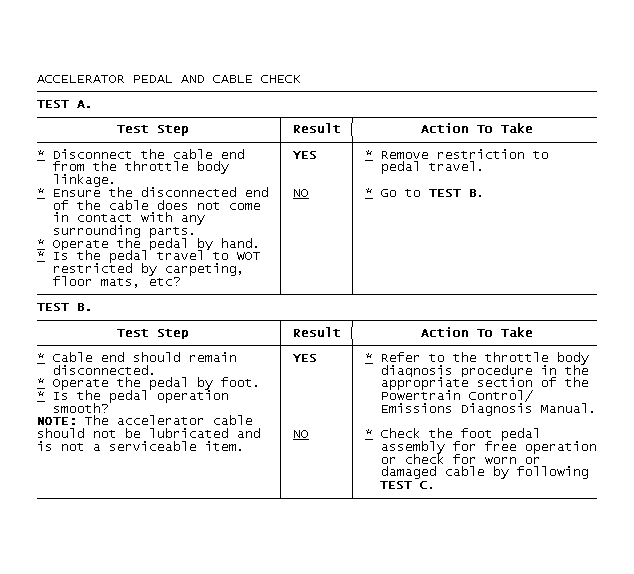

Fig 1: ACCELERATOR PEDAL AND CABLE CHECK

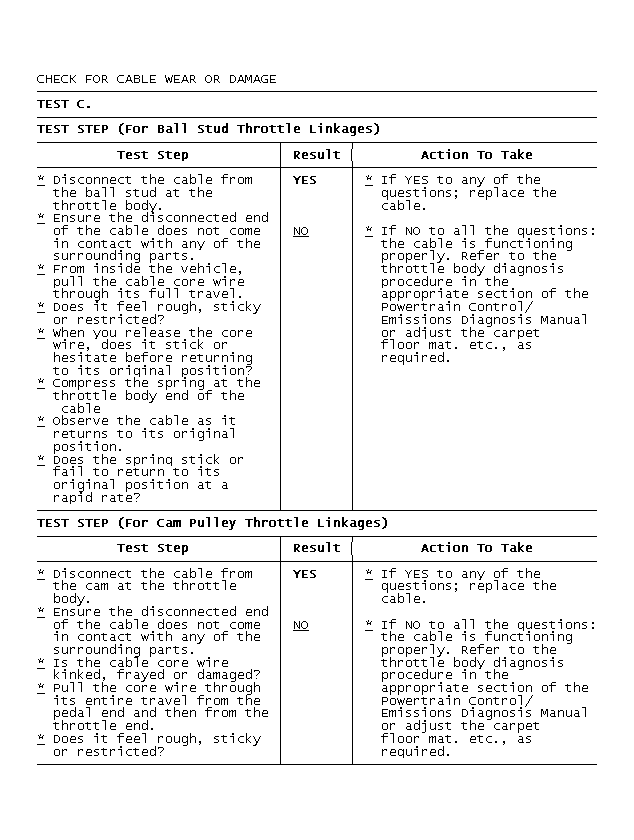

Fig 2: CHECK FOR CABLE WEAR OR DAMAGE
