Pinpoint Tests: Notes

Pinpoint tests can be performed for problem areas of instrument cluster. Use pinpoint index to determine proper test. Note instrument cluster wiring connector and pin identification before performing pinpoint tests. See Fig 1 -Fig 3 .

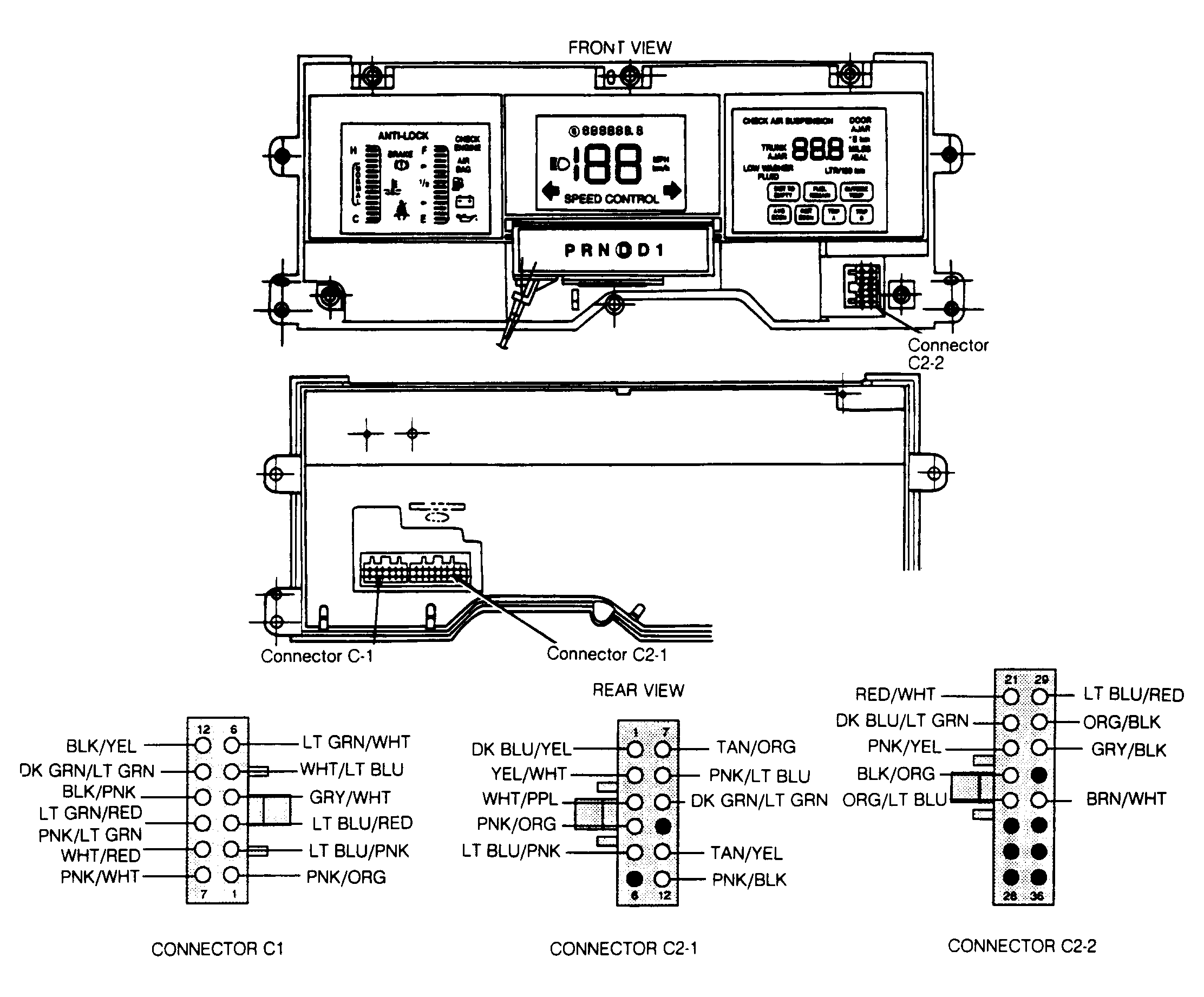

Fig 1: Electronic Instrument Cluster Terminal ID
G92C04966Courtesy of FORD MOTOR CO.

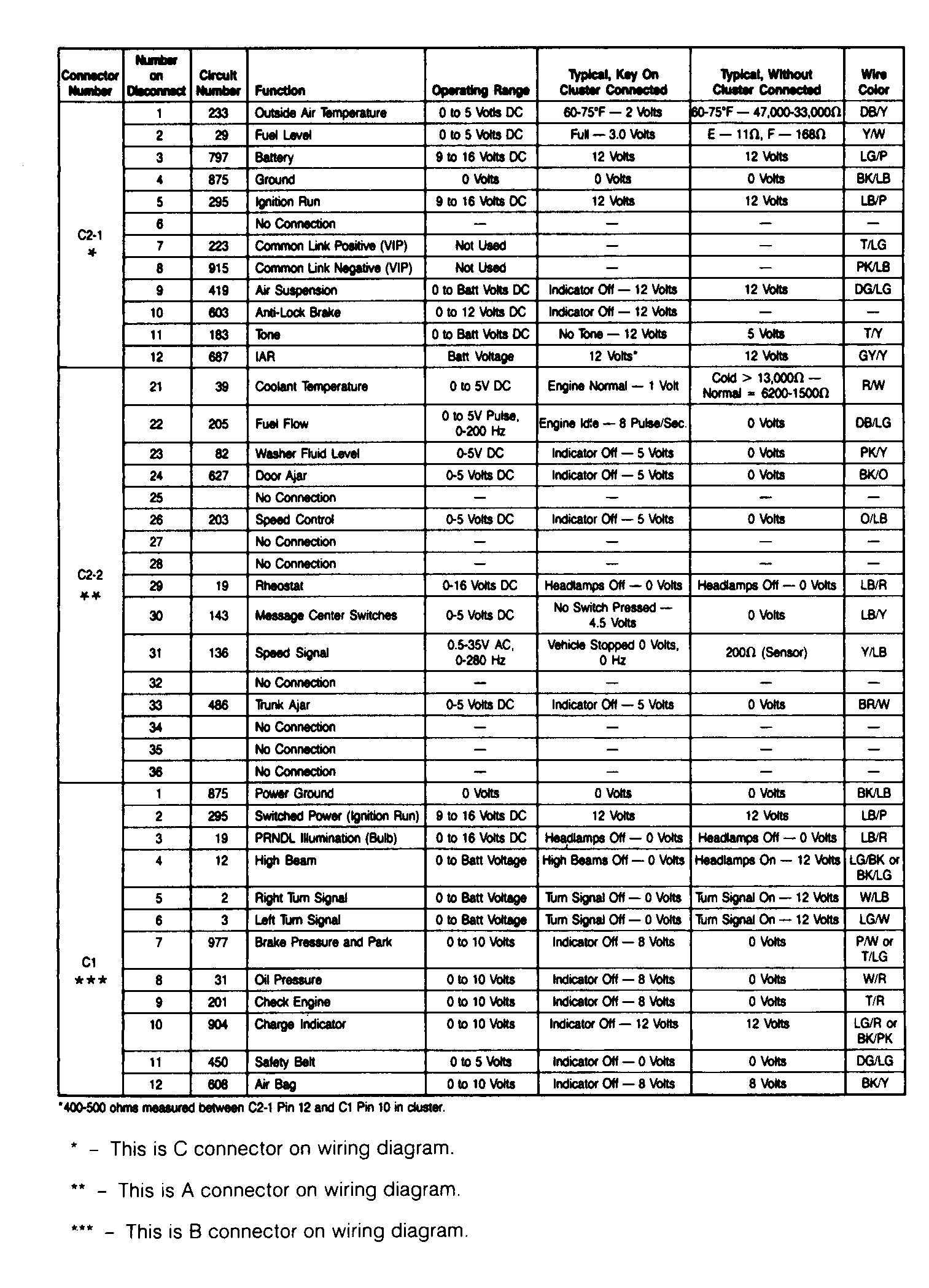

Fig 2: Determining Electronic Instrument Cluster Terminal Voltages
G91F07278Courtesy of FORD MOTOR CO.

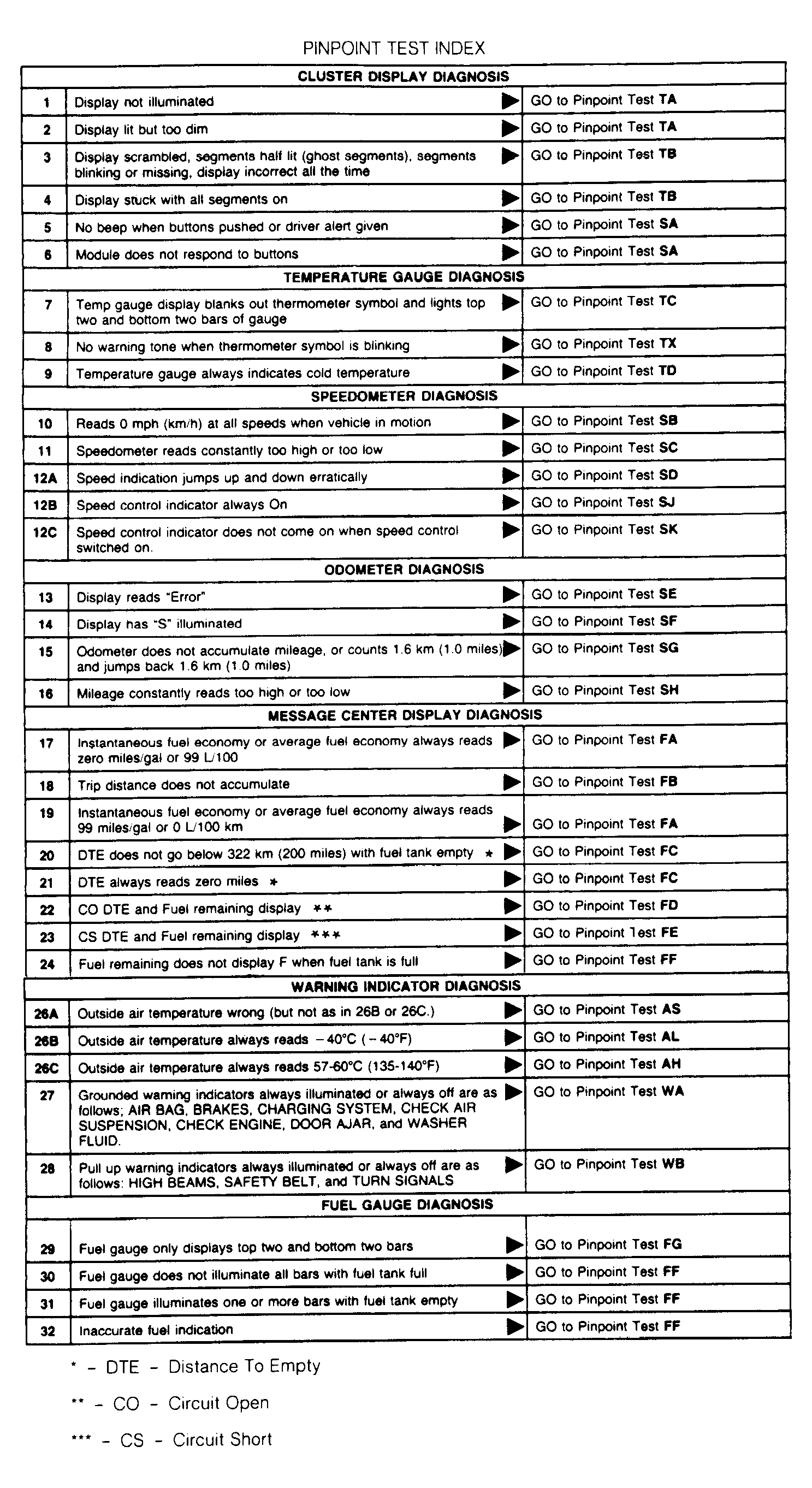

Fig 3: Pinpoint Test Index
G91G11805Courtesy of FORD MOTOR CO.
