Aerostar Van Cargo Extended, 3.0 U, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - 3.0L
>>
Diagnostic Trouble Code Reference Charts (3-Digit)
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Trouble Code Reference Charts (3-Digit): Notes

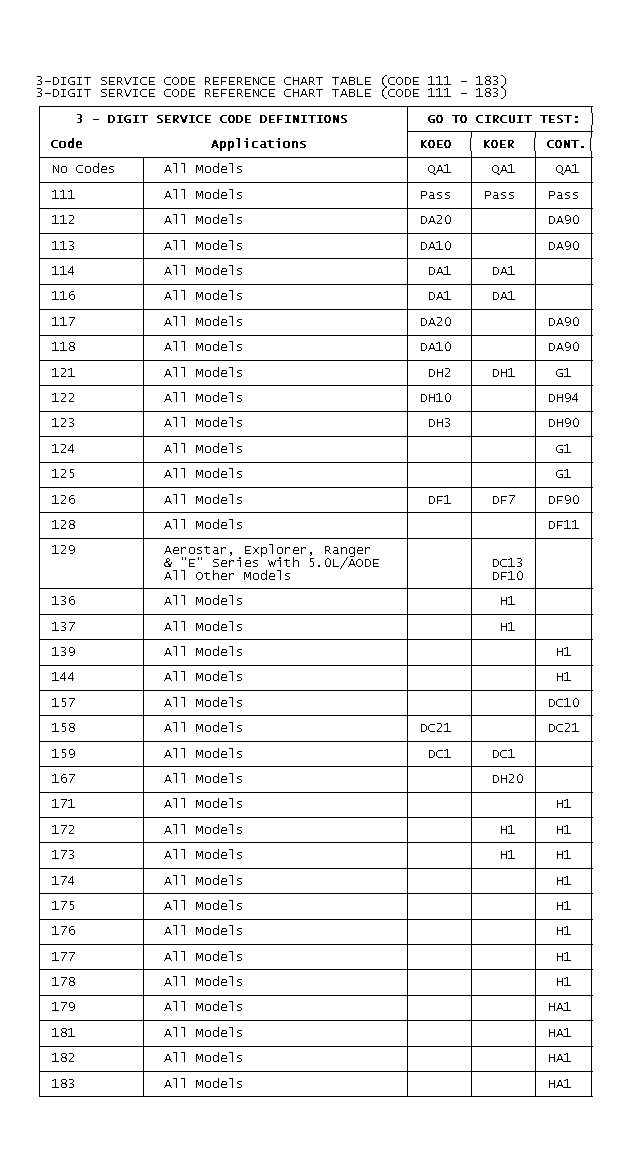

Fig 1: DIAGNOSTIC TROUBLE CODE CHART (CODE 111 - 183)

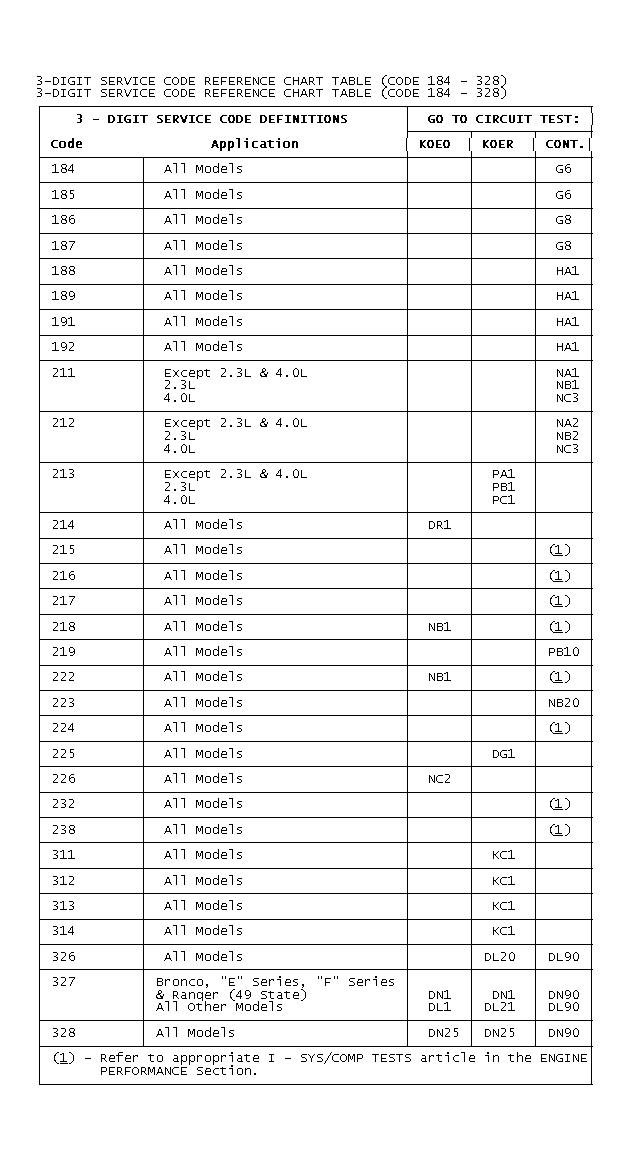

Fig 2: DIAGNOSTIC TROUBLE CODE CHART (CODE 184 - 328)

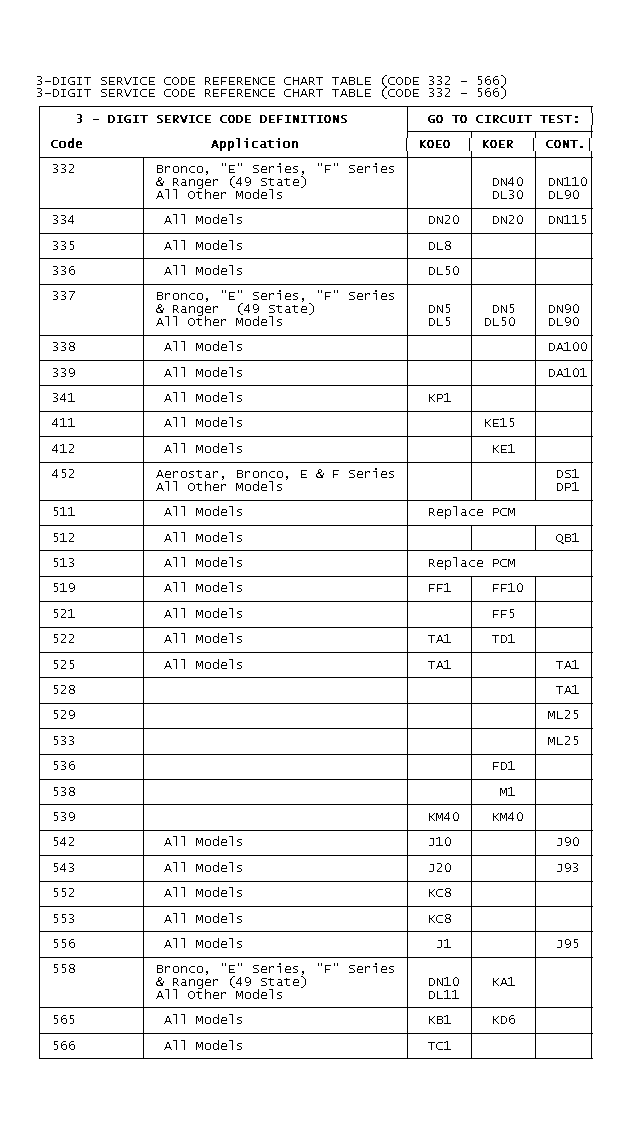

Fig 3: DIAGNOSTIC TROUBLE CODE CHART (CODE 332 - 566)

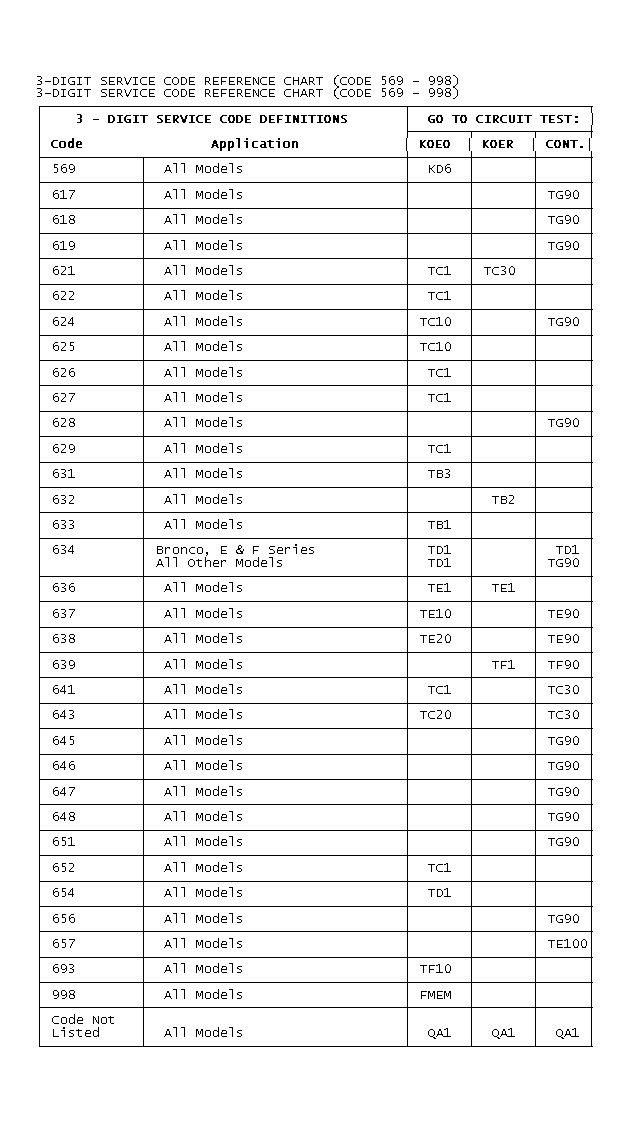

Fig 4: DIAGNOSTIC TROUBLE CODE CHART (CODE 569 - 998)
