Engine Control Module

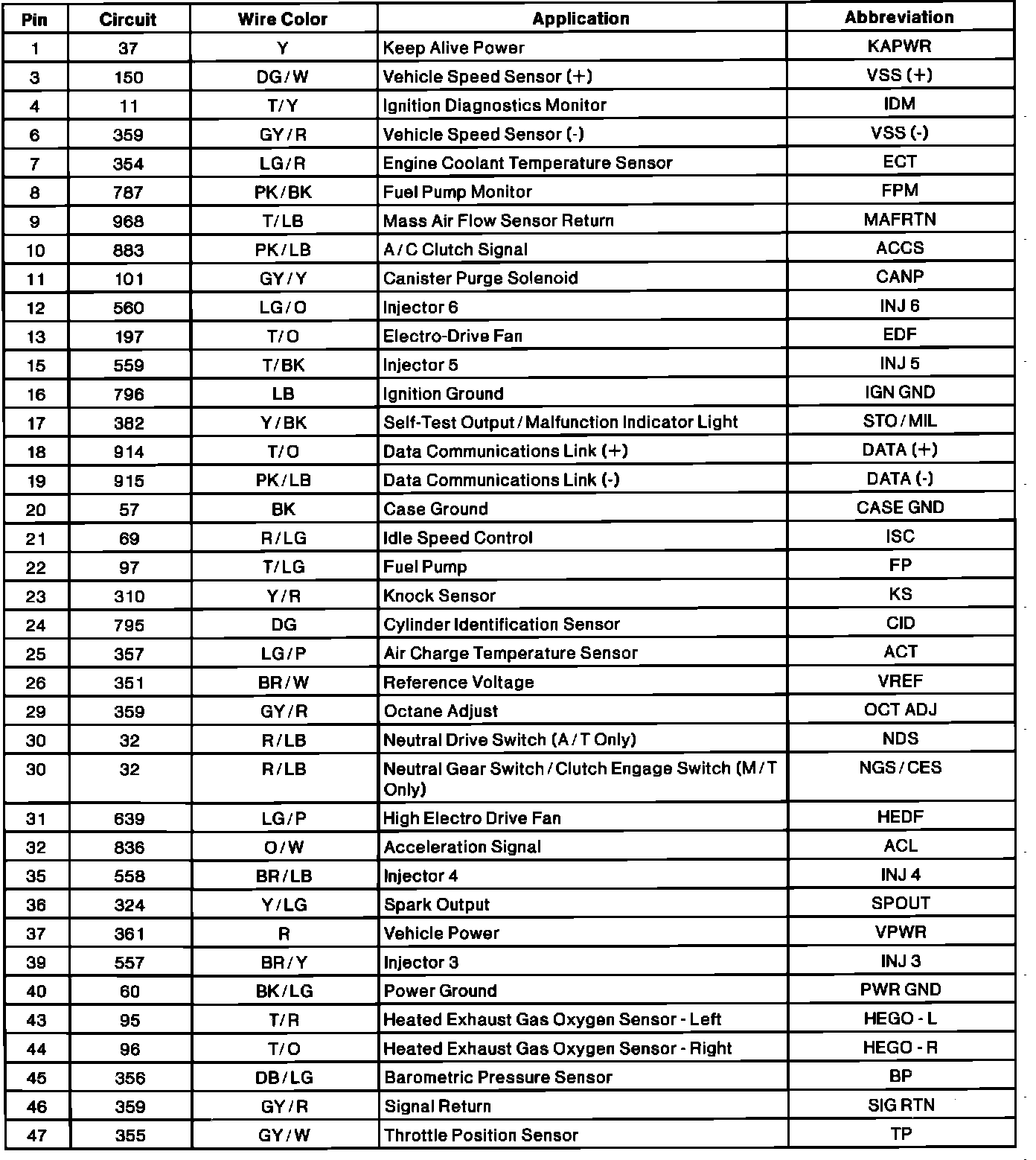

Electronic Engine Controller Connector Pinout:

Electronic Engine Controller Connector Pinout:
